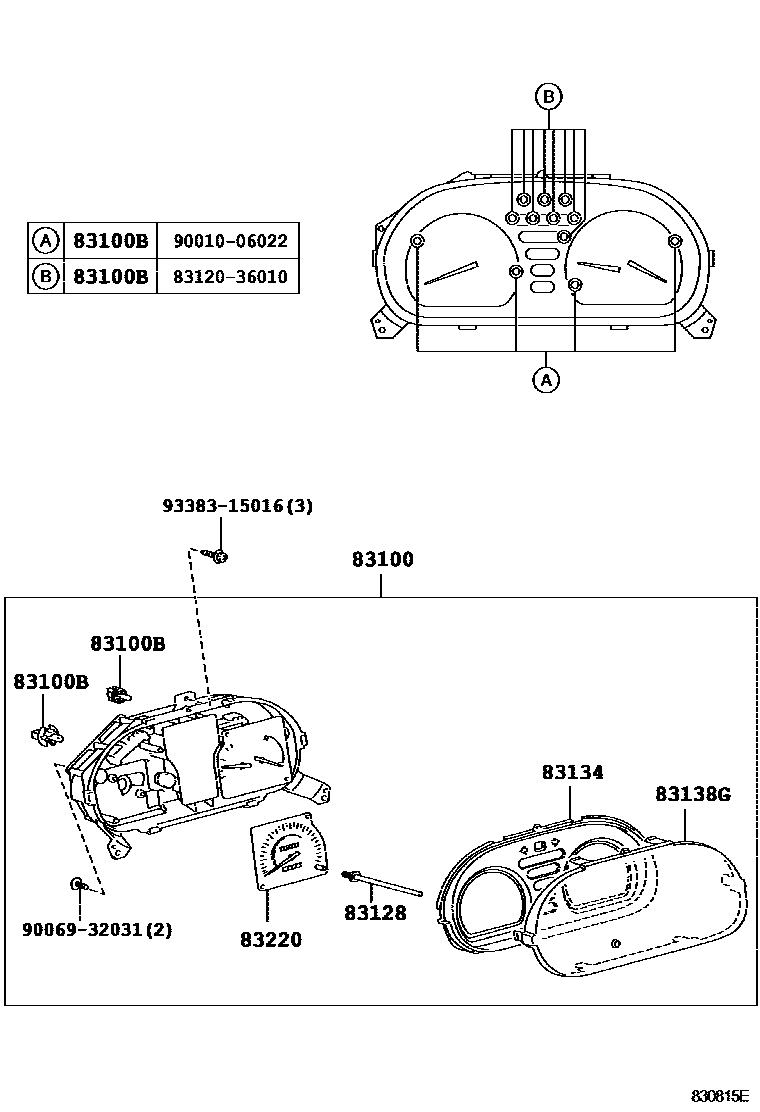

83100METER ASSY, COMBINATION

main83800-0W280iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main83800-0W740iWU302,342..DCRTP,DCRTR200912-201708

main83800-37700iXZU300,320,330,340200212-200610

main83800-37810iBU303,343..GEN200212-200610

W(TACHOMETER)

main83800-37820iBU303,343..GEN200212-200610

W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)

main83800-37830iBU300,340200212-200312

main83800-37860iWU300,340..GCC200212-200610

W(TACHOMETER)

main83800-37890iWU300,340..GCC200212-200610

main83800-37B20iXZU305,345200312-200507

main83800-37B21iXZU305,345200508-200610

main83800-37D20iXZU307,327,337,347200610-200901

main83800-37D50iWU300,340..SA200802-200812

W(TACHOMETER)

main83800-37D60iWU300,340..SA200802-200812

main83800-37D70iWU300,340..GCC200610-201106

W(TACHOMETER)

main83800-37D80iWU300,340..GCC200610-201106

main83800-37E10iWU30#,34#..GEN200610-201106

W(TACHOMETER)

main83800-37E20iWU30#,34#..GEN200610-200908

W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)

main83800-37E50iWU30#,34#..GEN200610-201106

main83800-37E60iWU30#,34#..GEN200610-201106

W(SPEED METER---MILE/H & KM/H)

main83800-3V051iWU300,340..SA200304-200802

main83800-3V060iBU303,343..GEN200212-200610

main83800-3V070iBU303,343..GEN200212-200610

W(SPEED METER---MILE/H & KM/H)

main83800-F1010iWU302,342,352201708

main83800-F1030iXZU349..5F;XZU309,359..IV1,IV8202203-202310

YAZAKI

83100BBULB, COMBINATION METER, NO.1

main83120-0B020iWU302,342..DCRTP,DCRTR200912-201708

12V3.4W,W(GREEN CAP)

main83120-36010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

24V 1.4W,W(SOCKET)

main83120-60020iWU302,342..DCRTP,DCRTR200912-201708

12V 1.4W,W(SOCKET)

main90010-06022iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

24V 3W,W(GREEN CAP)

83128KNOB, TRIP COUNTER

main83224-0W280iWU302,342..DCRTP,DCRTR200912-201708

83134COVER, COMBINATION METER, NO.1

main83821-0W280iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main83821-37610iBU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW200212-200610

83138GGLASS, COMBINATION METER

main83852-0W280iWU302,342..DCRTP,DCRTR200912-201209

main83852-0W740iWU302,342201209-201708

main83852-37250iXZU305,345200508-200610

main83852-F1010iXZU349..5F;XZU309,359..IV1,IV8202203-202310

83220SPEEDOMETER ASSY

main83220-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main83220-0W020iWU302,342..DCRTP,DCRTR200912-201708

9006932031

main90069-32031

9338315016

main93383-15016
