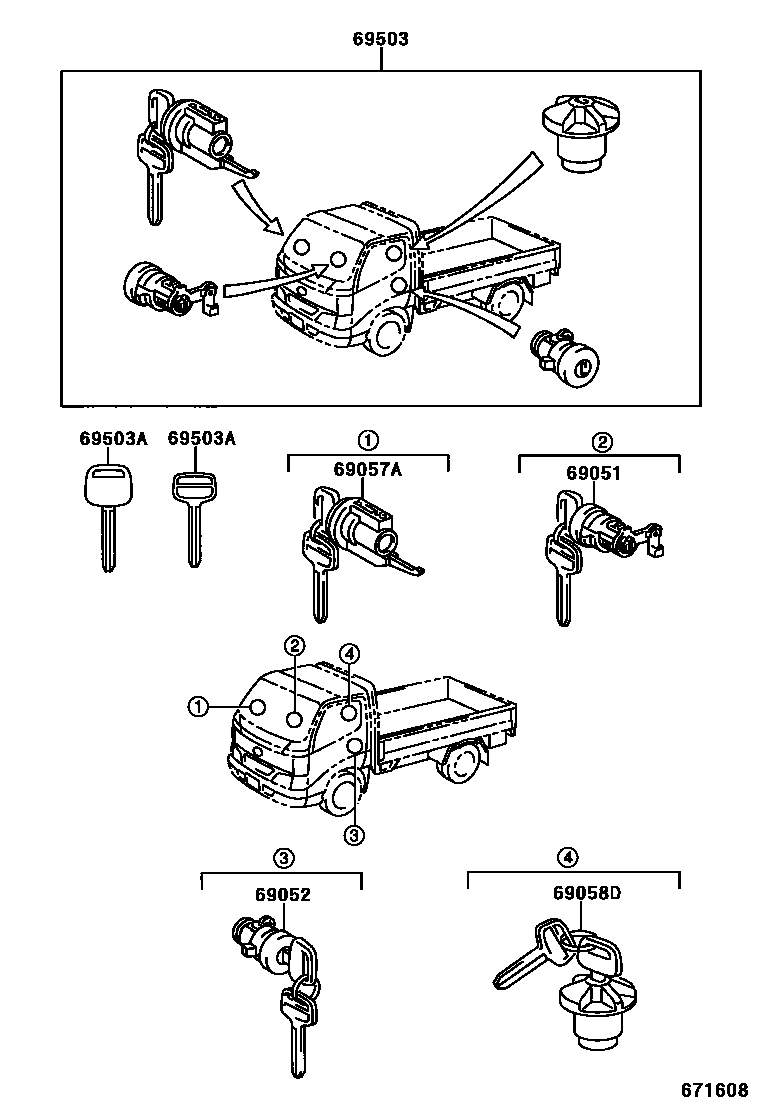

Toyota DYNA — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-37060i200010-200206

main69051-37080i200010-200206

HINO

main69051-37090i200010-200206

DAIHATSU

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-37100i200010-200206

main69052-37120i200010-200206

HINO

main69052-37130i200010-200206

DAIHATSU

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37110i200010-200206

main69057-37120i200010-200206

HINO

main69057-37130i200010-200206

DAIHATSU

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-37050i200010-200206

W(SUB FUEL TANK)

main69058-37080i200010-200206

HINO; W(SUB FUEL TANK),HINO

main69058-37090i200010-200206

DAIHATSU; W(SUB FUEL TANK),DAIHATSU

69503CYLINDER SET, LOCK

main69005-37010i200010-200206

main69005-37080i200010-200206

HINO

main69005-37130i200010-200206

DAIHATSU

main69005-37280i200010-200206

W(SUB FUEL TANK)

main69005-37290i200010-200206

W(SUB FUEL TANK),HINO

main69005-37300i200010-200206

W(SUB FUEL TANK),DAIHATSU

69503AKEY, BLANK

main90999-00185i200010-200206

MASTER KEY,W(*68)

main90999-00186i200010-200206

MASTER KEY

main90999-00222i200010-200206

MASTER KEY,W(*68),DAIHATSU

main90999-00223i200010-200206

MASTER KEY,DAIHATSU

main90999-00224i200010-200206

MASTER KEY,W(*68),HINO

main90999-00225i200010-200206

MASTER KEY,HINO

6 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota DYNA

This section contains 6 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota DYNA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL TANK FILLER, CYLINDER SET, LOCK.
