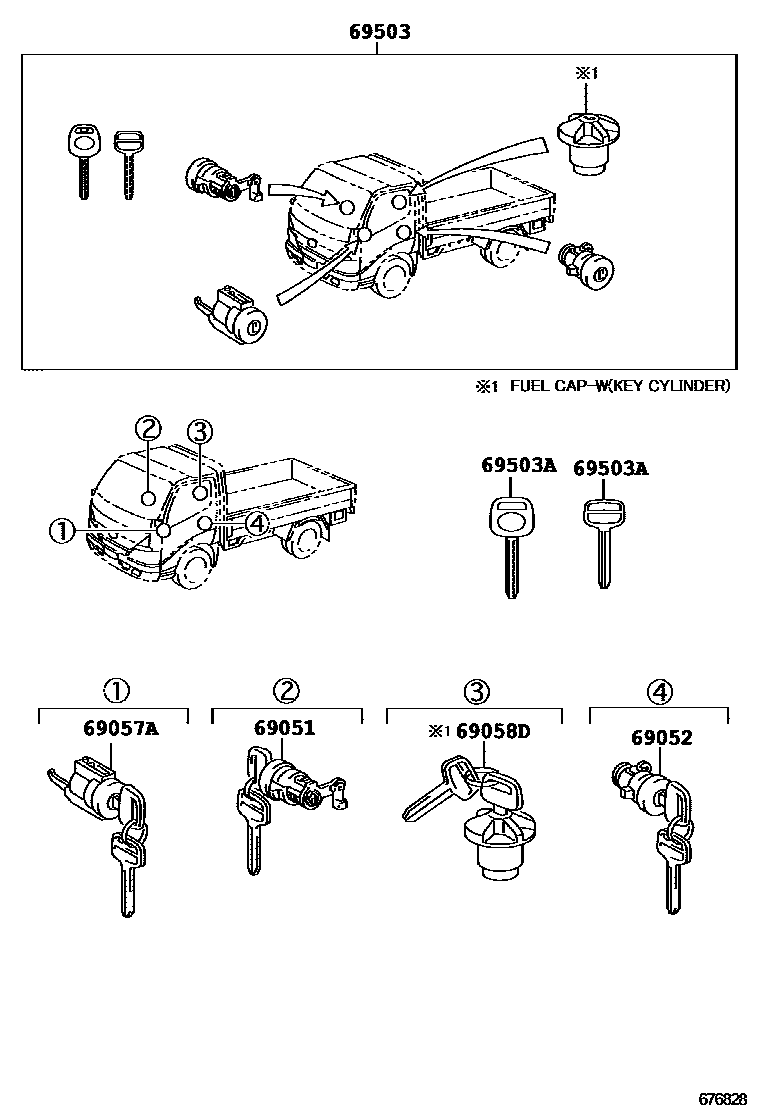

Toyota DYNA — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-37060iXZU600..GCC;WU600,650,XZU650201107-202005

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-37100iXZU600..GCC;WU600,650,XZU650201107-202005

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37240iXZU600..GEN201107-202005

69058DCYLINDER & KEY SET, FUEL TANK FILLER

69503CYLINDER SET, LOCK

main69005-37C70iWU600,650,XZU600,650201107-201606

CUT KEY 2 PIECES

sub69005-37C71

main69005-37C71iXZU600..GCC;WU600,650,XZU650201607-202005

CUT KEY 2 PIECES

69503AKEY, BLANK

main69515-37120iWU600,650,XZU600,650201603-201607

MASTER KEY,W(*68)

sub90999-00185

main69515-37130iWU600,650,XZU600,650201603-201607

MASTER KEY

sub90999-00186

main90999-00185iXZU600..GCC;WU600,650,XZU650201607-202005

MASTER KEY,W(*68),FUEL CAP-WITH KEY CYLINDER

main90999-00185iWU600,650..WT..IV3;WU600,650..GEN..CBU;WU600..ST..GEN..IV3201107-202005

MASTER KEY,W(*68)

main90999-00185iXZU600..GCC;WU600,650,XZU650201607-202005

MASTER KEY,W(*68),CKD PACKAGE&FUEL CAP-WITH KEY CYLINDER

main90999-00186iXZU600..GEN201107-202005

MASTER KEY

main90999-00186iXZU600..GCC;WU600,650,XZU650201607-202005

MASTER KEY,CKD PACKAGE&FUEL CAP-WITH KEY CYLINDER

main90999-00186iXZU600..GCC;WU600,650,XZU650201607-202005

MASTER KEY,FUEL CAP-WITH KEY CYLINDER

6 parts on this diagram · 1 diagram in section
