Toyota DYNA — LOCK CYLINDER SET

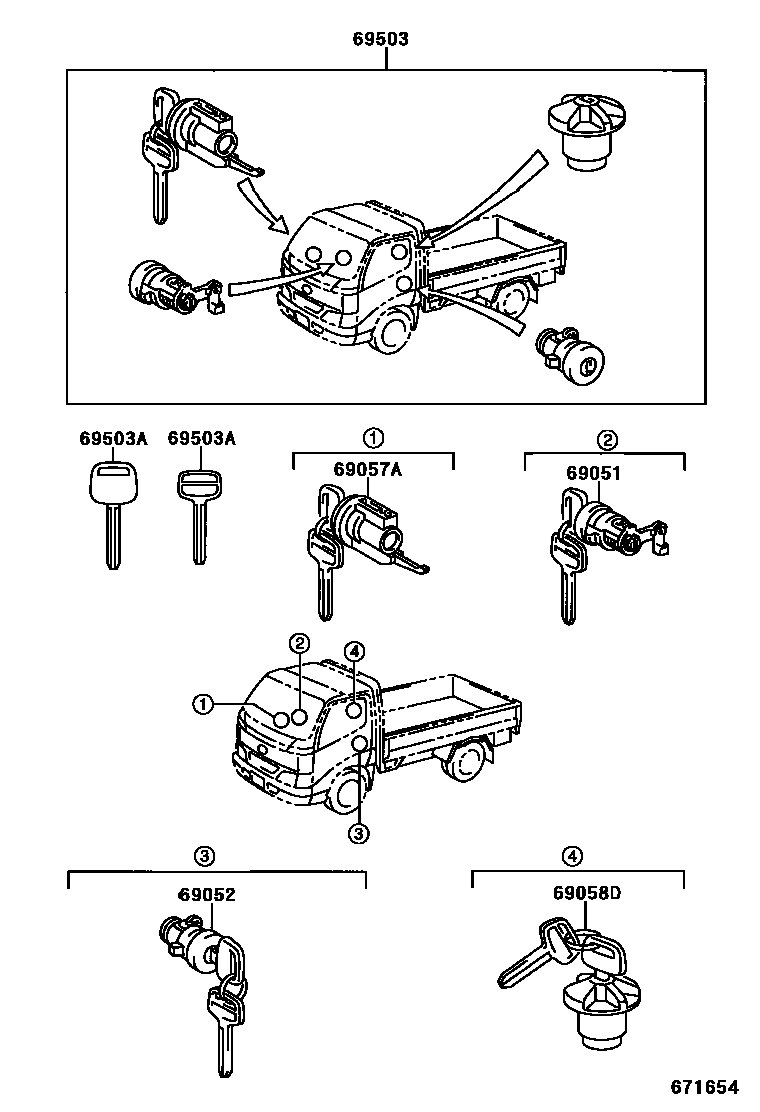

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-37060i200010-200206
DYNA OR TOYOACE
main69051-37070i199907-200212
main69051-37080i200010-200206
DUTRO
main69051-37090i200010-200206
DELTA
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-37100i200010-200206
DYNA OR TOYOACE
main69052-37110i199907-200212
main69052-37120i200010-200206
DUTRO
main69052-37130i200010-200206
DELTA
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-37070i200010-200206
DYNA OR TOYOACE
main69057-37080i199907-200212
main69057-37090i200010-200206
DUTRO
main69057-37100i200010-200206
DELTA
69058DCYLINDER & KEY SET, FUEL TANK FILLER
main69058-37010×2i199907-200212
W(FUEL SUB TANK)
main69058-37050×2i200010-200206
DYNA OR TOYOACE; W(FUEL SUB TANK),DYNA OR TOYOACE
main69058-37080i200010-200206
DUTRO; W(FUEL SUB TANK),DUTRO
main69058-37090×2i200010-200206
DELTA; W(FUEL SUB TANK),DELTA
69503CYLINDER SET, LOCK
main69005-37010i200010-200206
DYNA OR TOYOACE
main69005-37060i199907-200212
main69005-37070i199907-200212
W(FUEL SUB TANK)
main69005-37080i200010-200206
DUTRO
main69005-37130i200010-200206
DELTA
main69005-37280i200010-200206
W(FUEL SUB TANK),DYNA OR TOYOACE
main69005-37290i200010-200206
W(FUEL SUB TANK),DUTRO
main69005-37300i200010-200206
W(FUEL SUB TANK),DELTA
69503AKEY, BLANK
main90999-00185i199907-200212
MASTER KEY,W(*68),DYNA OR TOYOACE
main90999-00186i199907-200212
MASTER KEY,DYNA OR TOYOACE
main90999-00222i200010-200206
MASTER KEY,W(*68),DELTA
main90999-00223i200010-200206
MASTER KEY,DELTA
main90999-00224i200010-200206
MASTER KEY,W(*68),DUTRO
main90999-00225i200010-200206
MASTER KEY,DUTRO

6 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota DYNA

This section contains 6 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota DYNA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL TANK FILLER, CYLINDER SET, LOCK.
