Toyota DYNA — INTERIOR LAMP

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-37030i200010-200206

81205BBULB, ASH RECEPTACLE LAMP

main90981-11022i200010-200206

24V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81580-37050-B0i200010-200206

MD.CHARCOAL,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11053i200010-200206

100V 8W

81240DLAMP ASSY, ROOM, NO.2

main81240-37060-B0i200010-200206

MD.CHARCOAL,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-12032×2i200010-200206

24V 8W

81241LENS, ROOM LAMP, NO.1

main81241-37020i200010-200206

81241ALENS, ROOM LAMP, NO.2

main81241-95J08i200010-200206

81261LENS AND COVER, MAP LAMP

main81245-95J07-B3i200010-200206

MD.CHARCOAL,TRIM1#

81365AKNOB, ROOM LAMP SWITCH

main81365-37010-B1i200010-200206

MD.CHACOAL,TRIM1#

81952CCOVER, REAR LAMP

main81952-37020i200010-200206

9016460028

main90164-60028

9356016012

main93560-16012

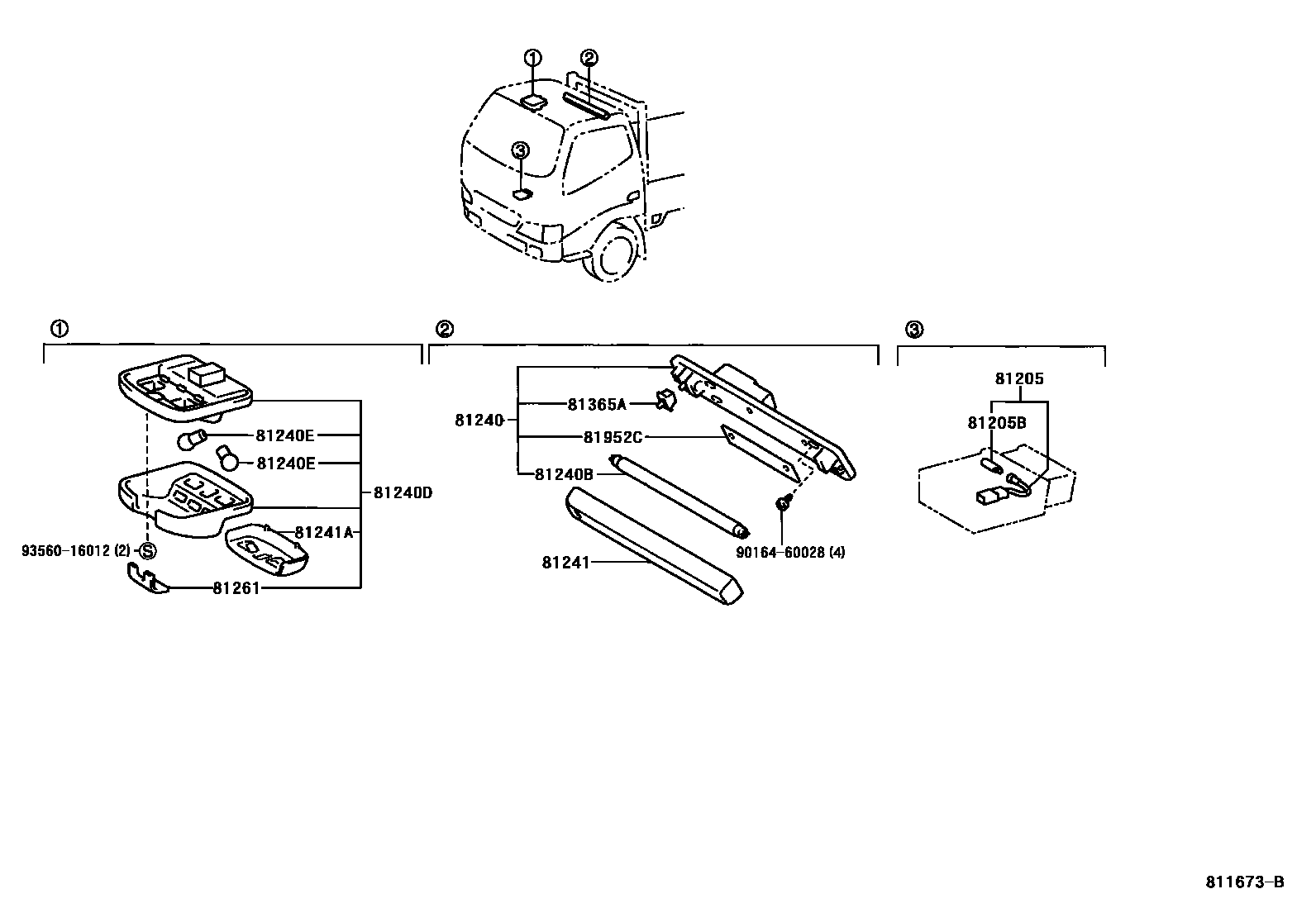

13 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota DYNA

This section contains 13 genuine Toyota parts for the INTERIOR LAMP system of the Toyota DYNA. Key components include: LAMP SUB-ASSY, ASH RECEPTACLE, BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
