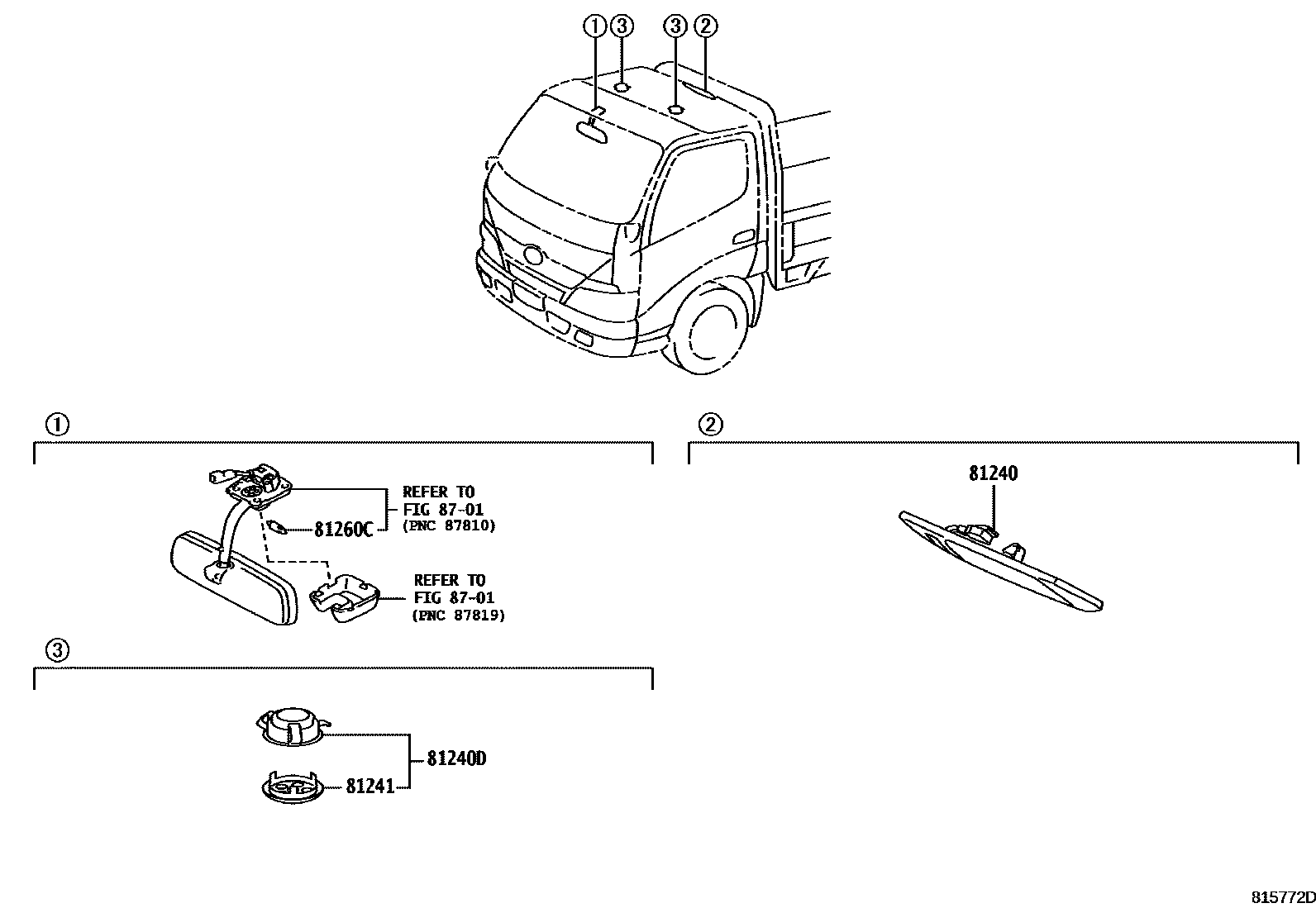

Toyota DYNA — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-37100-B0i201107-202005

ROOM LAMP-WITH(LED LAMP),GRAY,TRIM1#

81240DLAMP ASSY, ROOM, NO.2

main81240-E0021×2i201911-202304

ROOM LAMP-WITH(LED LAMP)

main81240-E0170×2i202305

ROOM LAMP-WITH(LED LAMP)

81241LENS, ROOM LAMP, NO.1

main81241-E0040×2i201911-202305

ROOM LAMP-WITH(LED LAMP)

main81241-E0050×2i202305

ROOM LAMP-WITH(LED LAMP)

81260CBULB(FOR MAP LAMP)

main90981-16019i201107-202005

24V 10W

8701MIRROR

→ Go to FIG 87-01

5 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota DYNA

This section contains 5 genuine Toyota parts for the INTERIOR LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, ROOM, NO.1, LAMP ASSY, ROOM, NO.2, LENS, ROOM LAMP, NO.1, BULB(FOR MAP LAMP), MIRROR.
