EPC Data

Toyota DYNA — INTERIOR LAMP

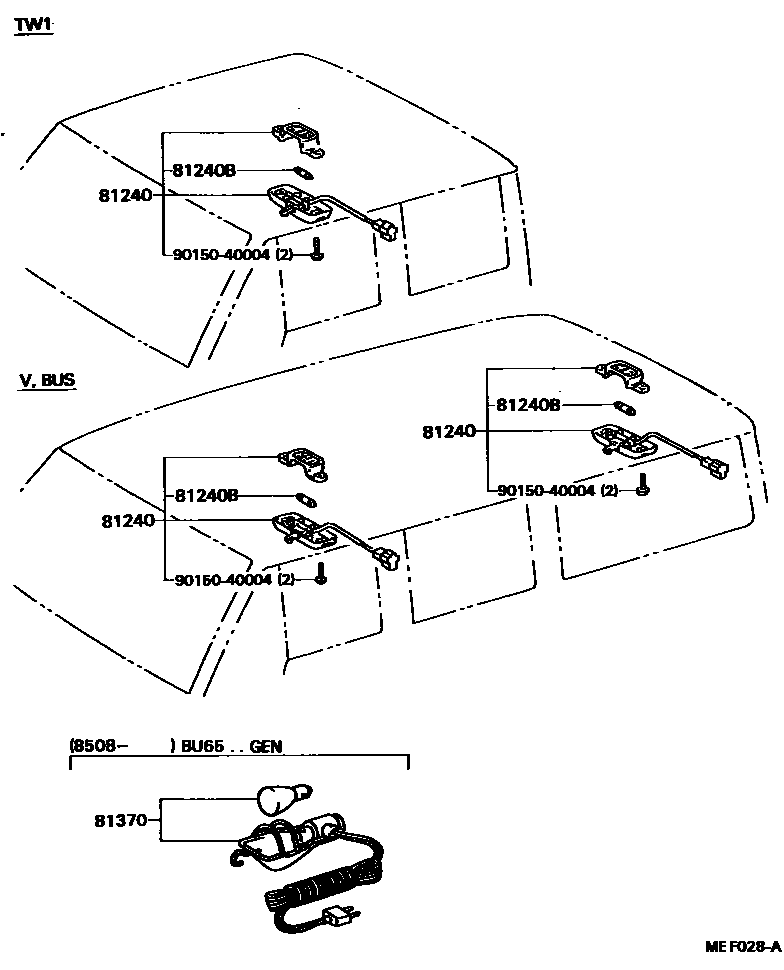

Parts diagram
81240LAMP ASSY, ROOM, NO.1
main81240-95401i198409-198708
CHINA SPEC
main81240-95A04i198409-198708
81240BBULB, ROOM LAMP, NO.1
main90981-11004i198409-198708
12V 10W,12V 10W
main90981-16019i198409-198708
24V 10W,24V 10W,CHINA SPEC
81370LAMP ASSY, INSPECTION
main81370-95402i198508-198708
9015040004
main90150-40004

4 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota DYNA

This section contains 4 genuine Toyota parts for the INTERIOR LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, INSPECTION.
