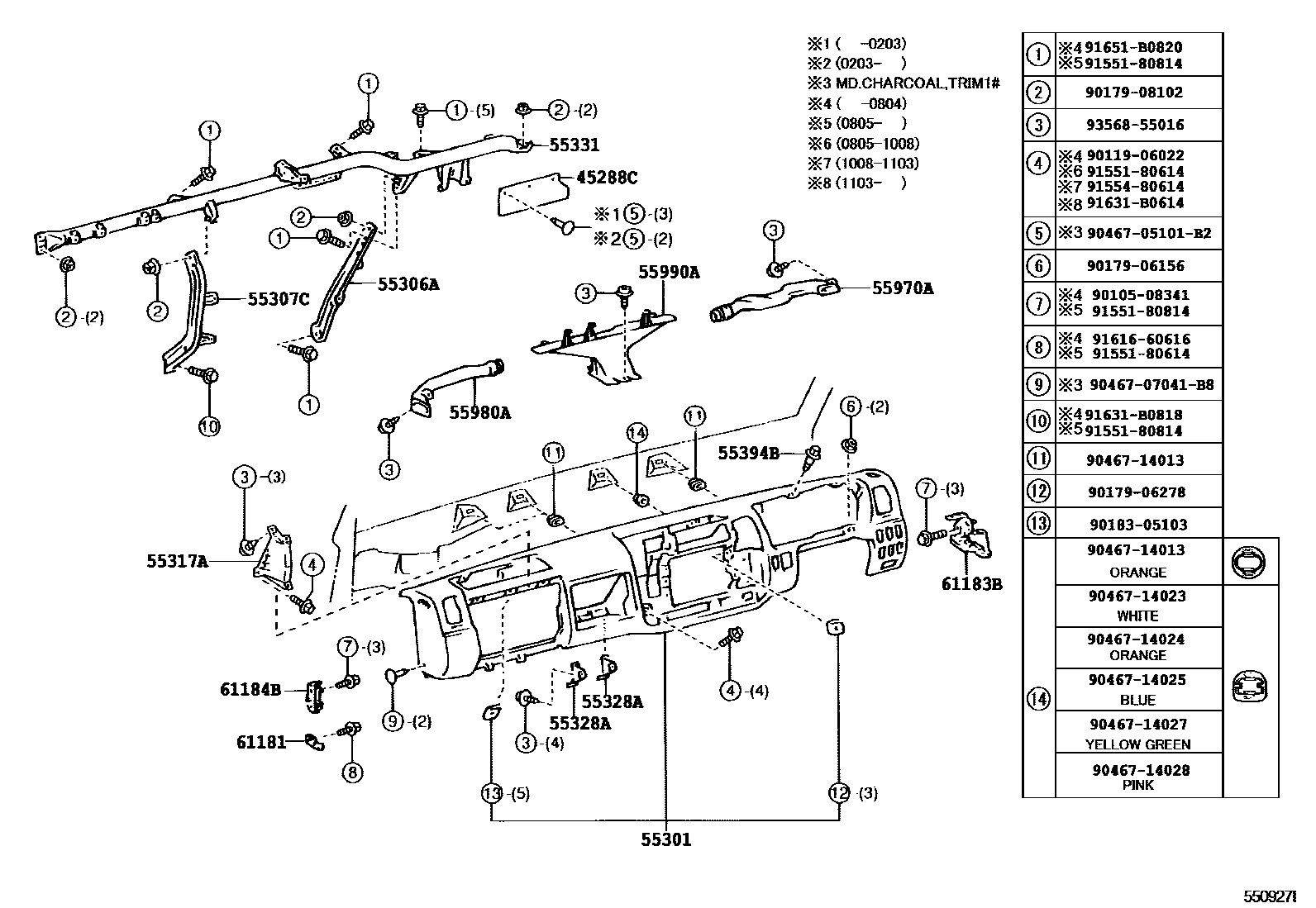

Toyota DYNA — INSTRUMENT PANEL & GLOVE COMPARTMENT
45288CPLATE, STEERING COLUMN COVER
55301PANEL SUB-ASSY, INSTRUMENT
MD.CHARCOAL,TRIM1#
MD.CHARCOAL,TRIM1#
MD.CHARCOAL,TRIM1#
MD.CHARCOAL,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
main55317-37020iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208
55328ASTAY, INSTRUMENT PANEL, NO.3
55331REINFORCEMENT, INSTRUMENT PANEL
55394BBOLT, INSTRUMENT PANEL
main55394-37010×4iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208
55970ADUCT ASSY, SIDE DEFROSTER, RH
55980ADUCT ASSY, SIDE DEFROSTER, LH
55990ANOZZLE ASSY, DEFROSTER, LOWER
61181BRACKET, INSTRUMENT PANEL SIDE
61183BBRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61184BBRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
9010508341
main90105-08341
9011906022
main90119-06022
9017906156
main90179-06156
9017906278
main90179-06278
9017908102
main90179-08102
9018305103
main90183-05103
9046705101B2
main90467-05101B2
9046707041B8
main90467-07041B8
9046714013
main90467-14013
9046714023
main90467-14023
9046714024
main90467-14024
9046714025
main90467-14025
9046714027
main90467-14027
9046714028
main90467-14028
9155180614
main91551-80614
9155180814
main91551-80814
9155480614
main91554-80614
9161660616
main91616-60616
91631B0614
main91631-B0614
91631B0818
main91631-B0818
91651B0820
main91651-B0820
9356855016
main93568-55016
36 parts on this diagram · 4 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota DYNA
This section contains 82 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota DYNA. Key components include: PLATE, STEERING COLUMN COVER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, PANEL, INSTRUMENT SIDE, RH.
