Toyota DYNA — INSTRUMENT PANEL & GLOVE COMPARTMENT

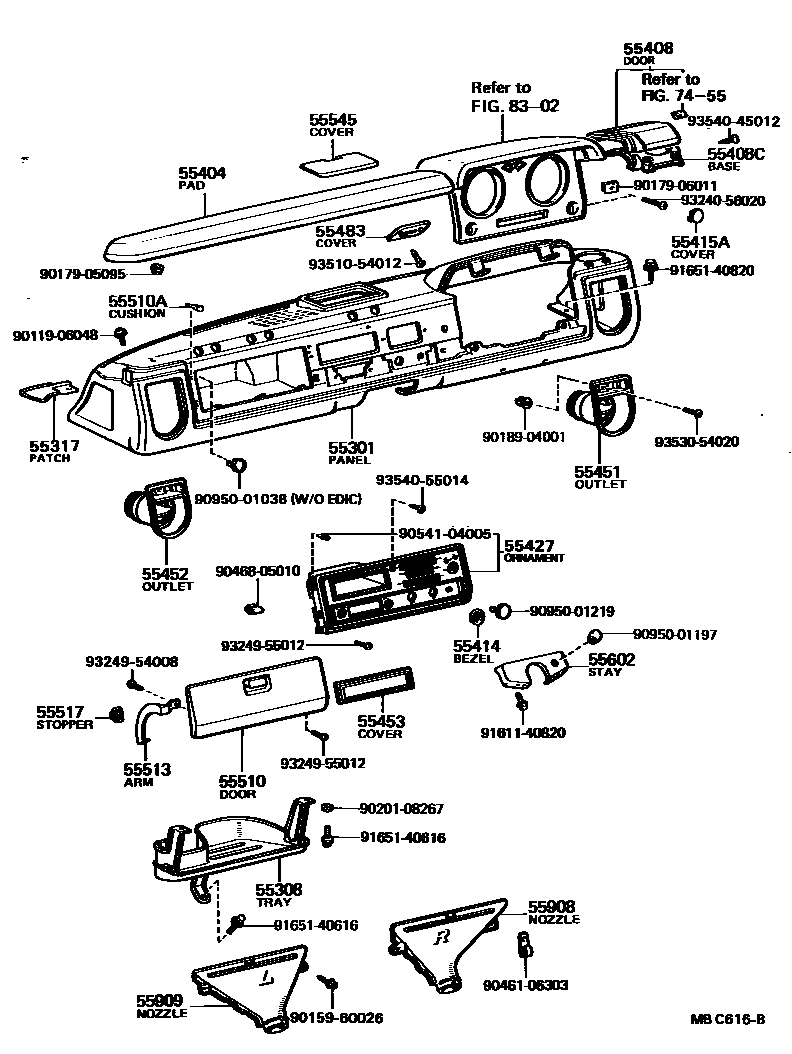

Parts diagram

55301PANEL SUB-ASSY, INSTRUMENT

main55301-95444i197708-198008

main55301-95446i197708-198008

main55301-95449i198008-198204

main55301-95450i198008-198204

main55301-95451i198204-198408

main55301-95452i198204-198411

main55301-95453i198204-198408

main55301-95456i198204-198408

W/RHEOSTAT

main55301-95457i198204-198408

W/RHEOSTAT

main55301-95458i198302-198408

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main74650-95412i197708-198008

W/HEATER

main74650-95413i197708-197802

W/HEATER

main74650-95414i197708-198008

W/O HEATER

main74650-95415i197708-198008

main74650-95417i198204-198411

W/O HEATER

main74650-95418i198008-198204

W/HEATER

main74650-95420i198008-198204

W/O HEATER

main74650-95421i198008-198204

main74650-95423i198204-198408

main74650-95425i198204-198411

W/HEATER

main74650-95426i198204-198408

main74650-95427i198302-198408

55317PATCH, INSTRUMENT PANEL

main55317-95400i197708-198008

RH,W/O SIDE DEFROSTER

main55317-95401i198008-198204

RH,W/O SIDE DEFROSTER

main55317-95402i198204-198408

RH,W/O SIDE DEFROSTER

main55318-95400i197708-198008

LH,W/O SIDE DEFROSTER

main55318-95402i198008-198204

LH,W/O SIDE DEFROSTER

main55318-95403i198204-198408

LH,W/O SIDE DEFROSTER

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-95403i197708-198008

main55401-95404i197708-198008

main55401-95406i198008-198204

main55401-95407i198008-198204

main55401-95408i198204-198405

main55401-95409i198204-198405

main55401-95410i198204-198405

main55401-95411i198302-198405

main55401-95416i198405-198411

main55401-95417i198405-198408

main55401-95418i198405-198408

main55401-95419i198405-198408

55408DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE

main55402-95405i197708-198008

main55402-95406i197708-198008

main55402-95413i198008-198204

main55402-95414i198008-198204

main55402-95415i198204-198411

main55402-95417i198204-198408

55408CBASE, RESERVOIR TANK SERVICE HOLE DOOR

main55432-95405i197708-198008

main55432-95406i197708-198008

main55432-95408i198008-198204

main55432-95409i198008-198204

main55432-95410i198204-198408

main55432-95411i198204-198411

main55432-95412i198204-198408

main55432-95416i198302-198408

55414BEZEL, CIGAR LIGHTER HOLE

main55477-95400i197708-198411

55415ACOVER, METER HOOD

main55415-95403×2i197708-198204

main55415-95404×2i198204-198411

55427ORNAMENT, INSTRUMENT PANEL, CENTER

main55411-95404i197708-198008

main55411-95405i197708-198008

main55411-95410i197708-198008

main55411-95411i197708-198008

main55411-95416i198008-198204

W/HEATER

main55411-95417i198008-198204

W/HEATER

main55411-95418i198008-198204

main55411-95419i198008-198204

main55411-95420i198008-198204

main55411-95421i198008-198204

main55411-95422i198008-198204

W/HEATER

main55411-95423i198008-198204

W/HEATER

main55411-95424i198204-198408

W/HEATER

main55411-95425i198204-198408

main55411-95426i198204-198411

W/HEATER

main55411-95427i198204-198408

W/HEATER; W/RHEOSTAT

main55411-95428i198204-198408

main55411-95429i198204-198408

main55411-95430i198204-198411

main55411-95431i198204-198408

main55411-95432i198204-198408

W/HEATER

main55411-95433i198204-198408

W/HEATER

main55411-95434i198204-198408

W/RHEOSTAT

main55411-95435i198302-198408

main55411-95436i198302-198408

W/HEATER

main55411-95437i198302-198411

W/HEATER & STEREO

main55411-95438i198302-198408

W/HEATER & STEREO

main55411-95439i198302-198411

W/HEATER & STEREO

main55411-95440i198302-198408

W/STEREO

main55411-95441i198302-198408

W/STEREO

main55411-95442i198302-198411

W/STEREO

main55411-95443i198302-198411

W/STEREO

main55411-95444i198302-198408

W/HEATER & STEREO

main55411-95445i198302-198408

W/HEATER & STEREO

main55411-95446i198302-198408

W/STEREO

main55411-95447i198302-198408

W/STEREO

main55411-95448i198302-198408

W/STEREO

main55411-95449i198302-198408

W/HEATER & STEREO

55451OUTLET, AIR OUTER, RH

main55409-95401i197708-198204

main55409-95403i198204-198411

55452OUTLET, AIR OUTER, LH

main55409-95401i197708-198204

main55409-95402i197708-198204

main55409-95403i198204-198411

main55409-95404i198204-198408

55453COVER, RADIO TUNER OPENING

main55463-20041i197904-198008

55483COVER, HEATER INGICATOR LAMP

main55416-95400i197708-198008

main55416-95401i198008-198204

main55416-95402i198204-198408

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95406i197708-197803

main55501-95407i197708-197803

main55501-95408i197803-198008

main55501-95409i198008-198204

main55501-95411i198204-198411

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-04007i197708-198411

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55513-95405i197803-198411

RH

main55514-95401i197708-197803

LH

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-95A00×2i197708-198411

55545COVER, FUSE BOX OPENING

main55412-95403i197708-198008

main55412-95406i198008-198204

main55412-95408i198204-198411

main55540-95403i198204-198408

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55602-95411i197708-197908

main55602-95412i197708-198008

main55602-95413i197708-198008

main55602-95414i197708-197908

main55602-95415i197803-197908

main55602-95422i197803-197908

main55602-95423i198008-198204

main55602-95424i198008-198204

main55602-95429i198008-198204

main55602-95430i198008-198204

main55602-95435i198204-198408

main55602-95437i198204-198408

main55602-95438i198204-198408

main55602-95442i198204-198411

main55602-95443i198304-198408

CHINA SPEC

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-95407i197708-198411

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-95408i197708-198411

7455CAUTION PLATE

→ Go to FIG 74-55

8302INDICATOR

→ Go to FIG 83-02

9011906048

main90119-06048

9015960026

main90159-60026

9017905095

main90179-05095

9017906011

main90179-06011

9018904001

main90189-04001

9020108267

main90201-08267

9046106303

main90461-06303

9046805010

main90468-05010

9054104005

main90541-04005

9095001038

main90950-01038

9095001197

main90950-01197

9095001219

main90950-01219

9161140820

main91611-40820

9165140616

main91651-40616

9165140820

main91651-40820

9324056020

main93240-56020

9324954008

main93249-54008

9324955012

main93249-55012

9351054012

main93510-54012

9353054020

main93530-54020

9354045012

main93540-45012

9354055014

main93540-55014

45 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota DYNA

This section contains 58 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota DYNA. Key components include: AIR CLEANER, PANEL SUB-ASSY, INSTRUMENT, TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, PATCH, INSTRUMENT PANEL, SUPPORT, FUSE BOX.
