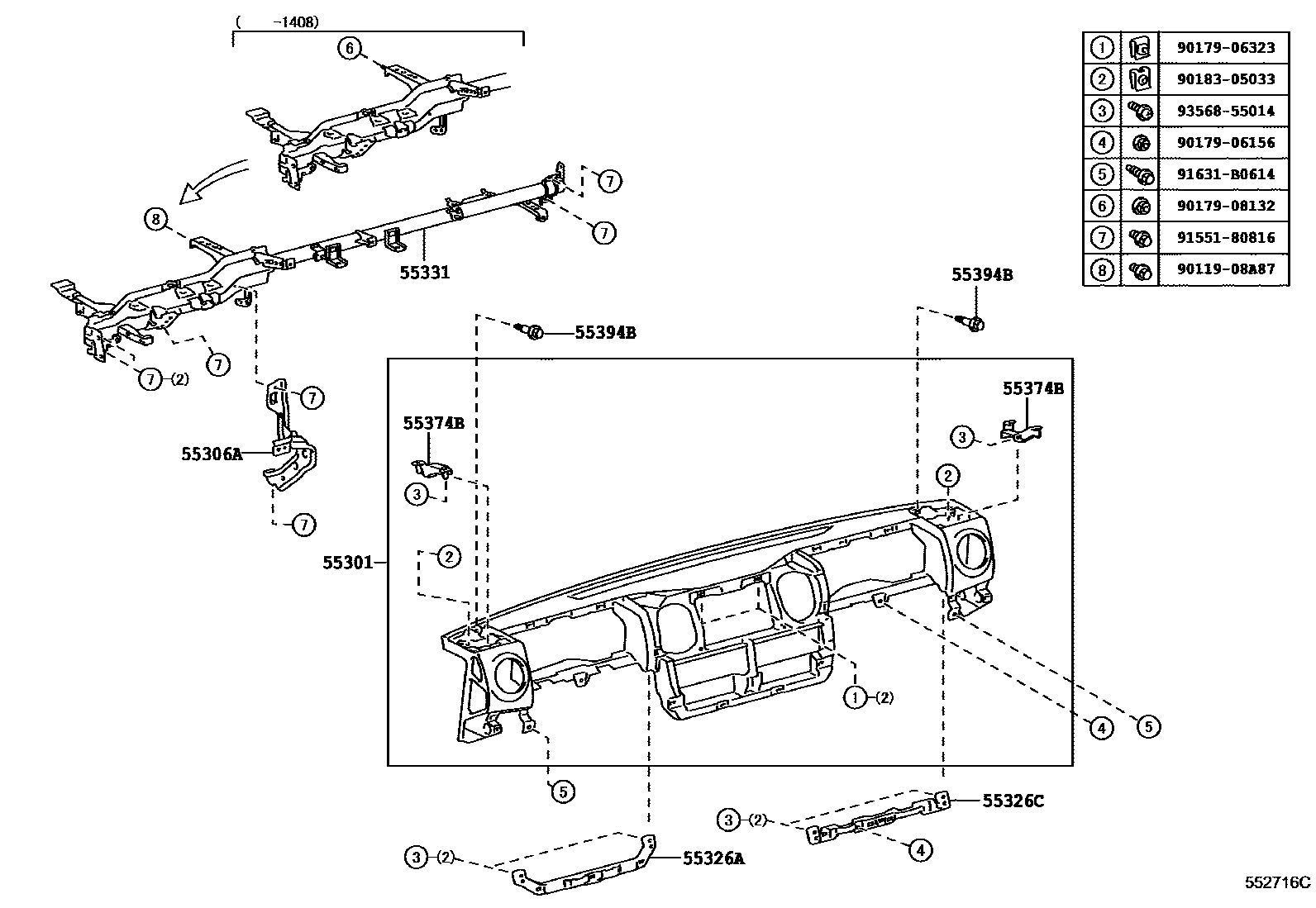

Toyota DYNA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-37090-C0iXZU600..GEN201107-202005

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-37090iWU600,650201107-201312

sub55306-37091

main55306-37091iXZU600..GCC;WU600,650,XZU650201401-202005

55326ASTAY, INSTRUMENT PANEL, NO.1

main55429-37010iXZU600..GCC;WU600,650,XZU650201107-202005

55326CSTAY, INSTRUMENT PANEL, NO.2

main55429-37020iXZU600..GCC;WU600,650,XZU650201107-202005

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-37180iWU600,650201107-201408

main55330-37230iWU600,650,XZU600,650201408-201907

sub55330-37231

main55330-37231iXZU600..GCC;WU600,650,XZU650201908-202005

55374BBRACKET, INSTRUMENT PANEL

main55353-37010iXZU600..GCC;WU600,650,XZU650201107-202005

55394BBOLT, INSTRUMENT PANEL

main55394-37010iXZU600..GCC;WU600,650,XZU650201107-202005

9011908A87

main90119-08A87

9017906156

main90179-06156

9017906323

main90179-06323

9017908132

main90179-08132

9018305033

main90183-05033

9155180816

main91551-80816

91631B0614

main91631-B0614

9356855014

main93568-55014

15 parts on this diagram · 4 diagrams in section
