Toyota DYNA — INSTRUMENT PANEL & GLOVE COMPARTMENT

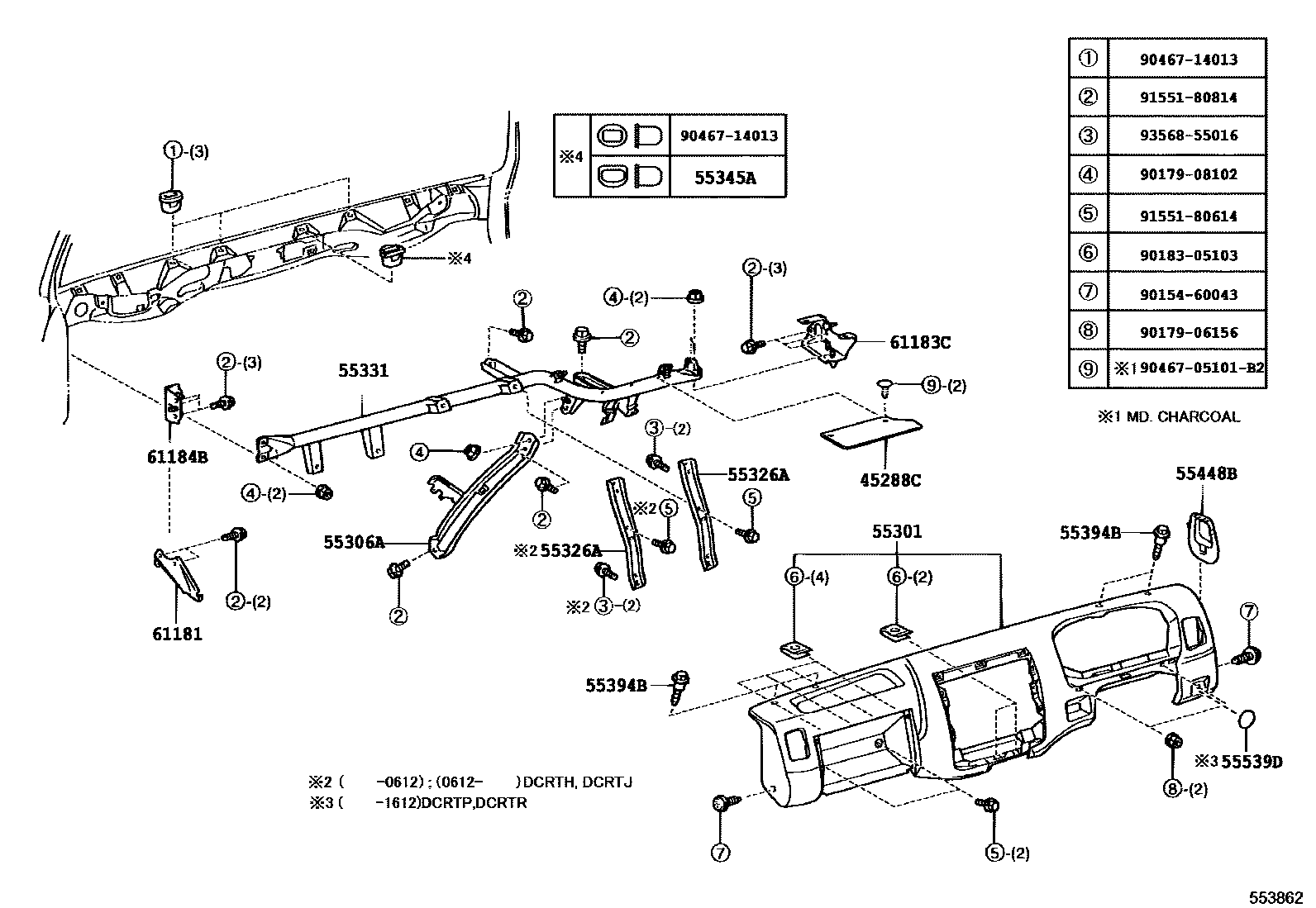

Parts diagram

45288CPLATE, STEERING COLUMN COVER

main45288-0W010i200912

main45288-37010i200209-200612

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0W010-B0i200209-200612

MD.CHARCOAL,TRIM1#

main55301-0W020-B0i200912-201901

MD.CHARCOAL,TRIM1#

main55301-0W021-B0i201902

MD.CHARCOAL,TRIM1#

main55301-25020-B0i200212-200312

MD.CHARCOAL,TRIM1#

main55301-37011-B0i200610-200812

MD.CHARCOAL,TRIM1#

main55301-37012-B0i200910-201106

MD.CHARCOAL,TRIM1#

main55301-37030-B0i200610-200909

MD.CHARCOAL,TRIM1#

main55301-37031-B0i200910-201106

MD.CHARCOAL,TRIM1#

main55301-F1010-E0i202203-202310

BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0W010i200209-200310

main55306-0W011i200310-200612

main55306-0W020i200912

main55306-37011i200212-200802

main55306-37021i200610-200901

main55306-F1010i202203-202310

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-0W010×2i200209-200612

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0W010i200402-200612

main55330-0W011i200308-200402

main55330-0W040i200912

main55330-25040i200212-200610

main55330-37024i200212-200312

main55330-37025i200609-200802

main55330-37043i200810-200901

55345ACLIP, INSTRUMENT PANEL, NO.1

main90467-14013i202203-202310

TYPE B:REFER ILLUST.

main90467-14023i202203

TYPE A,WHITE

main90467-14024i202203-202206

TYPE A,ORANGE

main90467-14025i200610-200812

BLUE

main90467-14027i200610-201005

YELLOW GREEN

main90467-14028i200610-201005

PINK

55394BBOLT, INSTRUMENT PANEL

main55394-37010×4i200209-200312

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-37020-B0i200209-200312

MD.CHARCOAL,TRIM1#

main55448-F1010-E0i202203-202310

BROWN,TRIM4#

55539DCOVER, SPARE SWITCH HOLE

main55539-0W010i200912-201612

61181BRACKET, INSTRUMENT PANEL SIDE

main55707-37010i200212-200802

main55707-37020i200212-200610

main61181-0W010i200209-200612

main61181-0W020i202203-202310

61183CBRACKET, INSTRUMENT PANEL TO COWL

main55707-0W010i200612-201005

main55707-0W020i200912

61184BBRACKET, INSTRUMENT PANEL SIDE, NO.2 LH

main61184-0W010i200612-201005

main61184-37010i200610-201106

9015460043

main90154-60043

9017906156

main90179-06156

9017908102

main90179-08102

9018305103

main90183-05103

9046705101B2

main90467-05101B2

9046714013

main90467-14013

9155180614

main91551-80614

9155180814

main91551-80814

9356855016

main93568-55016

21 parts on this diagram · 16 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota DYNA

This section contains 82 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota DYNA. Key components include: PLATE, STEERING COLUMN COVER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER, CLIP, INSTRUMENT PANEL.
