Toyota DYNA — INSTRUMENT PANEL & GLOVE COMPARTMENT

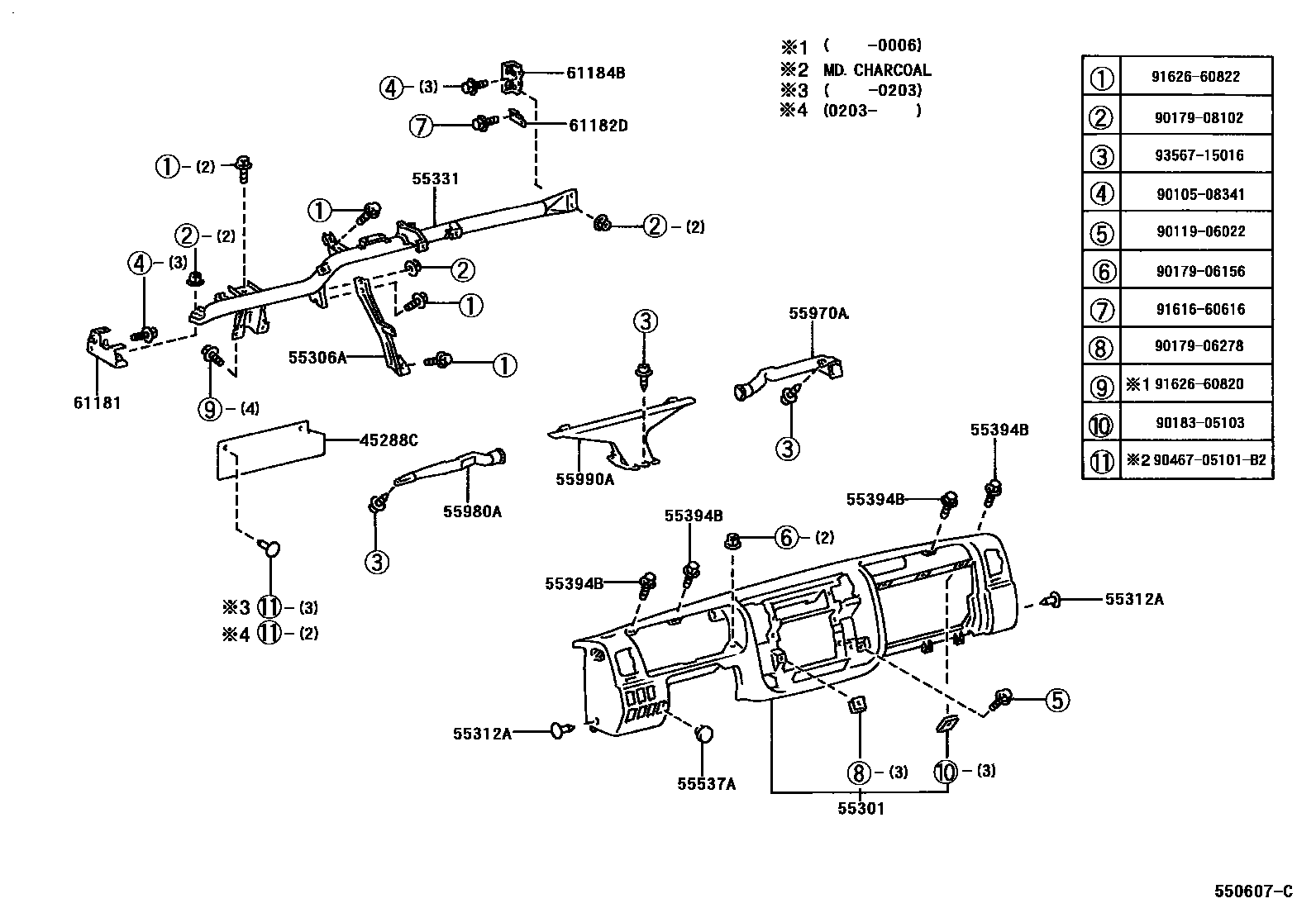

Parts diagram
45288CPLATE, STEERING COLUMN COVER
main45288-37010i199907-200212
55301PANEL SUB-ASSY, INSTRUMENT
main55301-25020-B0i200106-200206
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG),MD.CHARCOAL,TRIM1#
main55301-25030-B0i200106-200206
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),MD.CHARCOAL,TRIM1#
main55301-37010-B0i200010-200102
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG),MD.CHARCOAL,TRIM1#
main55301-37011-B0i200102-200106
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG),MD.CHARCOAL,TRIM1#
main55301-37020-B0i200010-200102
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),MD.CHARCOAL,TRIM1#
main55301-37021-B0i200102-200106
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),MD.CHARCOAL,TRIM1#
main55301-37030-B0i199907-200212
MD.CHARCOAL,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-37011i200010-200206
main55306-37020i199907-200103
main55306-37021i200103-200212
55312ACLIP, INSTRUMENT PANEL
main90467-07041-B8×2i199907-200212
MD.CHARCOAL,TRIM1#
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-25040i200010-200212
main55330-37023i200010-200103
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG)
main55330-37024i200103-200206
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG)
main55330-37032i200010-200206
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE)
main55330-37041i199907-200005
main55330-37042i200005-200010
55394BBOLT, INSTRUMENT PANEL
main55394-37010×4i199907-200212
55537ACOVER, THROTTLE KNOB HOLE
main55537-95010-B1i199907-200212
MD.CHARCOAL,TRIM1#
55970ADUCT ASSY, SIDE DEFROSTER, RH
main55971-37050i200010-200206
main55972-37060i199907-200212
55980ADUCT ASSY, SIDE DEFROSTER, LH
main55971-37060i199907-200212
main55972-37050i200010-200206
55990ANOZZLE ASSY, DEFROSTER, LOWER
main55990-37041i200010-200206
main55990-37060i199907-200212
61181BRACKET, INSTRUMENT PANEL SIDE
main55707-37010i200010-200206
main55707-37020i199907-200212
61182DBRACKET, INSTRUMENT PANEL SIDE
main61181-37040i200010-200206
main61181-37060i199907-200212
61184BBRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
main61184-37010i199907-200212
9010508341
main90105-08341
9011906022
main90119-06022
9017906156
main90179-06156
9017906278
main90179-06278
9017908102
main90179-08102
9018305103
main90183-05103
9046705101B2
main90467-05101B2
9161660616
main91616-60616
9162660820
main91626-60820
9162660822
main91626-60822
9356715016
main93567-15016

24 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota DYNA

This section contains 69 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota DYNA. Key components include: PLATE, STEERING COLUMN COVER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, CLIP, INSTRUMENT PANEL, PANEL, INSTRUMENT SIDE, RH.
