Toyota DYNA — INSIDE TRIM BOARD

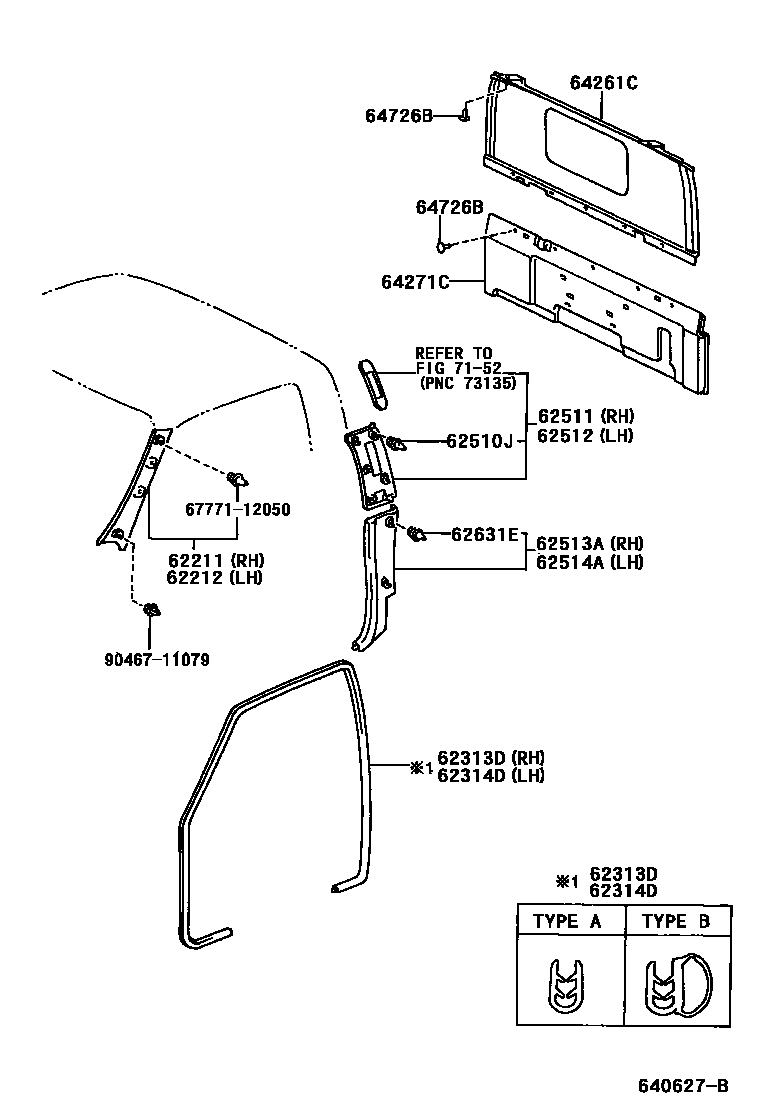

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62211-37010-B0i199907-200212
MD.CHARCOAL,TRIM1#
62212GARNISH, FRONT PILLAR, LH
main62212-37010-B0i199907-200212
MD.CHARCOAL,TRIM1#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-37040-B0i199907-200212
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
main62313-37050-B0i200010-200206
TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
62314DTRIM, FRONT DOOR OPENING, LH
main62313-37040-B0i199907-200212
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
main62314-37010-B0i200010-200206
TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
62510JRETAINER, QUARTER TRIM
main67771-12050i199907-200212
62511BOARD, QUARTER INSIDE TRIM, RH
main62511-37010-B0i200010-200206
MD.CHARCOAL,TRIM1#
main62511-37020-B0i199907-200212
MD.CHARCOAL,TRIM1#
62512BOARD, QUARTER INSIDE TRIM, LH
main62512-37010-B0i199907-200212
MD.CHARCOAL,TRIM1#
62513APANEL, QUARTER TRIM, LOWER RH
main62513-37010-B0i199907-200212
MD.CHARCOAL,TRIM1#
62514APANEL, QUARTER TRIM, LOWER LH
main62514-37010-B0i199907-200212
MD.CHARCOAL,TRIM1#
62631ERETAINER, QUATER TRIM
main67771-12050i199907-200212
64261CGARNISH, BACK PANEL, UPPER
main64261-37010-B0i200010-200206
MD.CHARCOAL,TRIM1#
64271CTRIM, BACK PANEL
main64271-37011-B0i200010-200206
MD.CHARCOAL,TRIM1#
main64271-37020-B0i200010-200206
W(REAR BACK CONSOLE BOX),MD.CHARCOAL,TRIM1#
main64271-37040-B0i199907-200001
MD.CHARCOAL,TRIM1#
main64271-37041-B0i200001-200207
MD.CHARCOAL,TRIM1#
main64271-37042-B0i200207-200212
MD.CHARCOAL,TRIM1#
main64271-37100-B0i200010-200206
W(PASSENGER SEAT BENCH TYPE),MD.CHACOAL,TRIM1#
64726BCLIP, DECK REAR TRIM
main64726-37010-B0i200010-200206
W(BACK PANEL GARNISH),MD.CHACOAL,TRIM1#
main64726-37010-B0i199907-200212
MD.CHACOAL,TRIM1#
7152SEAT BELT
→ Go to FIG 71-52
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
9046711079
main90467-11079

16 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD for Toyota DYNA

This section contains 16 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota DYNA. Key components include: GARNISH, FRONT PILLAR, RH, GARNISH, FRONT PILLAR, LH, TRIM, FRONT DOOR OPENING, RH, TRIM, FRONT DOOR OPENING, LH, RETAINER, QUARTER TRIM.
