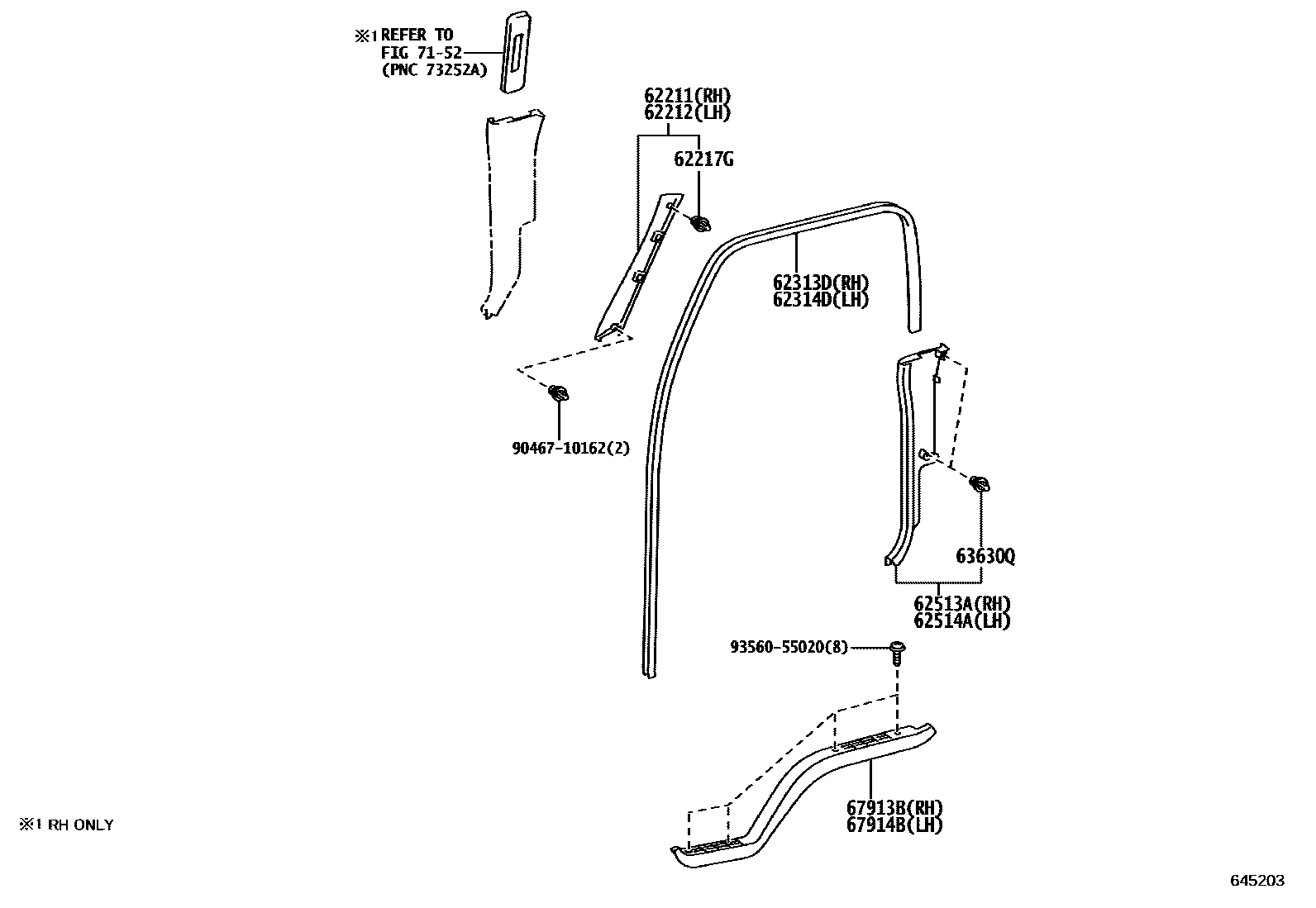

Toyota DYNA — INSIDE TRIM BOARD

62211GARNISH, FRONT PILLAR, RH

main62210-37010-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62220-37010-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main90467-10188×2iGDY231..CBU202108-202305

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37080-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-37040-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

62513APANEL, QUARTER TRIM, LOWER RH

main62530-37020-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

62514APANEL, QUARTER TRIM, LOWER LH

main62540-37020-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

63630QCLIP

main90467-10161×4iGDY231..CBU202108-202305

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-37010-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-37010-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

7152

9046710162

main90467-10162

9356055020

main93560-55020

13 parts on this diagram · 1 diagram in section
