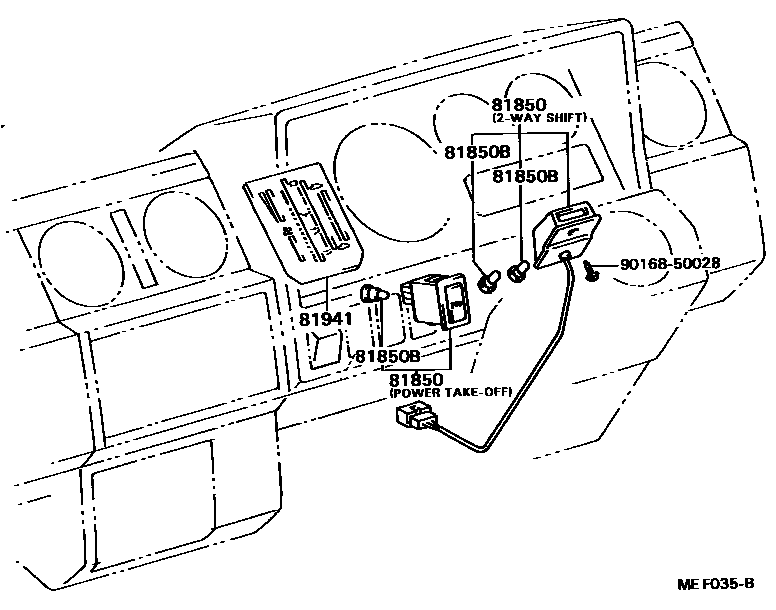

Toyota DYNA — INDICATOR

81850LAMP ASSY, INDICATOR

main81850-95404iBU75,85..EUR198508-198708

POWER TAKE-OFF,24V,CHINA SPEC

main81850-95405iBU60,80..T3..WT..GEN;BU61,62,63,65,75,76,81,85,86..WT..(ARL,GEN)..(CBU,IV3)198508-198708

POWER TAKE-OFF

81850BBULB, INDICATOR LAMP

main84999-10100iBU75,85..EUR198508-198708

24V 1.12W,24V 1.12W,POWER TAKE-OFF

main84999-10170iBU60,61,62,75,76,80,81,85,86..(T3,TW1)..WT..(ARL,GEN)..(CBU,IV3)198508-198708

12V 1.12W,12V 1.12W,POWER TAKE-OFF

81941PLATE, HEATER CONTROL NAME

main55519-95402iBU6#,7#,8#198409-198708

W/HEATER

sub55519-95406

main55519-95403iBU60,61,62,63,7#,8#..GEN,GHD198409-198708

W/*BV

main55519-95404iBU6#,7#,8#..GEN,GHD198608-198708

W/FOOT VENTILATOR

9016850028

main90168-50028

4 parts on this diagram · 1 diagram in section
