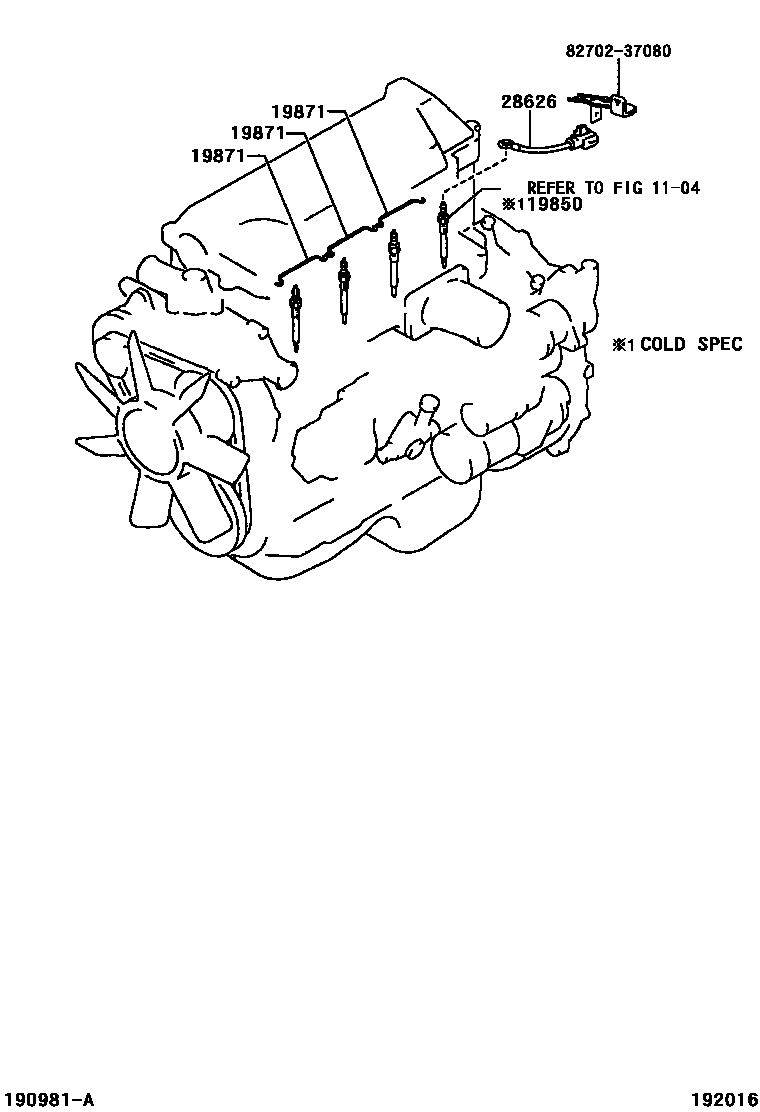

Toyota DYNA — IGNITION COIL & SPARK PLUG / GLOW PLUG

1104CYLINDER HEAD

→ Go to FIG 11-04

19850PLUG ASSY, GLOW

main19850-89101×4i200010-200206

*BV-GV=24V-23V

19871CONNECTOR, GLOW PLUG NO.1

main19879-89101×3i200010-200206

28626WIRE, GLOW PLUG

main28626-78010i200010-200206

8270237080BRACKET SUB-ASSY, WIRING HARNESS

main82702-37080

5 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota DYNA

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota DYNA. Key components include: CYLINDER HEAD, PLUG ASSY, GLOW, CONNECTOR, GLOW PLUG NO.1, WIRE, GLOW PLUG, BRACKET SUB-ASSY, WIRING HARNESS.
