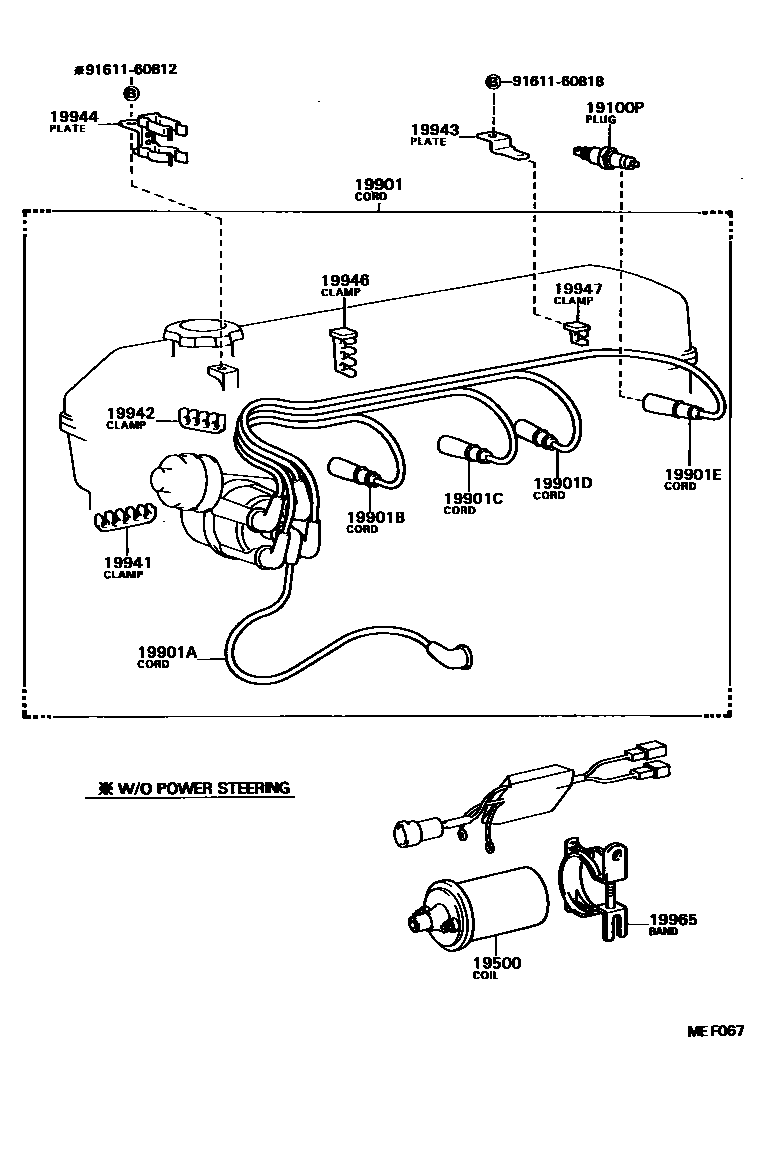

Toyota DYNA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01059×4i198409-198708

W16EX-U,W16EX-U

main90919-01064×4i198409-198608

W16EXR-U,W16EXR-U

19500COIL ASSY, IGNITION

main90919-02097i198409-198708

main90919-02117i198409-198708

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21358i198409-198708

main90919-21359i198409-198708

19901ACORD, COIL RESISTIVE

main90919-13127i198409-198708

main90919-13220i198409-198708

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12230i198409-198708

main90919-12469i198409-198708

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12231i198409-198708

main90919-12470i198409-198708

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12232i198409-198708

main90919-12471i198409-198708

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12233i198409-198708

main90919-12472i198409-198708

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00214i198409-198708

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00061i198409-198708

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-38010i198512-198706

main19943-38011i198409-198512

19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2

main19944-35010i198409-198708

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00303i198409-198708

19947CLAMP, RESISTIVE CORD, NO.4

main90464-00059i198409-198708

19965BAND, IGNITION COIL, NO.1

main90919-03086i198409-198708

9161160812

main91611-60812

9161160818

main91611-60818

17 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota DYNA

This section contains 25 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota DYNA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG), CONNECTOR, GLOW PLUG NO.1.
