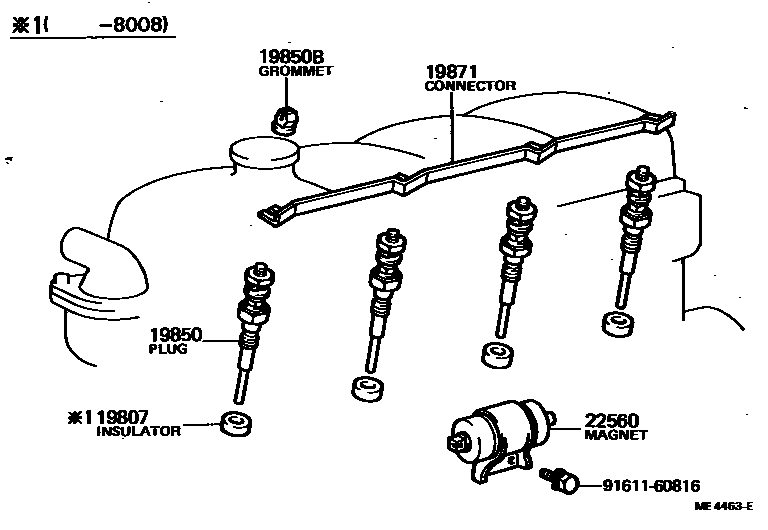

Toyota DYNA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19807INSULATOR SUB-ASSY, GLOW PLUG, NO.1

main19877-56010×4i197708-198008

19850PLUG ASSY, GLOW

main19850-56012×4i197708-198008

*BV-GV=24V-20.5V,*24V-20.5V

main19850-56022×4i197708-198008

*12V-8.5V

main19850-68030×6i198008-198411

*12V-8.5V

main19850-68040×4i198008-198408

*24V-20.5V

main19850-78010×4i198304-198408

*BV-GV=24V-14V,24V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i198304-198408

24V

main90189-05011×3i197904-198008

main90189-06004×5i197708-197904

19871CONNECTOR, GLOW PLUG NO.1

main19871-47011i197708-198104

main19871-48010i197708-197904

main19871-56010i197708-198008

main19871-56020i198008-198411

main19871-68011i198204-198408

main19871-78010×3i198304-198408

24V

22560MAGNET ASSY, OVER INJECTION

main22560-48010i197708-197904

12V

main22560-48020i197708-197904

24V

main22560-56030i198008-198408

24V

main22560-56040i198302-198411

12V

9161160816

main91611-60816

6 parts on this diagram · 5 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota DYNA

This section contains 26 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota DYNA. Key components include: PLUG KIT, SPARK, PLUG, SPARK, COIL ASSY, IGNITION, COVER, IGNITION COIL, INSULATOR SUB-ASSY, GLOW PLUG, NO.1.
