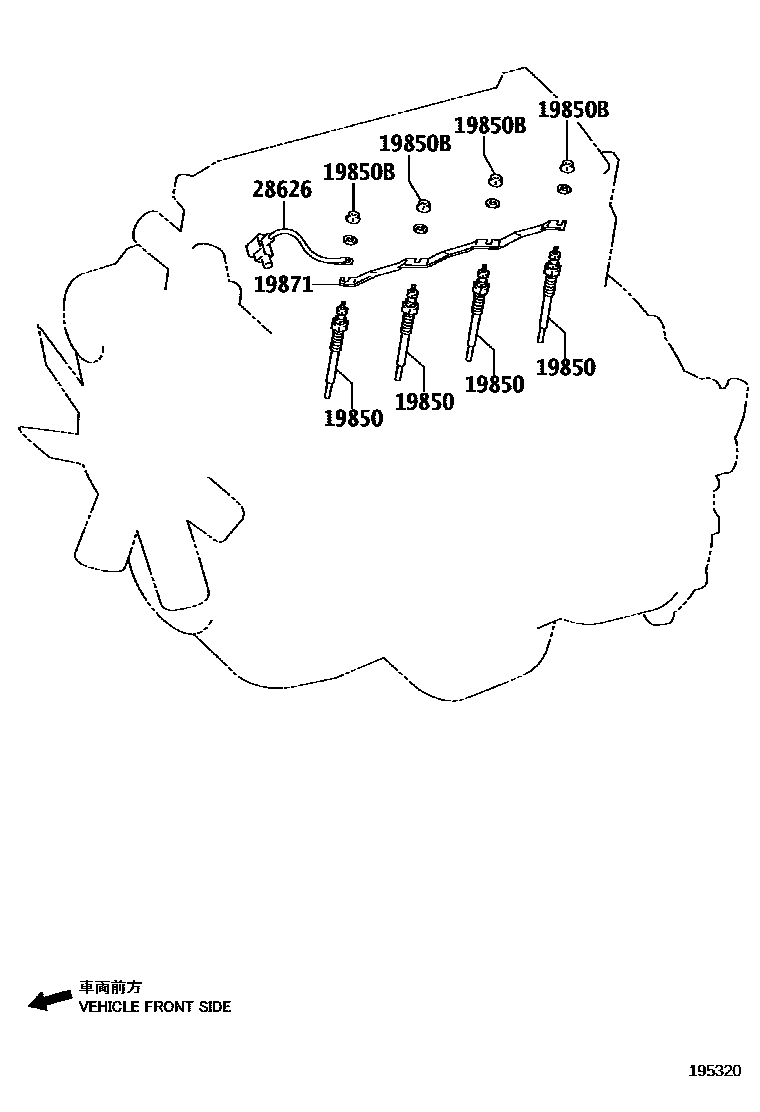

Toyota DYNA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19850PLUG ASSY, GLOW

main19850-E0030×4i201911

*BV-GV=24V-23V,GLOW PLUG-WITH

main19850-E0100×4i201107-202005

*BV-GV=24V-23V,GLOW PLUG-WITH

19850BGROMMET, SCREW(FOR GLOW PLUG)

mainS191131050×4i201911

GLOW PLUG-WITH

19871CONNECTOR, GLOW PLUG NO.1

main19871-E0011i201107-202005

GLOW PLUG-WITH

28626WIRE, GLOW PLUG

main28626-E0011i201107-202005

GLOW PLUG-WITH

4 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota DYNA

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota DYNA. Key components include: PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG), CONNECTOR, GLOW PLUG NO.1, WIRE, GLOW PLUG GROUND, WIRE, GLOW PLUG.
