Toyota DYNAHORN

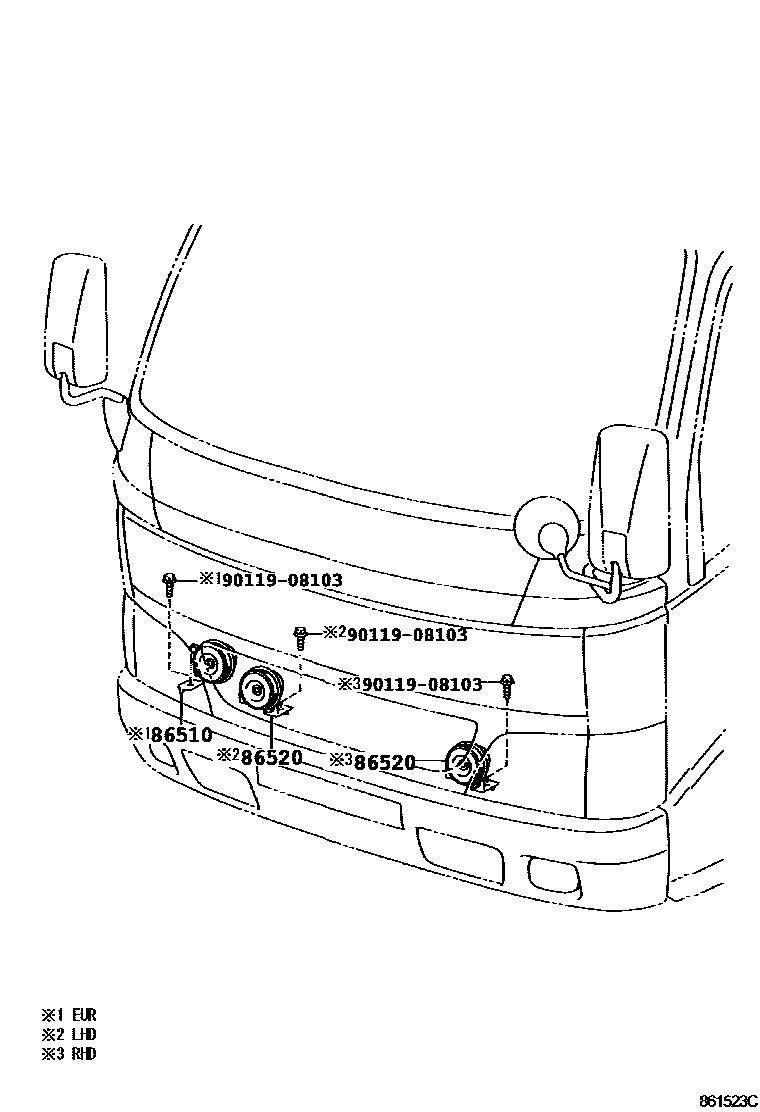

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-37030i200110-200608
86520HORN ASSY, LOW PITCHED
main86500-37061i200701-201208
main86520-37050i200110-200701
main86520-37080i200110-200608
main86520-37100i200610-201106
9011908103

3 parts on this diagram · 2 diagrams in section

HORN for Toyota DYNA

This section contains 4 genuine Toyota parts for the HORN system of the Toyota DYNA. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
