Toyota DYNA — HORN

86508BRACKET SUB-ASSY, HORN

main74706-95406i197708-198411

main74706-95407i197708-198104

CHINA SPEC

86510HORN ASSY, HIGH PITCHED

main86510-12131i198404-198408

12V,ECE SPEC

main86510-22090i198206-198411

12V,W/NOISE FILTER

main86510-36090i197708-198008

12V

main86510-36110i197708-197911

12V,CHINA SPEC

main86510-36111i198104-198408

12V,CHINA SPEC

main86510-36121i198302-198408

24V,CHINA SPEC

main86510-90B00i198206-198408

24V,W/NOISE FILTER

main86510-95400i198104-198408

24V,ECE SPEC

main86510-95401i198104-198106

24V

main86510-95402i198008-198106

12V

main86510-95403i198106-198204

24V

main86510-95404i198106-198204

12V

main86510-95405i198302-198408

24V

main86510-95406i198204-198411

12V

main86510-95407i198301-198408

24V

main86510-95408i198301-198408

12V,WATER PROOF TYPE

86520HORN ASSY, LOW PITCHED

main86520-12111i198302-198408

12V,ECE SPEC

main86520-22090i198206-198411

12V,W/NOISE FILTER

main86520-36090i197708-198106

12V

main86520-36100i198104-198106

24V

main86520-36110i197708-197911

12V,CHINA SPEC

main86520-36111i198302-198408

12V,CHINA SPEC

main86520-36121i198104-198408

24V,CHINA SPEC

main86520-90B00i198302-198408

24V,W/NOISE FILTER

main86520-95400i198104-198408

24V,ECE SPEC

main86520-95401i198106-198204

24V

main86520-95402i198106-198204

12V

main86520-95403i198204-198408

24V

main86520-95404i198204-198411

12V

main86520-95405i198301-198408

24V

main86520-95406i198301-198408

12V,WATER PROOF TYPE

86522PROTECTOR, HORN

main86522-95400i198008-198411

9161140816

main91611-40816

9165140820

main91651-40820

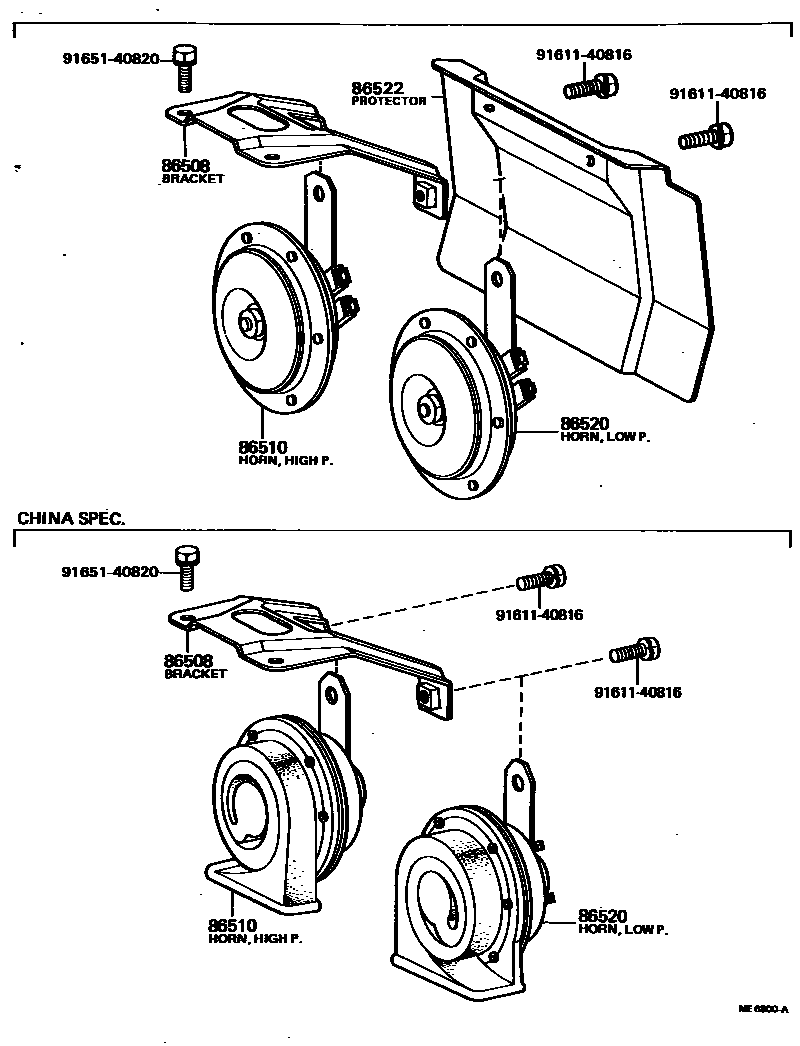

6 parts on this diagram · 1 diagram in section

HORN for Toyota DYNA

This section contains 6 genuine Toyota parts for the HORN system of the Toyota DYNA. Key components include: BRACKET SUB-ASSY, HORN, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, PROTECTOR, HORN.
