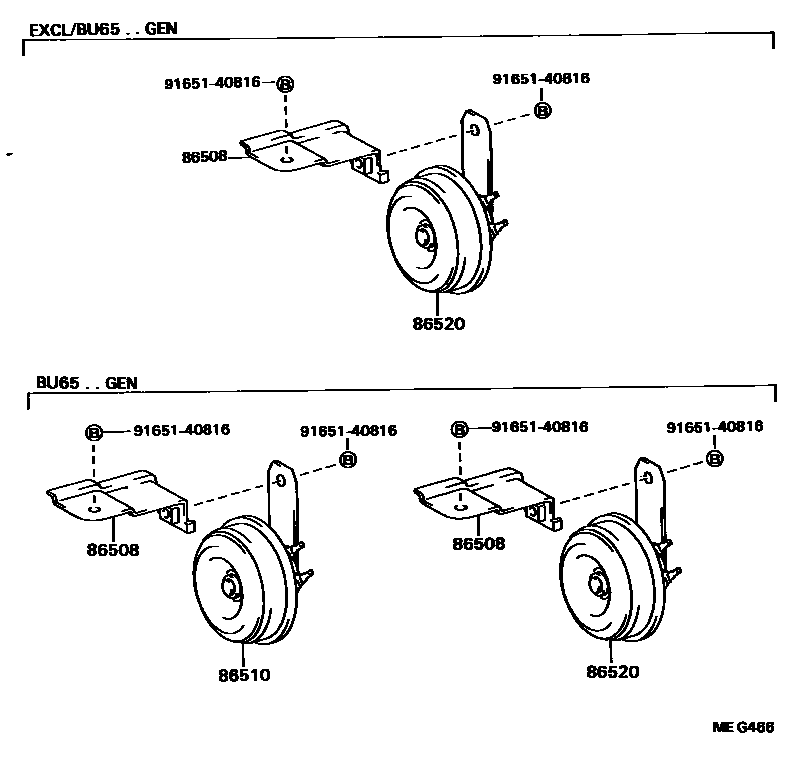

Toyota DYNA — HORN

86508BRACKET SUB-ASSY, HORN

main86591-95401×2i198409-198708

main86591-95402i198604-198708

main86591-95403i198409-198708

86510HORN ASSY, HIGH PITCHED

main86510-95409i198508-198708

86520HORN ASSY, LOW PITCHED

main86520-95407i198501-198507

24V,ALGERIA SPEC

main86520-95408i198409-198508

24V

main86520-95411i198409-198603

24V,CHINA SPEC

main86520-95415i198409-198507

12V

main86520-95417i198409-198708

12V,POWERFULL TYPE

main86520-95418i198409-198508

W/AM/SW RADIO (W/NOISE FILTER)

main86520-95419i198508-198708

24V

main86520-95420i198604-198708

main86520-95421i198508-198708

W/AM/SW RADIO (W/NOISE FILTER)

main86520-95422i198507-198708

24V,ALGERIA SPEC

main86520-95423i198507-198708

12V

main86520-95424i198603-198708

24V,CHINA SPEC

9165140816

main91651-40816

4 parts on this diagram · 1 diagram in section

HORN for Toyota DYNA

This section contains 4 genuine Toyota parts for the HORN system of the Toyota DYNA. Key components include: BRACKET SUB-ASSY, HORN, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
