Toyota DYNA — HEATING & AIR CONDITIONING - COMPRESSOR

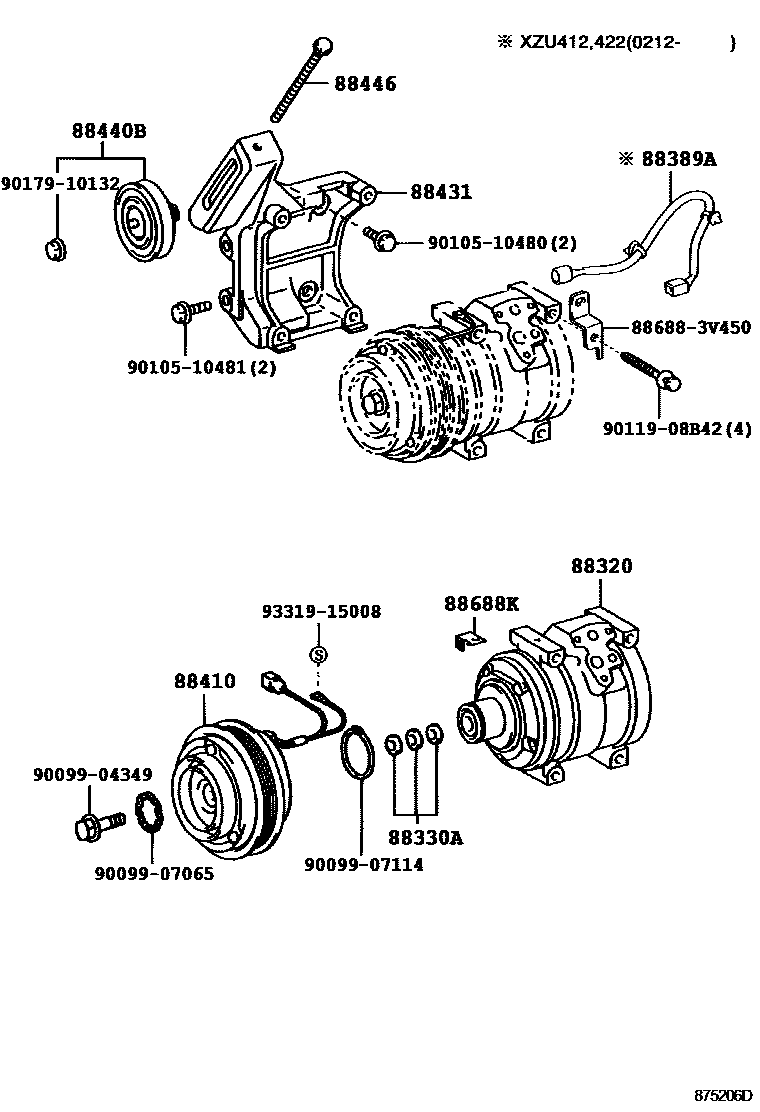

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-37070i200110-200610

main88320-37080i200212-200610

main88320-37110i200610-201208

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200110-200610

88389AWIRE, COMPRESSOR

main88389-37030i200212-200802

main88389-37040i200610-201106

88410CLUTCH ASSY, MAGNET

main88410-17100i200610-201208

main88410-37080i200110-200610

main88410-37130i200610-201106

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88345-37080i200110-200403

main88345-37140i200610-201106

main88345-37250i200610-201106

main88431-37080i200411-200701

main88431-37130i200610-201208

main88431-37180i200405-200802

88440BPULLEY ASSY, IDLE

main88440-35020i200403-200610

main88440-37020i200110-200403

main88440-37030i200411-200701

main88440-37120i200610-201208

88446BOLT, IDLE PULLEY

main88446-28020i200405-200610

main90099-04306i200110-200403

main90105-08099i200212-200610

88688KBRACKET, COOLER COMPRESSOR

main88688-2D770i200411-200701

main88688-37800i200110-200610

main88688-3V510i200212-200610

main88688-3V580i200610-201208

886883V450BRACKET, COOLER DIAPHRAGM

main88688-3V450

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9010510480

main90105-10480

9010510481

main90105-10481

9011908B42

main90119-08B42

9017910132

main90179-10132

9331915008

main93319-15008

17 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota DYNA

This section contains 26 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota DYNA. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), WIRE, COMPRESSOR, CLUTCH ASSY, MAGNET, PULLEY ASSY, IDLE, W/BRACKET.
