Toyota DYNA — HEATING & AIR CONDITIONING - COMPRESSOR

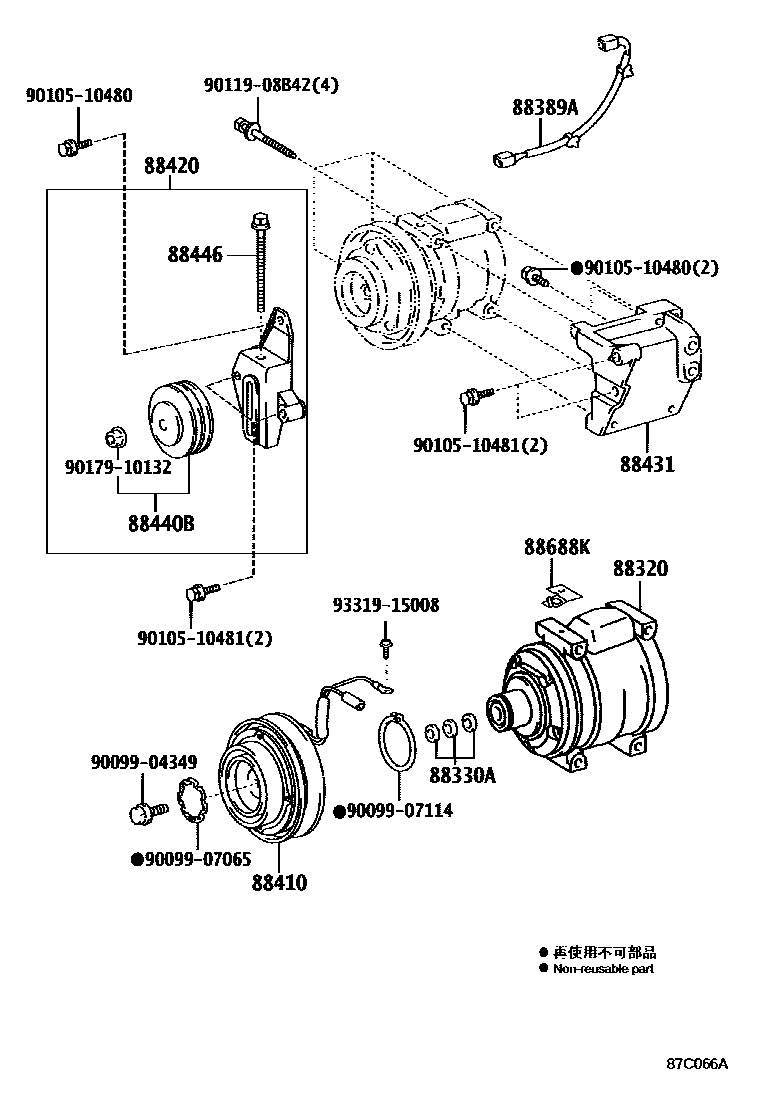

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-37080i201605-202005

main88320-37110i201605-202005

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i201605-202005

88389AWIRE, COMPRESSOR

main88649-37010i201605-202005

main88389-37040i201107-201208

AIR CONDITIONER-WITH(MANUAL); AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER

88410CLUTCH ASSY, MAGNET

main88410-17100i201605-202005

main88410-37130i201605-202005

88420PULLEY ASSY, IDLE, W/BRACKET

main88420-37220i201605-202005

main88420-37230i201605-202005

main88420-37320i201911

AIR CONDITIONER-WITH(MANUAL); AIR CONDITIONER-WITH(MANUAL) & CLEAN AIR FILTER

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88345-37140i201605-202005

main88431-37130i201605-202005

main88345-37250i201107-202005

AIR CONDITIONER-WITH(MANUAL); AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER

88440BPULLEY ASSY, IDLE

main88440-37020i201605-202005

main88440-37120i201605-202005

88446BOLT, IDLE PULLEY

main90105-08099i201107-201605

AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER

88688KBRACKET, COOLER COMPRESSOR

main88688-3V510i201605-202005

main88688-3V580i201605-202005

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9010510480

main90105-10480

9010510481

main90105-10481

9011908B42

main90119-08B42

9017910132

main90179-10132

9331915008

main93319-15008

17 parts on this diagram · 5 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota DYNA

This section contains 31 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota DYNA. Key components include: PULLEY SUB-ASSY, IDLER, PULLEY ASSY, IDLER, SPACER, COOLER COMPRESSOR, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH).
