Toyota DYNA — HEATING & AIR CONDITIONING - COMPRESSOR

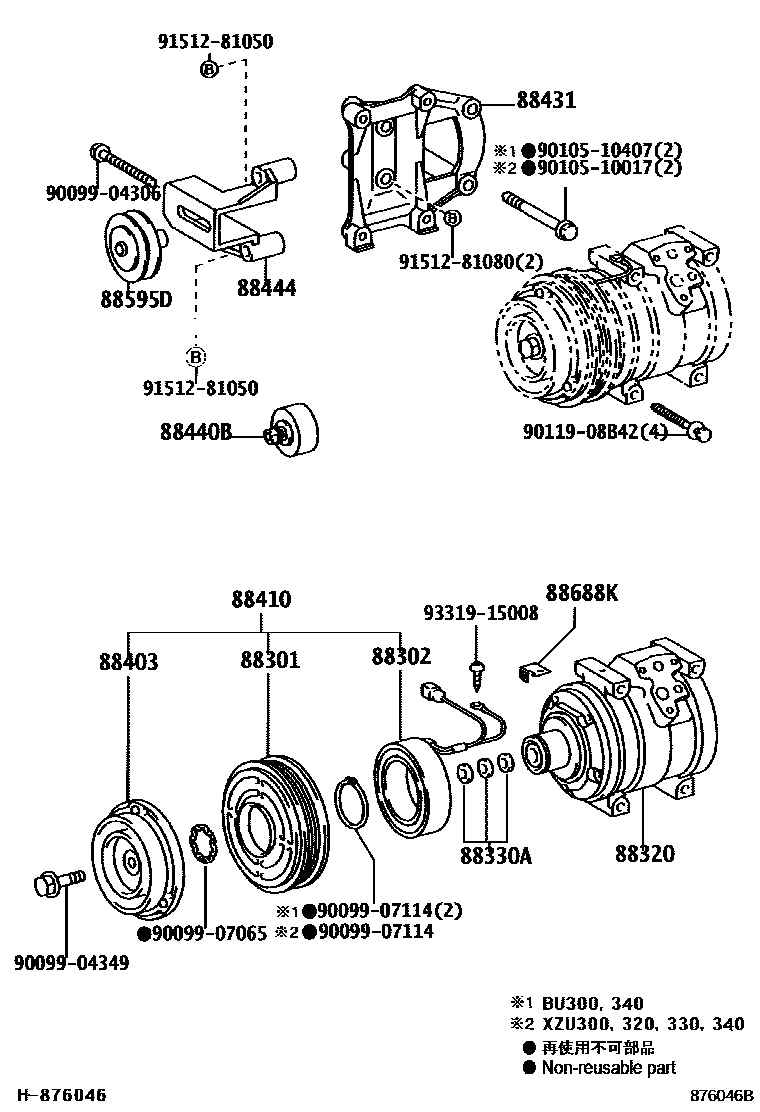

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-37010i200212-200401

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-60090i200212-200401

88320COMPRESSOR ASSY, COOLER

main88320-37070i200212-200610

main88320-37110i200312-200812

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200212-200812

main88335-14020i200212-200610

W(MANUAL AIR CONDITIONER)

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011i200212-200401

88410CLUTCH ASSY, MAGNET

main88410-17100i200312-200812

main88410-37080i200212-200610

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-37080i200212-200610

main88431-37130i200312-200901

88440BPULLEY ASSY, IDLE

main88440-37030i200212-200610

main88440-37120i200312-200901

88444BRACKET, IDLE PULLEY

main88444-37120i200212-200610

main88444-37160i200312-200901

88595DPULLEY ASSY, IDLE

main88440-35010i200212-200610

88688KBRACKET, COOLER COMPRESSOR

main88688-2D770i200212-200401

main88688-3V580i200312-200812

9009904306

main90099-04306

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9010510017

main90105-10017

9010510407

main90105-10407

9011908B42

main90119-08B42

9151281050

main91512-81050

9151281080

main91512-81080

9331915008

main93319-15008

21 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota DYNA

This section contains 23 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota DYNA. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
