Toyota DYNA — HEATING & AIR CONDITIONING - COMPRESSOR

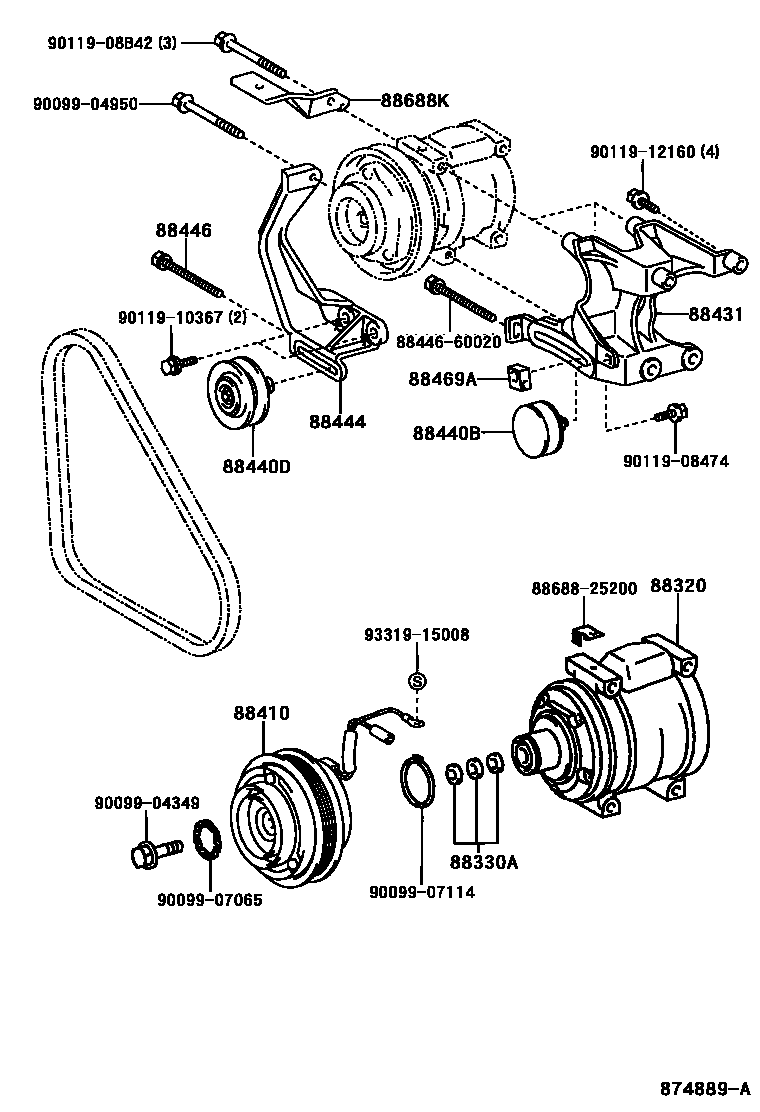

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-25110i200108

main88320-37080i200208-200412

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200208

88410CLUTCH ASSY, MAGNET

main88410-25150i200208-200412

main88410-28200i200108

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-25230i200208-200412

main88431-25240i200108-200308

main88431-35250i201610

88440BPULLEY ASSY, IDLE

main88440-26070i200208-200412

88440DPULLEY ASSY, IDLE NO.2

main88440-25060i200108-200308

main88440-35030i200208-200412

main88440-35120i200308

88444BRACKET, IDLE PULLEY

main88444-25080i200107-200412

88446BOLT, IDLE PULLEY

main88446-35030i200208-200412

88469ACOLLAR, ADJUSTING

main88469-30280i200208-200412

88688KBRACKET, COOLER COMPRESSOR

main88688-25310i200208-200412

main88688-25320i200108-201502

main88688-25440i201610

8844660020BOLT, IDLE PULLEY

main88446-60020

8868825200BRACKET, COOLER DIAPHRAGM

main88688-25200

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9011908474

main90119-08474

9011908B42

main90119-08B42

9011910367

main90119-10367

9011912160

main90119-12160

9331915008

main93319-15008

21 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota DYNA

This section contains 24 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota DYNA. Key components include: WATER PUMP, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1.
