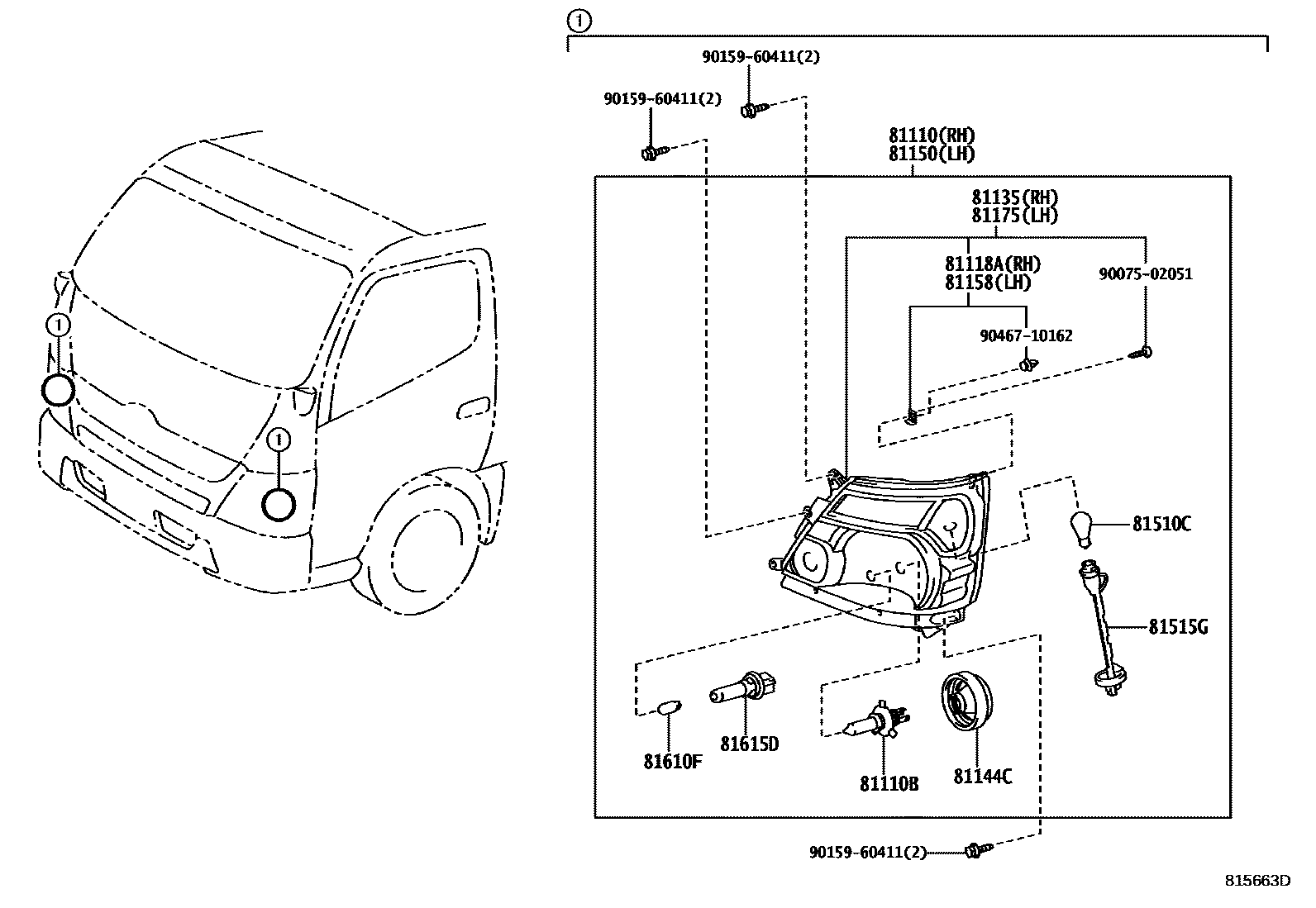

Toyota DYNA — HEADLAMP
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
24V 75/70W,*HAL *WH
81118ABRACKET, HEADLAMP, RH
81135UNIT ASSY, HEADLAMP, RH
81144CCOVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
81158BRACKET, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
24V 21W
81515GSOCKET & WIRE, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
24V 5W
81615DSOCKET, CLEARANCE LAMP
9007502051
main90075-02051
9015960411
main90159-60411
9046710162
main90467-10162
15 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota DYNA
This section contains 18 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BRACKET, HEADLAMP, RH, UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP BACK, NO.1.
