Toyota DYNA — HEADLAMP

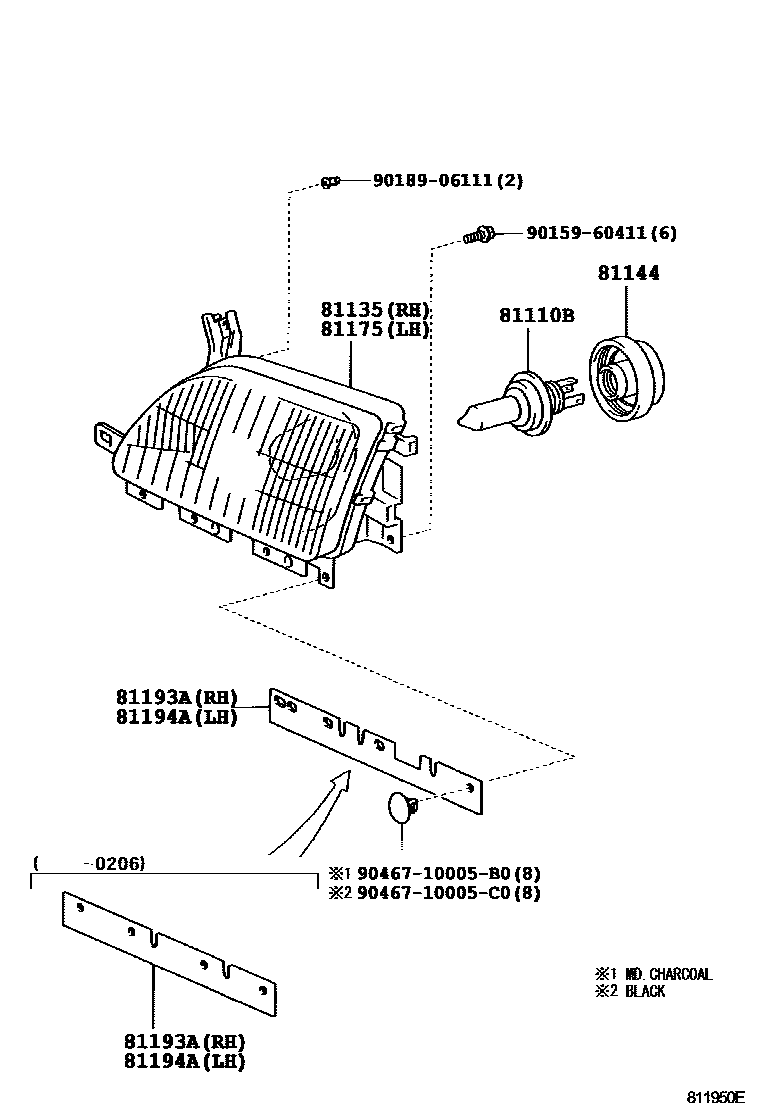

Parts diagram

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17019×2i200110-200708

24V 75/70W,*HAL *WH

81135UNIT ASSY, HEADLAMP, RH

main81130-37110i200110-200212

main81130-37120i200212-200610

main81130-37180i200212-200610

W(HEADLAMP LEVELING)

main81130-37181i201002-201106

W(HEADLAMP LEVELING)

main81130-37210i200212-200412

main81130-37211i200610-201106

main81130-37230i200212-200412

main81130-37231i200501-200610

main81130-37240i200610-201002

ALGERIA SPEC

main81130-37241i201002-201106

ALGERIA SPEC

main81130-37340i200701-201002

main81130-37341i201002-201208

81144COVER, HEADLAMP, NO.1

main81139-37110×2i200110-200701

81175UNIT ASSY, HEADLAMP, LH

main81170-37111i200110-200212

main81170-37121i200212-200610

main81170-37180i200212-200610

W(HEADLAMP LEVELING)

main81170-37181i201002-201106

W(HEADLAMP LEVELING)

main81170-37210i200212-200501

main81170-37211i200610-201106

main81170-37230i200212-200412

main81170-37231i200501-200610

main81170-37240i200610-201002

ALGERIA SPEC

main81170-37241i201002-201106

ALGERIA SPEC

main81170-37340i200701-201002

main81170-37341i201002-201208

81193APROTECTOR, HEADLAMP, RH

main81193-37011i200110-200206

main81193-37030i200110-200206

main81193-37040i200212-200505

main81193-37050i200206-200610

main81193-37060i200506-200802

81194APROTECTOR, HEADLAMP, LH

main81193-37040i200212-200505

main81193-37050i200206-200212

main81193-37060i200610-201106

main81194-37012i200110-200206

main81194-37030i200110-200206

9015960411

main90159-60411

9018906111

main90189-06111

9046710005B0

main90467-10005B0

9046710005C0

main90467-10005C0

10 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota DYNA

This section contains 24 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1, COVER, HEADLAMP SOCKET, UNIT ASSY, HEADLAMP, LH.
