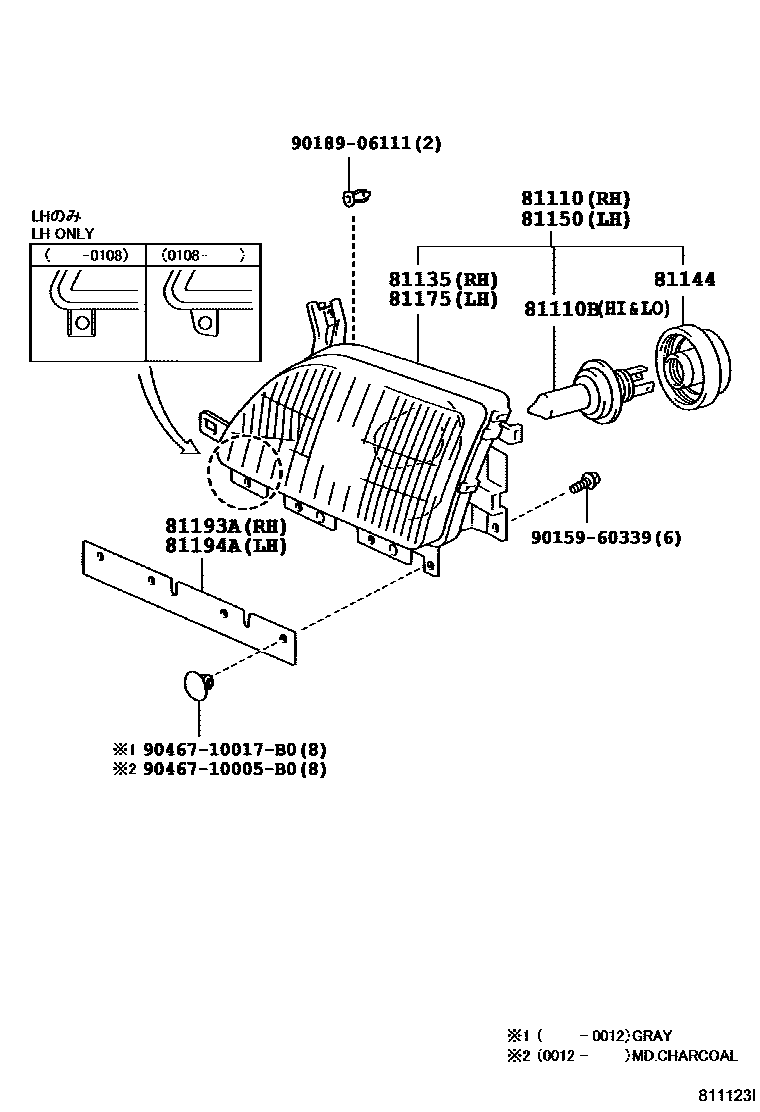

Toyota DYNA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-37110i200010-200206

main81110-37160i200010-200206

DISCHARGE HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17019×2i200010-200206

24V 75/70W,*HAL *WH

main90981-17022×2i200010-200206

24V 70W,DISCHARGE HEADLAMP

81135UNIT ASSY, HEADLAMP, RH

main81130-37110i200010-200206

main81130-37160i200010-200206

DISCHARGE HEADLAMP

81144COVER, HEADLAMP, NO.1

main81139-37110×2i200010-200206

81150HEADLAMP ASSY, LH

main81150-37110i200010-200108

main81150-37111i200108-200206

main81150-37160i200010-200206

W(HALOGEN HEADLAMP)

81175UNIT ASSY, HEADLAMP, LH

main81170-37110i200010-200108

main81170-37111i200108-200206

main81170-37160i200010-200206

DISCHARGE HEADLAMP

81193APROTECTOR, HEADLAMP, RH

main81193-37011i200010-200206

main81193-37020i200010-200206

DISCHARGE HEADLAMP

81194APROTECTOR, HEADLAMP, LH

main81194-37011i200010-200107

main81194-37012i200107-200206

main81194-37020i200010-200206

DISCHARGE HEADLAMP

9015960339

main90159-60339

9018906111

main90189-06111

9046710005B0

main90467-10005B0

9046710017B0

main90467-10017B0

12 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota DYNA

This section contains 20 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB, DISCHARGE HEADLAMP.
