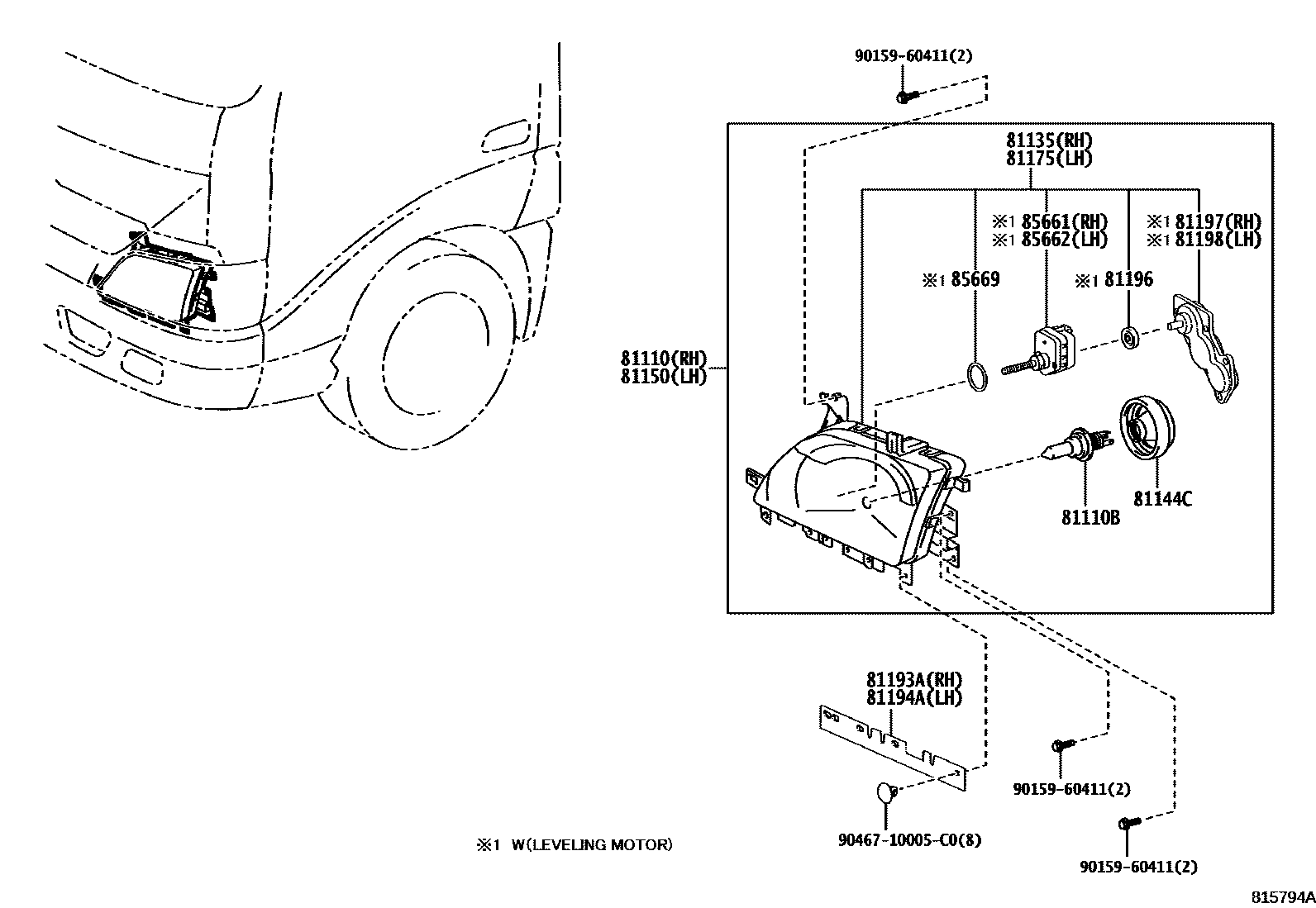

Toyota DYNA — HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-37120iWU600,650,XZU600,650201107-201705

main81110-37670iXZU600..GEN201911

main81110-37690iXZU600..GCC;WU600,650,XZU650201705-202005

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17019iXZU600..GCC;WU600,650,XZU650201107-202005

24V 75/70W,*HAL *WH

81135UNIT ASSY, HEADLAMP, RH

main81130-37120iWU600,650,XZU600,650201107-201705

main81130-37670iXZU600..GEN201911

main81130-37690iXZU600..GCC;WU600,650,XZU650201705-202005

81144CCOVER, HEADLAMP SOCKET

main81138-37280iXZU600..GEN201705-202005

main81139-37110iWU600,650,XZU600,650201107-201705

81150HEADLAMP ASSY, LH

main81150-37121iWU600,650,XZU600,650201107-201705

main81150-37670iXZU600..GEN201911

main81150-37690iXZU600..GCC;WU600,650,XZU650201705-202005

81175UNIT ASSY, HEADLAMP, LH

main81170-37121iWU600,650,XZU600,650201107-201705

main81170-37670iXZU600..GEN201911

main81170-37690iXZU600..GCC;WU600,650,XZU650201705-202005

81193APROTECTOR, HEADLAMP, RH

main81193-37050iWU600,650,XZU600,650201107-201705

81194APROTECTOR, HEADLAMP, LH

main81193-37050iWU600,650,XZU600,650201107-201705

81196RETAINER, HEADLAMP

main81196-37010

81197BRACKET, HEADLAMP, LOWER RH

main81197-37010

81198BRACKET, HEADLAMP, LWR LH

main81198-37010

85661MOTOR, HEADLAMP LEVELING, RH

main85661-37020iXZU600..GEN201911

85662MOTOR, HEADLAMP LEVELING, LH

main85661-37020iXZU600..GEN201911

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iXZU600..GEN201911

9015960411

main90159-60411

9046710005C0

main90467-10005C0

16 parts on this diagram · 2 diagrams in section
