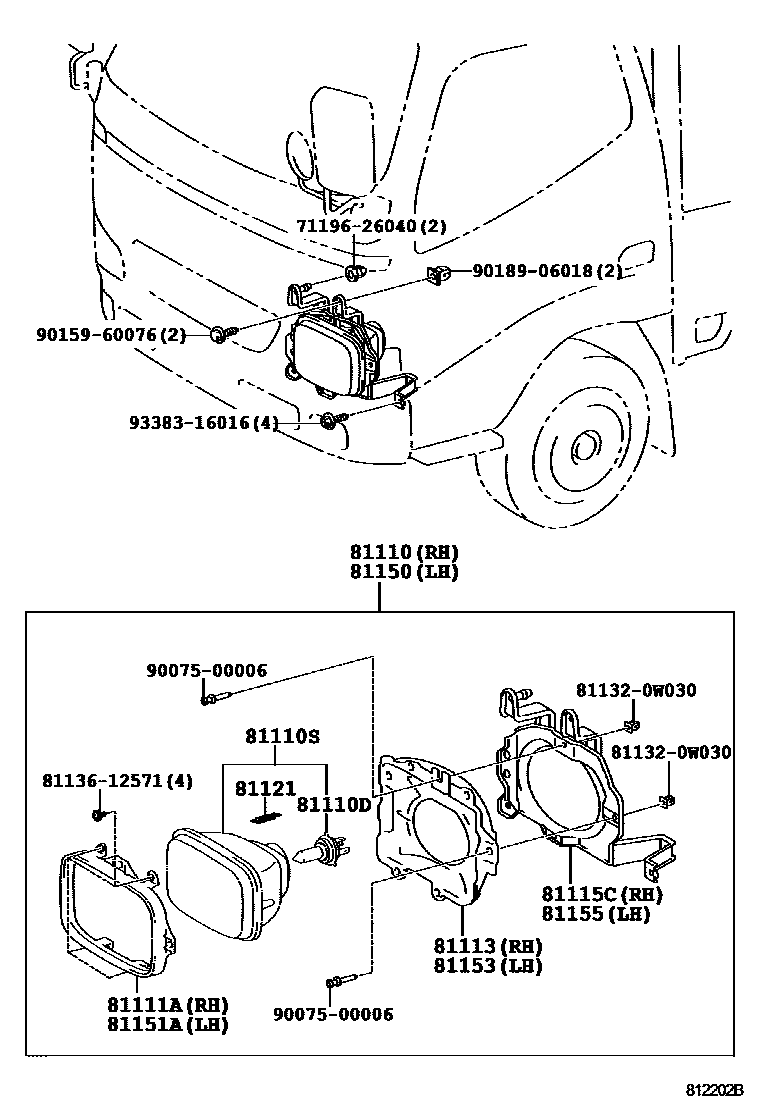

Toyota DYNA — HEADLAMP
81110HEADLAMP ASSY, RH
81110DBULB(FOR HEADLAMP, NO.2)
24V 75/70W,*HAL *WH
81110SSEALED BEAM UNIT, NO.1
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81115CHOUSING, HEADLAMP, RH
81121SPRING, HEADLAMP TENSION
81150HEADLAMP ASSY, LH
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81155HOUSING, HEADLAMP, LH
7119626040CLIP(FOR REAR SPOILER)
main71196-26040
811320W030NUT, HEADLAMP SELF LOCKING
main81132-0W030
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9007500006
main90075-00006
9015960076
main90159-60076
9018906018
main90189-06018
9338316016
main93383-16016
18 parts on this diagram · 6 diagrams in section
HEADLAMP for Toyota DYNA
This section contains 44 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH.
