Toyota DYNA — HEADLAMP

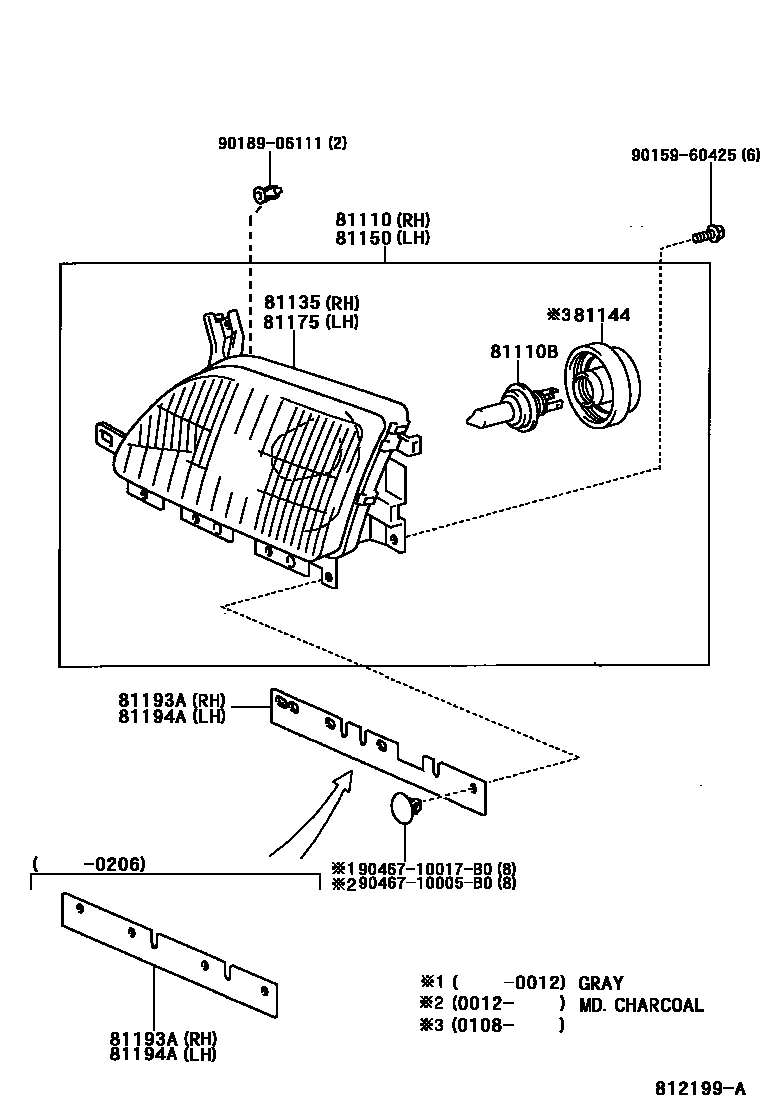

Parts diagram

81110HEADLAMP ASSY, RH

main81110-37110i200010-200206

main81110-37120i199907-200212

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17019×2i199907-200212

24V 75/70W,*HAL *WH

81135UNIT ASSY, HEADLAMP, RH

main81130-37110i200010-200206

main81130-37120i199907-200212

81144COVER, HEADLAMP, NO.1

main81139-37110×2i200108-200212

81150HEADLAMP ASSY, LH

main81150-37110i200010-200108

main81150-37111i200108-200206

main81150-37120i199907-200108

main81150-37121i200108-200212

81175UNIT ASSY, HEADLAMP, LH

main81170-37110i200010-200108

main81170-37111i200108-200206

main81170-37120i199907-200108

main81170-37121i200108-200212

81193APROTECTOR, HEADLAMP, RH

main81193-37010i199907-200005

main81193-37011i200005-200206

main81193-37050i200206-200212

81194APROTECTOR, HEADLAMP, LH

main81193-37050i200206-200212

main81194-37010i199907-200005

main81194-37011i200005-200108

main81194-37012i200108-200206

9015960425

main90159-60425

9018906111

main90189-06111

9046710005B0

main90467-10005B0

9046710017B0

main90467-10017B0

12 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota DYNA

This section contains 12 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1, HEADLAMP ASSY, LH.
