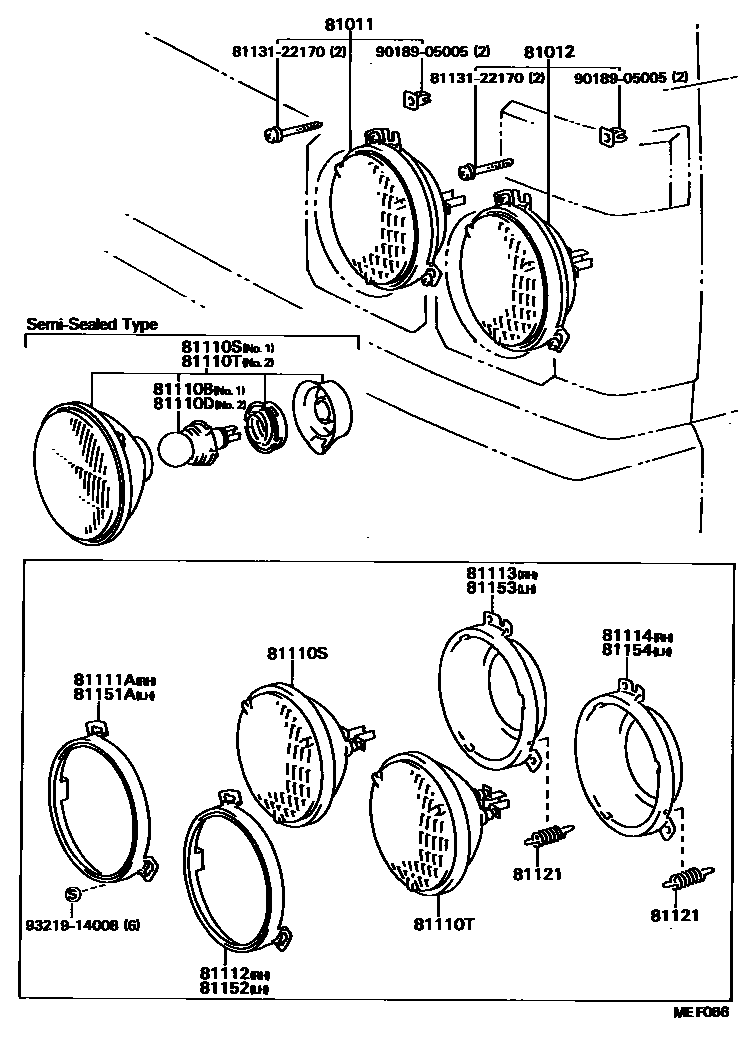

Toyota DYNA — HEADLAMP
81011HEADLAMP SUB-ASSY, NO.1
RH,SEMI-SEALED,12V,WHITE
RH,SEMI-SEALED,24V,WHITE
RH,SEMI-SEALED,12V,YELLOW
RH,SEMI-SEALED,24V,YELLOW
RH,24V,WHITE
main81011-39085iBU65..CBU;BU85..(ARL,GEN)..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD,SA198409-198608
RH,12V,WHITE
RH,*SSB,24V,WHITE,W/*HC
RH,HALOGEN,12V,WHITE
RH,24V,WHITE
main81011-95407iBU65..CBU;BU85..(ARL,GEN)..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD,SA198608-198708
RH,12V,WHITE
RH,*SSB,24V,WHITE,HALOGEN
LH,24V,WHITE
main81013-39025iBU65..CBU;BU85..(ARL,GEN)..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD,SA198409-198708
LH,12V,WHITE
LH,SEMI-SEALED,24V,YELLOW
LH,SEMI-SEALED,12V,YELLOW
LH,*SSB,24V,WHITE,W/*HC
LH,HALOGEN,12V,WHITE
LH,SEMI-SEALED,12V,WHITE
LH,SEMI-SEALED,24V,WHITE
LH,*SSB,24V,WHITE,HALOGEN
81012HEADLAMP SUB-ASSY, NO.2
RH,SEMI-SEALED,12V,WHITE
RH,SEMI-SEALED,24V,WHITE
RH,SEMI-SEALED,12V,YELLOW
RH,SEMI-SEALED,24V,YELLOW
RH,12V,WHITE
RH,12V,WHITE
RH,24V,WHITE
RH,*SSB,24V,WHITE,W/*HC
RH,HALOGEN,12V,WHITE
RH,SEMI-SEALED,12V,WHITE
RH,12V,WHITE
RH,*SSB,24V,WHITE,HALOGEN
LH,12V,WHITE
LH,12V,WHITE
LH,SEMI-SEALED,24V,YELLOW
LH,SEMI-SEALED,12V,YELLOW
LH,24V,WHITE
LH,*SSB,24V,WHITE,W/*HC
LH,HALOGEN,12V,WHITE
LH,SEMI-SEALED,12V,WHITE
LH,SEMI-SEALED,12V,WHITE
LH,SEMI-SEALED,24V,WHITE
LH,*SSB,24V,WHITE,HALOGEN
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W,WHITE
12V 45/40W,YELLOW,12V 45/40W,YELLOW
24V 55/50W,WHITE,24V 55/50W,WHITE
24V 55/50W,YELLOW,24V 55/50W,YELLOW
24V 70W,*HAL *WH,24V 70W,WHITE,HALOGEN
81110DBULB(FOR HEADLAMP, NO.2)
12V 45/40W,WHITE,12V 45/40W,WHITE
12V 45/40W,YELLOW,12V 45/40W,YELLOW
24V 55/50W,WHITE,24V 55/50W,WHITE
24V 55/50W,YELLOW,24V 55/50W,YELLOW
24V 75/70W,*HAL *WH,24V 75/70W,WHITE,HALOGEN
81110SSEALED BEAM UNIT, NO.1
12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE
12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW
main90981-02039×2iBU65..CBU;BU85..(ARL,GEN)..(CBU,IV3);BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD,SA198409-198708
12V 37.5W,*WB,12V 37.5W,WHITE
12V 37.5W,*HAL,*WB,12V 37.5W,HALOGEN,WHITE
24V 55/50W,*WSB,24V 55/50W,SEMI-SEALED,WHITE
24V 55/50W,*YSB,24V 55/50W,SEMI-SEALED,YELLOW
24V 40W,*WB,24V 40W,WHITE
24V 55/50W,*WSB,24V 55/50W,*SSB,WHITE,W/*HC
24V 70W,*HWS,24V 70W,*SSB,WHITE,HALOGEN
81110TSEALED BEAM UNIT, NO.2
12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE
12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW
12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE
12V 37.5/50W,*WB,12V 37.5/50W,WHITE
12V 37.5/50W,*WB,12V 37.5/50W,WHITE
12V37.5/60W,*HAL,*WB,12V 37.5W/60W,HALOGEN,WHITE
24V 55/50W,*WSB,24V 55/50W,SEMI-SEALED,WHITE
24V 55/50W,*YSB,24V 55/50W,SEMI-SEALED,YELLOW
24V 40/60W,*WB,24V 40/60W,WHITE
24V 55/50W,*WSB,24V 55/50W,*SSB,WHITE,W/*HC
24V 75/70W,*SSB,WHITE,HALOGEN
81111ARING, SEALED BEAM RETAINING, NO.1 RH
W/HEADLAMP CLEANER
81112RING, SEALED BEAM RETAINING, NO.2 RH
W/HEADLAMP CLEANER
81113RING, SEALED BEAM MOUNTING, NO.1 RH
W/HEADLAMP CLEANER
81114RING, SEALED BEAM MOUNTING, NO.2 RH
W/HEADLAMP CLEANER
81121SPRING, HEADLAMP TENSION
W/HEADLAMP CLEANER
LH
RH
81151ARING, SEALED BEAM RETAINING, NO.1 LH
W/HEADLAMP CLEANER
81152RING, SEALED BEAM RETAINING, NO.2 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
W/HEADLAMP CLEANER
81154RING, SEALED BEAM MOUNTING, NO.2 LH
W/HEADLAMP CLEANER
8113122170SCREW, HEADLAMP ADJUSTING
main81131-22170
9018905005
main90189-05005
9321914008
main93219-14008
18 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota DYNA
This section contains 18 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: HEADLAMP SUB-ASSY, NO.1, HEADLAMP SUB-ASSY, NO.2, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), SEALED BEAM UNIT, NO.1.
