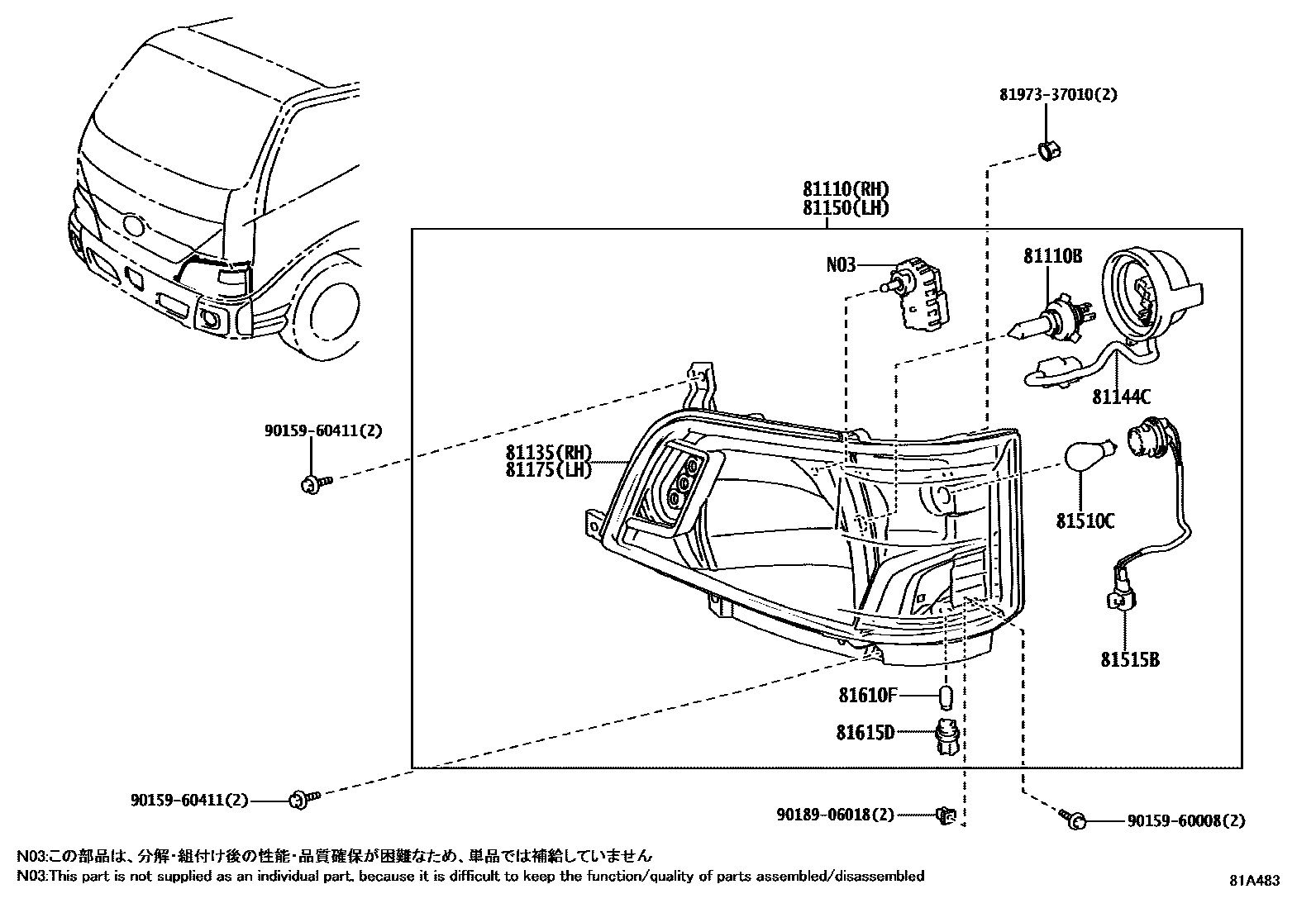

Toyota DYNA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-37660i202108-202305

main81110-37700i202202-202503

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2i202108-202305

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-37660i202108-202305

main81130-37700i202202-202503

81144CCOVER, HEADLAMP SOCKET

main81138-37280×2i202108-202305

81150HEADLAMP ASSY, LH

main81150-37660i202108-202305

main81150-37700i202202-202503

81175UNIT ASSY, HEADLAMP, LH

main81170-37660i202108-202305

main81170-37700i202202-202503

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15028×2i202108-202305

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81125-37640×2i202108-202305

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i202108-202305

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60020×2i202108-202305

8197337010

main81973-37010

9015960008

main90159-60008

9015960411

main90159-60411

9018906018

main90189-06018

14 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota DYNA

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET, HEADLAMP ASSY, LH.
