Toyota DYNA — HEADLAMP

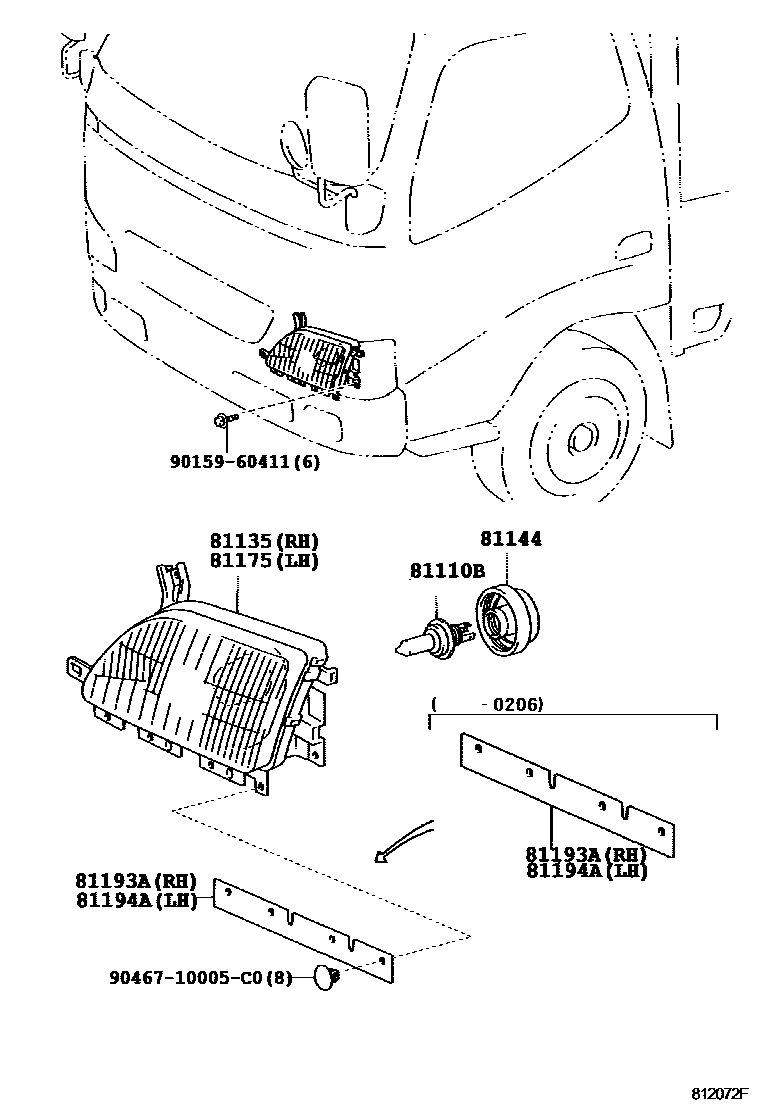

Parts diagram

81110HEADLAMP ASSY, RH

main81110-25220i201207-201307

main81110-25221i201308-201610

main81110-37201i200501-201005

main81110-37660i201610-202111

main81110-37700i201610

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2i200107

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-25180i200107-201006

main81130-25181i201006-201610

main81130-25190i200308-200501

main81130-25191i200501-201205

main81130-25192i201205-201307

main81130-25193i201307-201610

main81130-37170i200107-201502

main81130-37660i201610-202111

main81130-37700i201610

81144COVER, HEADLAMP, NO.1

main81139-37110×2i200107-200308

81175UNIT ASSY, HEADLAMP, LH

main81170-25160i200107-201006

main81170-25161i201006-201610

main81170-25170i200308-200501

main81170-25171i200501-201205

main81170-25172i201205-201307

main81170-25173i201307-201610

main81170-37171i200107-201502

main81170-37660i201610-202111

main81170-37700i201610

81193APROTECTOR, HEADLAMP, RH

main81193-37011i200107-200206

main81193-37030i200108-200206

W(HEADLAMP LEVELING)

main81193-37040i200308-200505

main81193-37050i200206-201609

main81193-37060i200505-201610

81194APROTECTOR, HEADLAMP, LH

main81193-37040i200308-200505

main81193-37050i200206-200308

main81193-37060i200505-201610

main81194-37012i200107-200206

main81194-37030i200108-200206

W(HEADLAMP LEVELING)

9015960411

main90159-60411

9046710005C0

main90467-10005C0

9 parts on this diagram · 5 diagrams in section

HEADLAMP for Toyota DYNA

This section contains 24 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT, HEADLAMP, RH, UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1.
