Toyota DYNA — FUEL FILTER

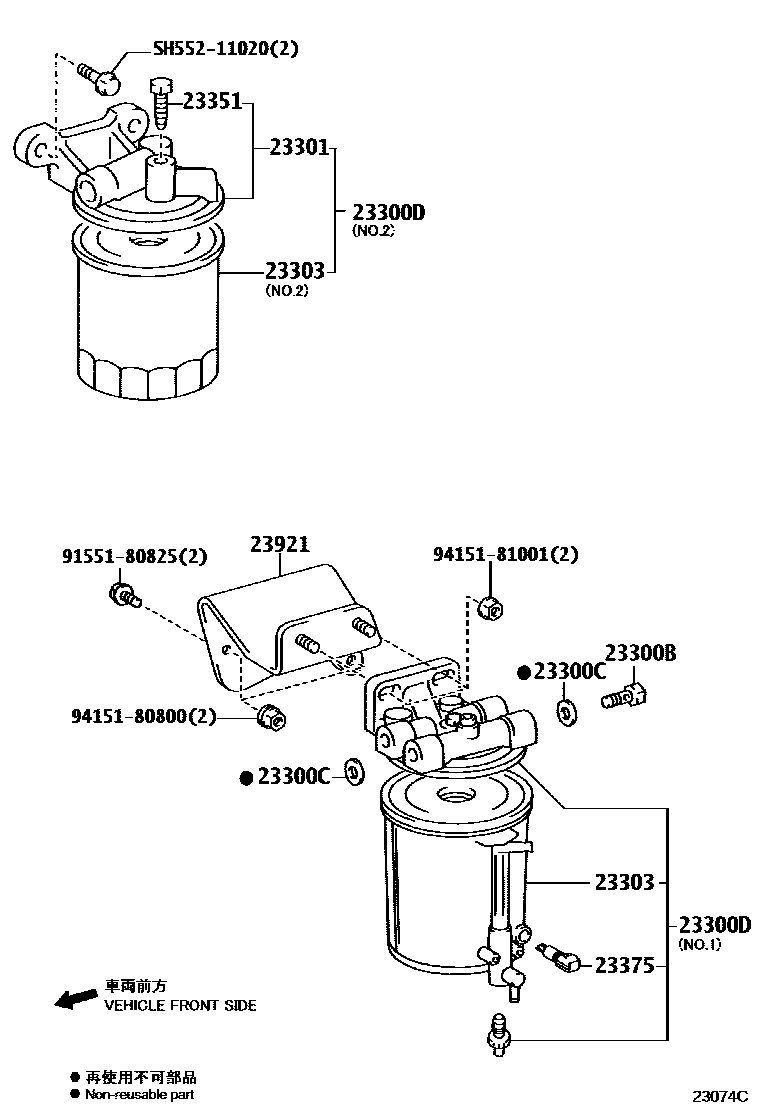

Parts diagram
23300FILTER ASSY, FUEL
main23300-78470i201107-201311
main23300-78471i201312-201409
main23300-78472i201410-201503
main23300-78473i201504-201805
main23300-78474i201806-202005
main23300-78480supersedes 23300-78473i201306-201311
FUEL HEATER-WITH
main23300-78481supersedes 23300-78473i201312-201409
FUEL HEATER-WITH
main23300-78482supersedes 23300-78473i201410-201503
FUEL HEATER-WITH
main23300-78483supersedes 23300-78473i201504-201512
FUEL HEATER-WITH
23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)
mainSZ40114024i201107-202005
23300CGASKET, NIPPLE UNION(FOR FUEL)
mainSZ43014003×2i201107-202005
23300DFILTER ASSY, FUEL(FOR DIESEL)
main23300-78110i201107-202005
NO.1
main23300-78500i201911-202009
main23300-78501i202010
main23300-E0382i201306-201401
main23300-E0570i201401-201512
mainS233001912i201107-202005
NO.2
mainS233002360i201107-202005
NO.2
23301BODY SUB-ASSY, FUEL FILTER
main23301-78470i201107-201304
main23301-78471i201304-201312
main23301-78472i201312-201505
main23301-78473i202001-202005
main23301-78500i201911-202101
main23301-78501i202101
mainS233101420i201107-202005
mainS233101660i201107-202005
main23301-78481supersedes 23301-78472i201306-201312
FUEL HEATER-WITH
main23301-78482supersedes 23301-78472i201312-201512
FUEL HEATER-WITH
23303ELEMENT SUB-ASSY, FUEL FILTER
main23304-78090i201107-201209
main23304-78091i201209-201505
main23304-78110i201107-202005
NO.1
mainS234011133i201107-202005
NO.2
mainS234011510i201107-202005
NO.2
23351PLUG, AIR VENT
mainS233161040i201107-202005
23375SENSOR, FUEL FILTER
main23375-78110i201107-202005
23921SUPPORT, FUEL FILTER
main23264-E0220i201107-202005
NO.2
main23921-78470i201107-202005
NO.1
main23921-78570i201107-201512
main23921-78730i201911
TYPE B:REFER ILLUST.
9155180825
main91551-80825
9415180800
main94151-80800
9415181001
main94151-81001
SH55211020
mainSH552-11020

13 parts on this diagram · 6 diagrams in section

FUEL FILTER for Toyota DYNA

This section contains 46 genuine Toyota parts for the FUEL FILTER system of the Toyota DYNA. Key components include: FLOAT, INJECTION PUMP ASSEMBLY, VALVE SUB-ASSY, BRACKET, FUEL FILTER, FILTER ASSY, FUEL.
