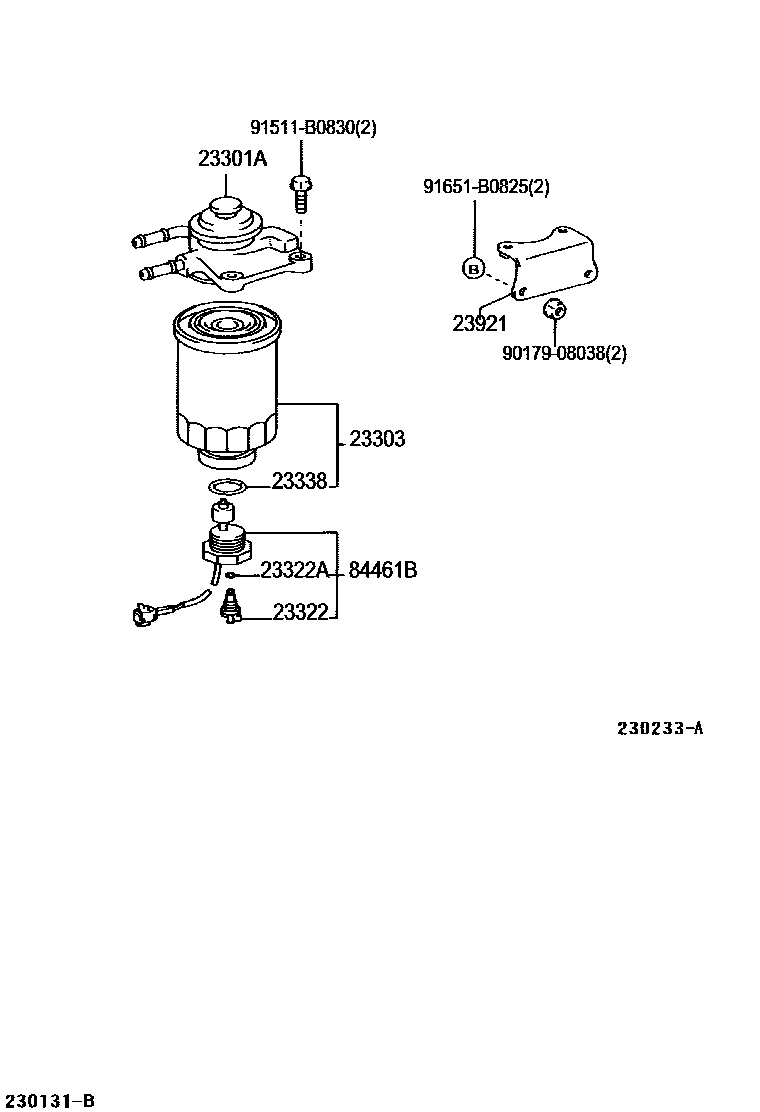

Toyota DYNA — FUEL FILTER
23301BODY SUB-ASSY, FUEL FILTER
COLD AREA SPEC
23301ACAP ASSY, FUEL FILTER
23303ELEMENT SUB-ASSY, FUEL FILTER
NO.1
NO.2
NO.2
NO.2
23322PLUG, DRAIN(FOR FUEL FILTER)
23322ARING, O(FOR DRAIN PLUG)
23338GASKET(FOR WARNING SWITCH)
23921SUPPORT, FUEL FILTER
NO.1
NO.2
NO.1
NO.2
84461BSWITCH, LEVEL WARNING
9017908038
main90179-08038
91511B0830
main91511-B0830
91651B0825
main91651-B0825
11 parts on this diagram · 7 diagrams in section
FUEL FILTER for Toyota DYNA
This section contains 48 genuine Toyota parts for the FUEL FILTER system of the Toyota DYNA. Key components include: INJECTION PUMP ASSEMBLY, BRACKET(FOR FUEL FILTER SUPPORT), FILTER ASSY, FUEL, UNION, NIPPLE(FOR FUEL FILTER INLET), UNION, NIPPLE(FOR FUEL FILTER OUTLET).
