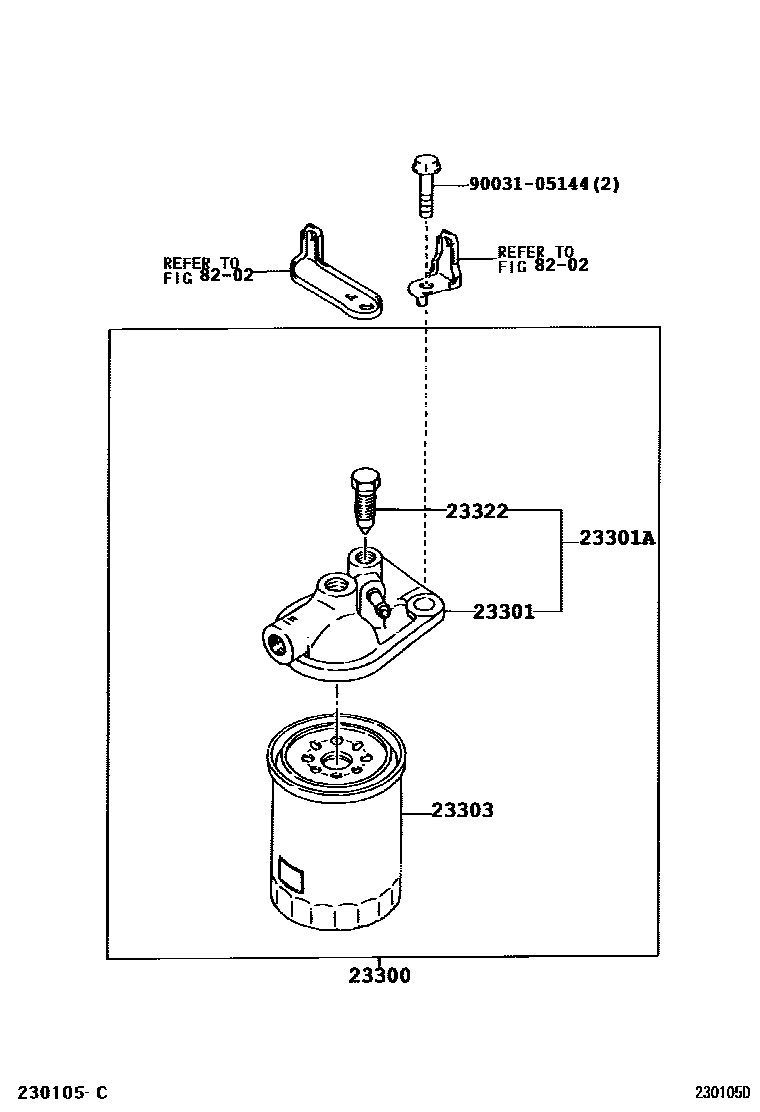

Toyota DYNA — FUEL FILTER

23300FILTER ASSY, FUEL

main23300-78100i200010-200206

23301BODY SUB-ASSY, FUEL FILTER

main23311-89101i200010-200206

23301ACAP ASSY, FUEL FILTER

main23310-89101i200010-200206

main23380-78041i200010-200206

W(FUEL HEATER)

main23380-78050i200010-200206

23303ELEMENT SUB-ASSY, FUEL FILTER

main23304-89101i200010-200206

main23390-64480i200010-200206

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-78030i200010-200206

main23388-64470i200010-200206

8202WIRING & CLAMP

→ Go to FIG 82-02

9003105144

main90031-05144

7 parts on this diagram · 2 diagrams in section

FUEL FILTER for Toyota DYNA

This section contains 18 genuine Toyota parts for the FUEL FILTER system of the Toyota DYNA. Key components include: FILTER ASSY, FUEL, BODY SUB-ASSY, FUEL FILTER, CAP ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER).
