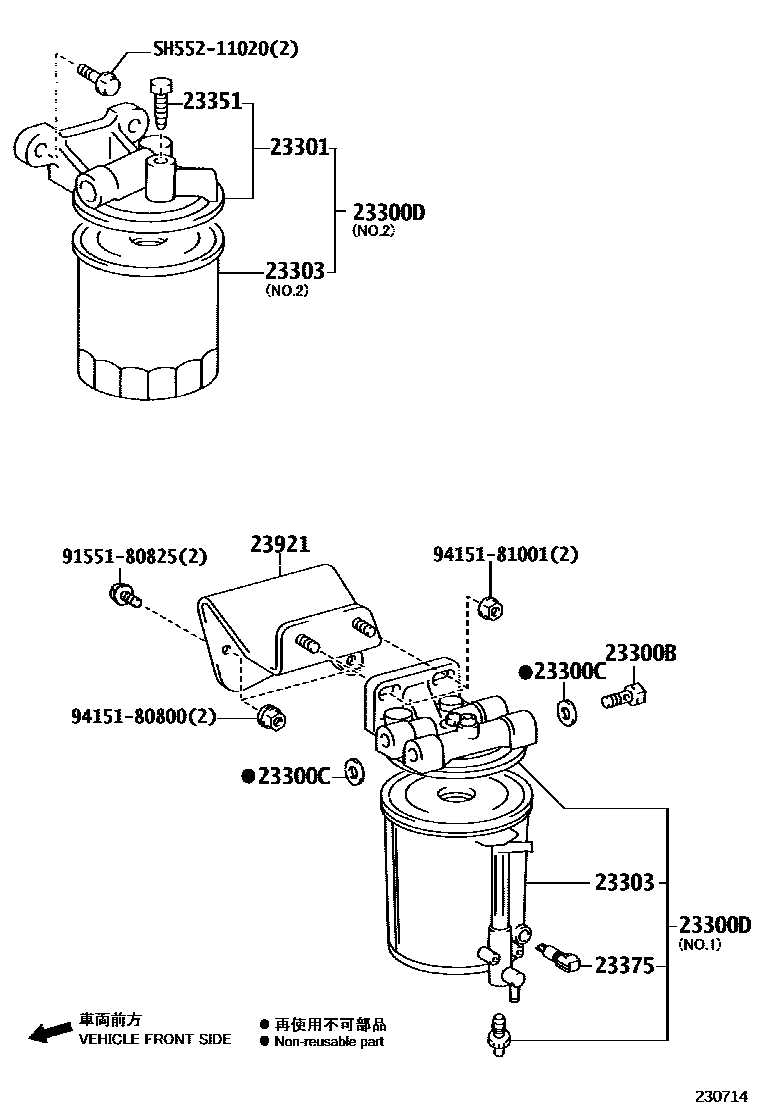

Toyota DYNA — FUEL FILTER

0001 1 0002 1 0003 1 0004 1FRAME SIDE 0005 1ENGINE SIDE

23300FILTER ASSY, FUEL

main23300-78473iN04C..XZU600,650201605-201805

sub23300-78474

main23300-78474iN04C..XZU600,650..GCC201806-202005

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

mainSZ40114024iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23300CGASKET, NIPPLE UNION(FOR FUEL)

mainSZ43014003iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-78110iW04D..WU600,650201107-202005

NO.1

main23300-78500iN04C..XZU600..GEN201911-202009

sub23300-78501

main23300-78501iN04C..XZU600202010

mainS233001912iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

NO.2

mainS233002360iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

NO.2

23301BODY SUB-ASSY, FUEL FILTER

main23301-78472iN04C..XZU600,650..GCC201605-202001

sub23301-78473

main23301-78473iN04C..XZU600,650..GCC202001-202005

main23301-78500iN04C..XZU600..GEN201911-202101

sub23301-78501

main23301-78501iN04C..XZU600202101

mainS233101420iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

mainS233101660iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

23303ELEMENT SUB-ASSY, FUEL FILTER

main23304-78091iN04C..XZU600,650..GCC201605-202005

main23304-78110iW04D..WU600,650201107-202005

NO.1

mainS234011133iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

NO.2

mainS234011510iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

NO.2

23351PLUG, AIR VENT

mainS233161040iW04D..WU600,650201107-202005

sub23322-78030

23375SENSOR, FUEL FILTER

main23375-78110iW04D..WU600,650201107-202005

23921SUPPORT, FUEL FILTER

main23264-E0220iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

NO.2

main23921-78430iW04D..WU600,650201107-202005

NO.1

main23921-78570iN04C..XZU600,650..GCC201605-202005

main23921-78630iN04C..XZU600..GEN201911

9155180825

main91551-80825

9415180800

main94151-80800

9415181001

main94151-81001

SH55211020

mainSH552-11020

13 parts on this diagram · 5 diagrams in section
