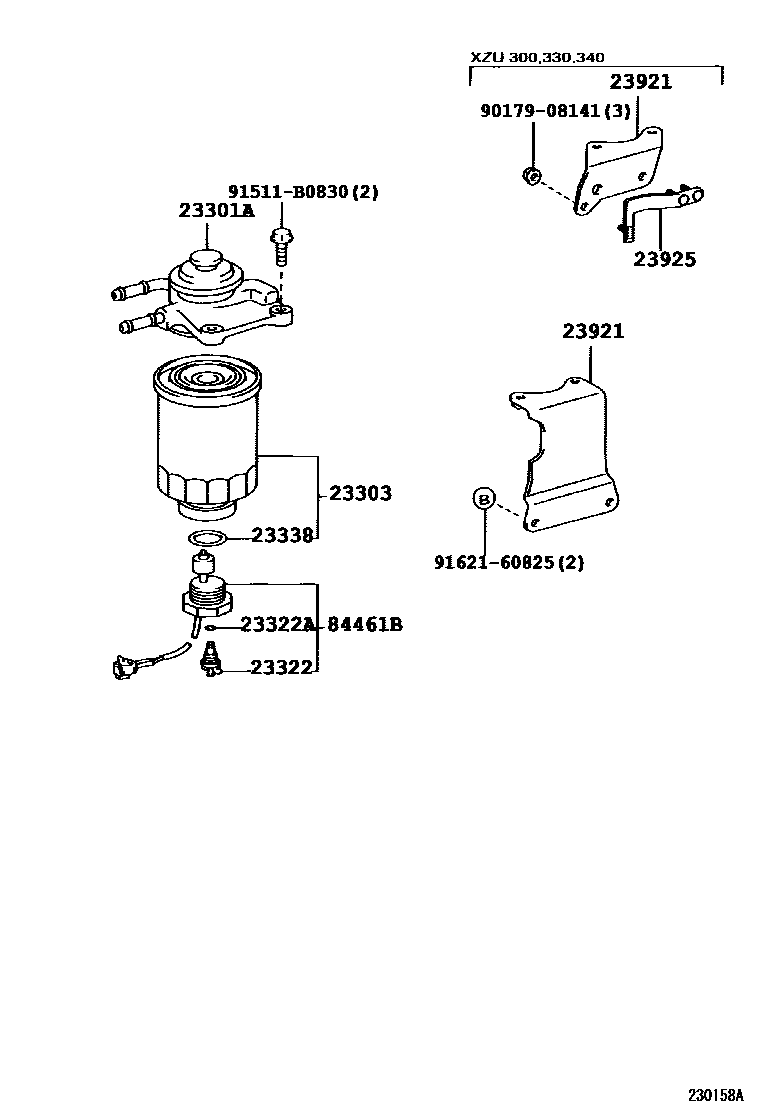

Toyota DYNA — FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23380-78041i200010-200206

W(FUEL HEATER)

main23380-78050i199907-200212

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64480i199907-200212

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i199907-200212

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i199907-200212

23338GASKET(FOR WARNING SWITCH)

main23344-64010i199907-200212

23921SUPPORT, FUEL FILTER

main23921-78010i200010-200206

TYPE A:REFER TO ILLUSTRATION

main23921-78070i199907-200212

main23921-78100i200010-200206

TYPE B:REFER TO ILLUSTRATION

main23921-78110i199907-200212

23925STAY, FUEL FILTER SUPPORT

main23925-78010i200010-200206

main23925-78030i199907-200206

main23925-78031i200206-200212

84461BSWITCH, LEVEL WARNING

main84461-28040i199907-200212

9017908141

main90179-08141

91511B0830

main91511-B0830

9162160825

main91621-60825

11 parts on this diagram · 2 diagrams in section

FUEL FILTER for Toyota DYNA

This section contains 15 genuine Toyota parts for the FUEL FILTER system of the Toyota DYNA. Key components include: CAP ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER), RING, O(FOR DRAIN PLUG), GASKET(FOR WARNING SWITCH).
