Toyota DYNA — FUEL FILTER

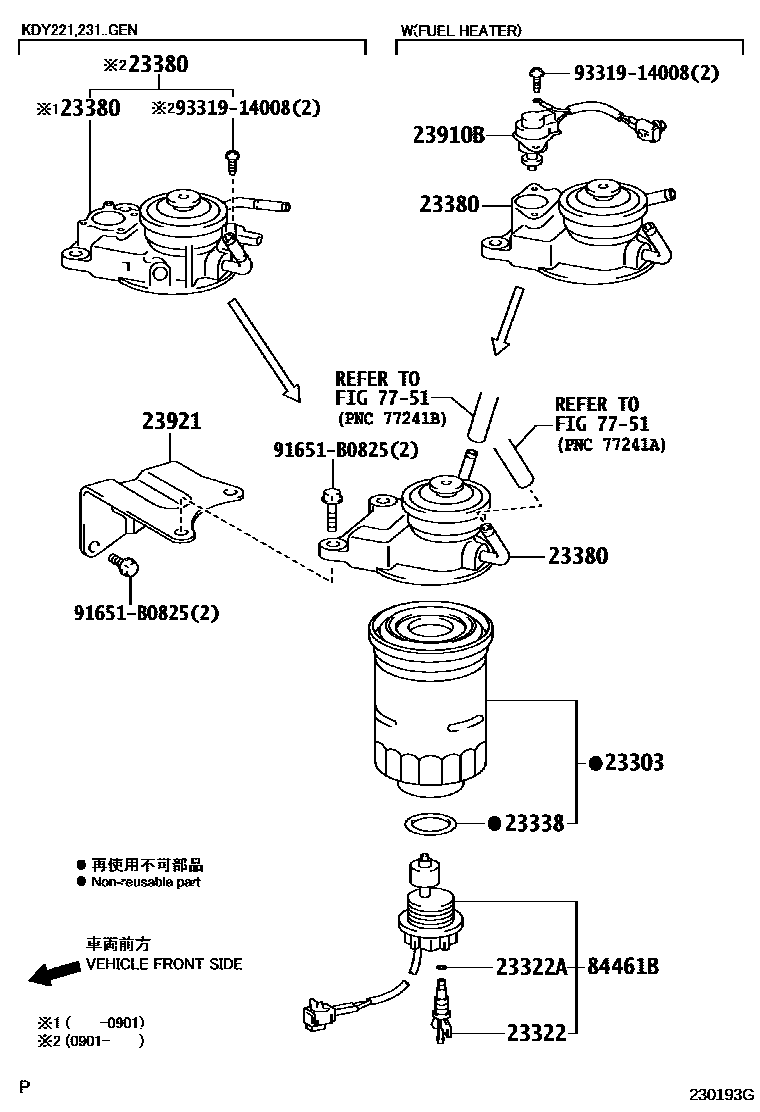

Parts diagram

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-30090i200812-201502

W(FUEL HEATER)

main23390-30180i200404-200812

W(FUEL HEATER)

main23390-64480i200107-202111

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i200108

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i200107-201203

23338GASKET(FOR WARNING SWITCH)

main23344-64010i200107-202111

23380CAP ASSY, FUEL FILTER

main23380-30080i200108-200812

main23380-30081i200812-201502

main23380-30090i200108-200812

W(FUEL HEATER)

main23380-30091i200812-201502

W(FUEL HEATER)

main23380-30320i200609-200901

main23380-30321i200901

main23380-5B240i200107-200901

main23380-5B241i200901-202111

23910BHEATER ASSY, FUEL

main23910-67060i200108-201502

23921SUPPORT, FUEL FILTER

main23921-54510i200108-202111

main23921-54520i200107

7751FUEL TANK & TUBE

→ Go to FIG 77-51

84461BSWITCH, LEVEL WARNING

main84461-28040i200107-201202

main84461-28041i201203-202111

91651B0825

main91651-B0825

9331914008

main93319-14008

11 parts on this diagram · 2 diagrams in section

FUEL FILTER for Toyota DYNA

This section contains 12 genuine Toyota parts for the FUEL FILTER system of the Toyota DYNA. Key components include: ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER), RING, O(FOR DRAIN PLUG), GASKET(FOR WARNING SWITCH), CAP ASSY, FUEL FILTER.
