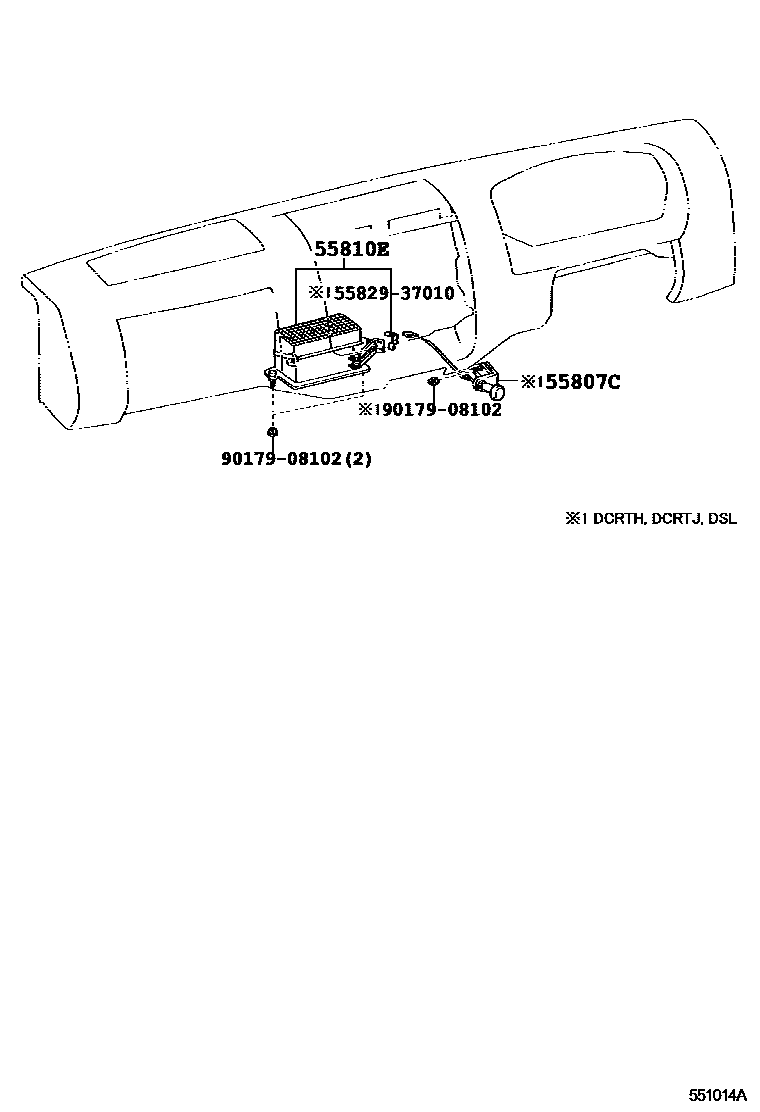

Toyota DYNA — FRONT VENTILATOR

55807CCABLE SUB-ASSY, AIR CONTROL

main55807-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main55807-0W020iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

55810EVENTILATOR ASSY, FRONT

main55810-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main55840-0W010iWU302,342,352..DCRTP,DCRTR200912

5582937010CLAMP, VENTILATOR CONTROL CABLE, LOWER

main55829-37010

9017908102

main90179-08102

4 parts on this diagram · 1 diagram in section
