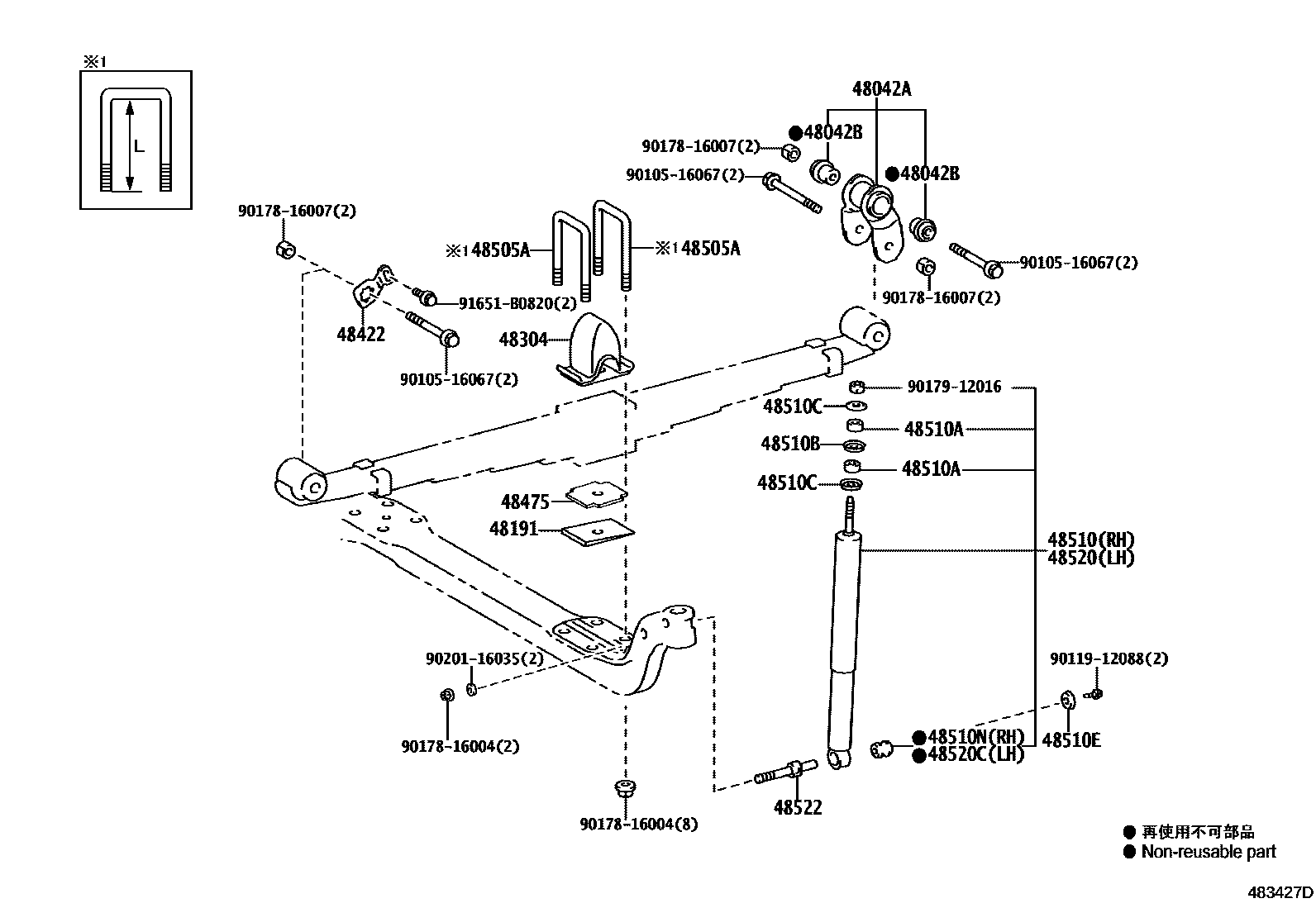

Toyota DYNA — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1W(STABILIZER) 0003 13-LEAF 0004 16-LEAF,MULTI LEAF REIN TENSIO0005 16-LEAF

48042ASHACKLE SUB-ASSY, FRONT SPRING, NO.2

main48042-37020iXZU600..GCC;WU600,650,XZU650201107-202005

48042BBUSH, FRONT SPRING NO.2 SHACKLE

main90389-16026iXZU600..GEN201107-202005

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-37060iWU600..ST201107-202005

main48191-37110iXZU600..GCC;WU600,650,XZU650..WT201107-202005

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-37040iXZU600..GCC;WU600,650,XZU650201107-202005

48422SUPPORT, FRONT SPRING PIN

main48422-37010iXZU600..GCC;WU600,650,XZU650201107-202005

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iXZU600..GCC;WU600,650,XZU650201107-202005

48505ABOLT, U(FOR FRONT SPRING)

main90117-16066iXZU600..GCC;WU600,650,XZU650..WT201107-202005

L=120,STABILIZER-WITH(FRONT),W(PNC 48475)

main90117-16066iWU600..ST201107-202005

L=120

main90117-16066iWU600..ST201107-202005

L=120,STABILIZER-WITH(FRONT)

main90117-16071iXZU600..GCC;WU600,650,XZU650..WT201107-202005

L=110

main90117-16071iXZU600..GEN201911

L=110,STABILIZER-WITH(FRONT),W(PNC 48475)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-80119iXZU600..GEN201107-202004

MARK 48511-37220

sub48511-80183

main48511-80123iWU600..ST201107-202005

MARK 48511-37280

main48511-80183iWU600,650..WT..GEN201910-202005

MARK-37220 OR -37390

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01071iXZU600..GCC;WU600,650,XZU650201107-202005

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02054iXZU600..GCC;WU600,650,XZU650201107-202005

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02009iXZU600..GCC;WU600,650,XZU650201107-202005

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03011iXZU600..GEN201107-202005

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90385-19011iXZU600..GEN201107-202005

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-80119iXZU600..GCC;WU600,650,XZU650..WT201107-202004

MARK 48511-37220

sub48511-80183

main48511-80123iWU600..ST201107-202005

MARK 48511-37280

main48511-80183iWU600,650,XZU600,650..GCC201910-202005

MARK-37220 OR -37390

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90385-19011iXZU600..GCC;WU600,650,XZU650201107-202005

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-37030iXZU600..GCC;WU600,650,XZU650201107-202005

9010516067

main90105-16067

9011912088

main90119-12088

9017816004

main90178-16004

9017816007

main90178-16007

9017912016

main90179-12016

9020116035

main90201-16035

91651B0820

main91651-B0820

23 parts on this diagram · 5 diagrams in section
