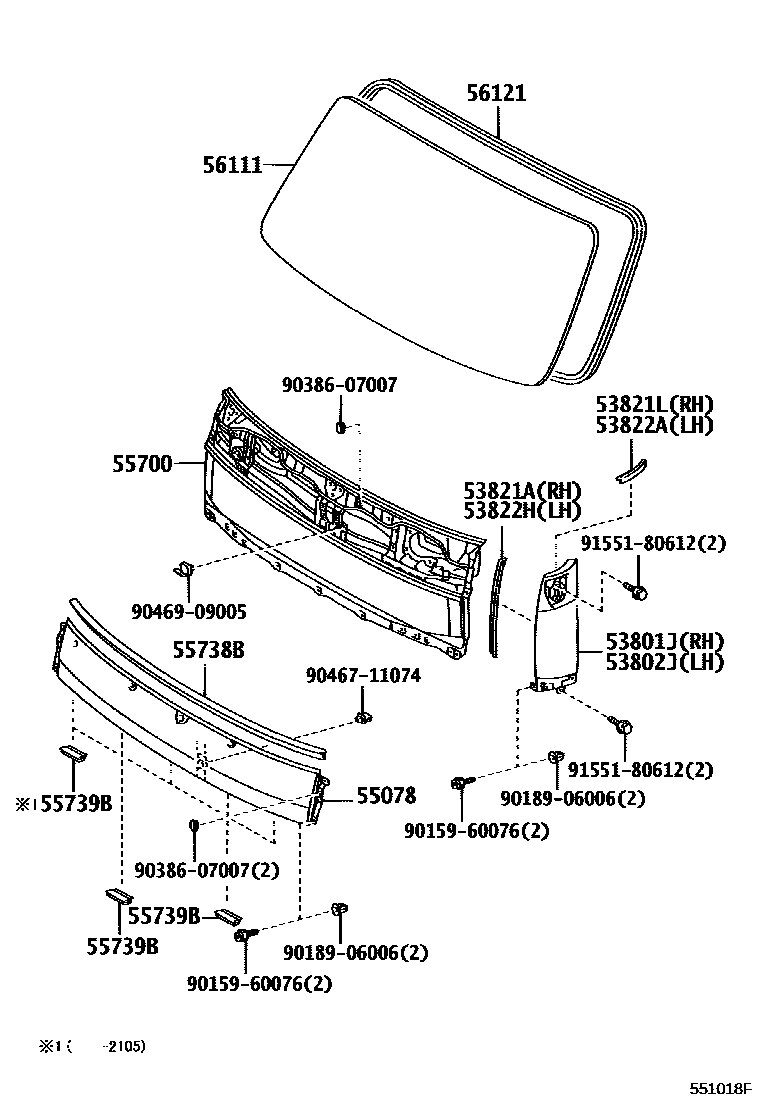

Toyota DYNA — FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-0W010iWU302,342,352..DCRTP,DCRTR200912

main53801-37021iWU30#,34#..GCC,GEN200610-201106

main53801-37050iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main53801-37061iBU300,340200212-200312

main53801-F1010iXZU349..5F;XZU309,359..IV8202203-202310

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-0W010iWU302,342,352..DCRTP,DCRTR200912

main53802-37021iXZU307,327,337,347200610-200901

main53802-37050iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main53802-37061iBU300,340200212-200312

main53802-F1010iXZU349..6F;XZU309..IV3202203

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main53821-37070iXZU307,327,337,347200610-200901

main53821-F1010iXZU349..5F;XZU309,359..IV8202203-202310

53821LPROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-0W020iBU303,343,WU300,340,XZU342..IDN200209-200612

main53821-0W030iWU302,342..(DCRTH,DCRTJ)..IDN200903-201005

main53821-0W031iWU302,342,352..DCRTP,DCRTR200912

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-0W020iBU303,343,WU300,340,XZU342..IDN200209-200612

main53821-0W030iWU302,342..(DCRTH,DCRTJ)..IDN200903-201005

main53821-0W031iXZU349..5F;XZU309,359..IV8202203-202310

main53821-37070iWU300,340..SA200212-200802

53822HPROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-F1010iXZU349..6F;XZU309..IV3202203

main53822-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

55078COVER SUB-ASSY, FRONT PANEL

main55078-37070iXZU307,327,337,347200610-200901

main55078-37100iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main55078-F1010iXZU349..5F;XZU309,359..IV8202203-202310

55700PANEL ASSY, FRONT

main55700-37110iBU30#,34#,WU300,340..RHD..(ARL,GEN,SA)200212-200312

main55700-37111iWU340..RHD..CBU200610-200801

main55700-37120iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

main55700-37190iWU302,342..IDN200612-200902

main55700-37191iWU302,342..(DCRTH,DCRTJ)..IDN200903-201005

main55700-37310iWU340..RHD..CBU200801-201106

main55700-F1010iXZU349..6F;XZU309..IV3202203

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main55738-0W011iXZU349..5F;XZU309,359..IV8202203-202310

main55738-37050iBU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW200212-200309

main55738-37051iWU300,340..SA200309-200802

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-0W010×5iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main55739-37070×2iBU300,340200212-200312

56111GLASS, WINDSHIELD

main56111-0W570iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

*LAM,T=5.76,GREEN

main56111-0W700iWU302,342,352..DCRTP,DCRTR200912

*LAM,T=5.16,GREEN

main56111-37120iXZU307,327,337,347200610-200901

*LAM,T=5.76,GREEN

56121WEATHERSTRIP, WINDSHIELD

main56121-0W010iWU302,342,352..DCRTP,DCRTR200912

main56121-25040iWU300,340..SA200708-200812

main56121-37030iBU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW200212-200312

main56121-37031iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200312-200610

9015960076

main90159-60076

9018906006

main90189-06006

9038607007

main90386-07007

9046711074

main90467-11074

9046909005

main90469-09005

9155180612

main91551-80612

18 parts on this diagram · 2 diagrams in section
