Toyota DYNA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

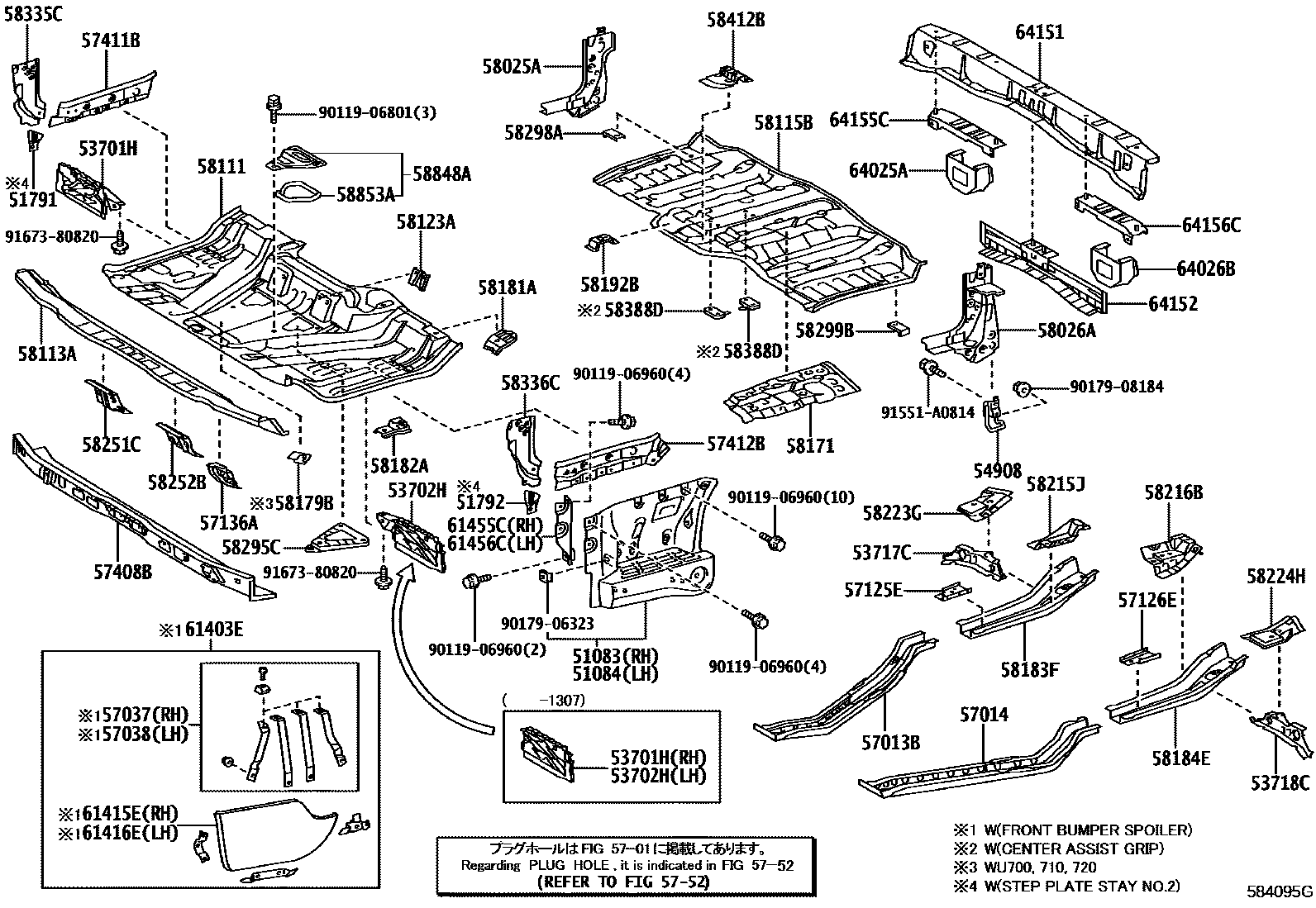

Parts diagram

51083STEP SUB-ASSY, RH

main51083-37050i201107-201212

main51083-37051i201212-201310

main51083-37052i201311-202005

51084STEP SUB-ASSY, LH

main51084-37040i201107-201212

main51084-37041i201212-201310

main51084-37042i201311-202005

51791STAY, STEP

main51787-37030i201302-202005

51792STAY, STEP PLATE, NO.2

main51788-37030i201302-202005

53701HAPRON SUB-ASSY, FRONT FENDER, RH

main53701-37050i201107-201307

main53701-37060i201308-202005

53702HAPRON SUB-ASSY, FENDER, LH

main53702-37040i201107-201307

main53702-37070i201308-202005

53717CAPRON, FRPNT FENDER, NO.2 RH

main53717-37190i201107-202005

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37150i201107-202005

54908BRACKET SUB-ASSY, TILT CAB GRIP

main54908-37050i201107-202005

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-37290i201107-201307

main57013-37291i201308-202005

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-37200i201107-201307

main57014-37201i201308-202005

57037STAY SUB-ASSY, FRONT STEP, RH

main57037-37030

57038STAY SUB-ASSY, FRONT STEP, LH

main57038-37050

57125EREINFORCEMENT, FRONT SIDE MEMBER, RH

main57125-37040i201107-202005

57126EREINFORCEMENT, FRONT SIDE MEMBER, LH

main57126-37030i201107-202005

57136ABRACKET, FRONT FLOOR SIDE, LH

main57136-37030i201107-202005

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-37500i201107-202005

57411BMEMBER, FLOOR SIDE, INNER RH

main57411-37050i201107-202005

57412BMEMBER, FLOOR SIDE, INNER LH

main57412-37060i201107-202005

5752HOLE PLUG

→ Go to FIG 57-52

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58043-37110i201108-201409

main58043-37111i201409-202005

main58043-37130i201107-202005

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58044-37110i201107-202005

main58044-37120i201108-201409

main58044-37121i201409-202005

58111PAN, FRONT FLOOR

main58111-37870i201107-202005

main58111-37880i201107-202005

main58111-37890i201107-202005

main58111-37A00i201306-201512

main58111-37A10i201108-202005

58113APANEL, FRONT FLOOR, CENTER

main58113-37070i201107-202005

main58113-37080i201107-202005

58115BPANEL, FRONT FLOOR, REAR

main58115-37230i201107-201301

main58115-37231i201302-202005

main58115-37280i201107-201304

main58115-37281i201305-202005

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-37060i201107-202005

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-37090i201107-201301

main58171-37091i201302-202005

main58171-37110i201107-202005

58179BBRACKET, ACCELERATOR CABLE CLAMP

main58179-37010i201107-202005

58181ARETAINER, SEAT RAIL, FRONT

main58181-37090i201107-202005

58182ARETAINER, SEAT RAIL, NO.2

main58182-37030i201107-202005

main58182-37040i201107-202005

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-37090i201107-202005

main58183-37100i201108-202005

58184EREINFORCEMENT, REAR MOUNTING, LH

main58183-37090i201107-202005

main58183-37100i201108-202005

58192BPLATE, FRONT FLOOR, REAR

main58192-37050i201107-202005

58215JBRACKET, REAR SEAT MOUNTING, RH

main58215-37050i201107-202005

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-37010i201107-202005

58223GREINFORCEMENT, SEAT SET, NO.1

main58223-37070i201107-201901

main58223-37071i201902-201904

main58223-37072i201905-202005

58224HREINFORCEMENT, SEAT SET, NO.2

main58224-37040i201107-201301

main58224-37041i201302-201901

main58224-37042i201902-201904

main58224-37043i201905-202005

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-37130i201107-202005

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37090i201107-202005

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-37110i201107-202005

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37030i201107-202005

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58298-37030i201107-202005

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37060i201107-202005

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37080i201107-201707

main58336-37081i201708-202005

58388DBRACKET, PLATE FRONT FLOOR

58412BREINFORCEMENT, ENGINE SUB COVER

main58412-37120i201107-202005

main58412-37140i201107-202005

58848ACOVER, SHIFT LEVER HOLE

main58840-37030i201107-202005

main58840-37040i201107-202005

58853APACKING, SHIFT LEVER HOLE

main58853-37030i201107-202005

61403EPANEL SUB-ASSY, FRONT STEP

61415EPANEL, FRONT STEP UNDER, RH

61416EPANEL, FRONT STEP UNDER, LH

61455CRETAINER, FRONT STEP, RH

main61455-37020i201107-202005

61456CRETAINER, FRONT STEP, LH

main61456-37020i201107-202005

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64171-37120i201107-202005

main64171-37130i201108-202005

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64172-37080i201107-202005

main64172-37090i201108-202005

64151FRAME, BACK

main64151-37520i201107-201304

main64151-37540i201107-201304

main64151-37550i201108-202005

main64151-37580i201304-202005

main64151-37590i201304-202410

main64151-37591i202411

64152FRAME, BACK, LOWER

main64106-37040i201107-202005

main64106-37050i201108-202005

main64106-37060i201107-202005

64155CPLATE, BACK FRAME, RH

main64155-37070i201107-202005

main64155-37080i201107-201304

main64155-37090i201304-202005

64156CPLATE, BACK FRAME, LH

main64156-37090i201107-201304

main64156-37110i201107-202005

main64156-37140i201304-202005

9011906801

main90119-06801

9011906960

main90119-06960

9017906323

main90179-06323

9017908184

main90179-08184

91551A0814

main91551-A0814

9167380820

main91673-80820

65 parts on this diagram · 6 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA

This section contains 117 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA. Key components include: STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, BRACKET, ENGINE SIDE COVER, CLIP, STEP PLATE COVER, COVER, STEP PLATE, RH.
