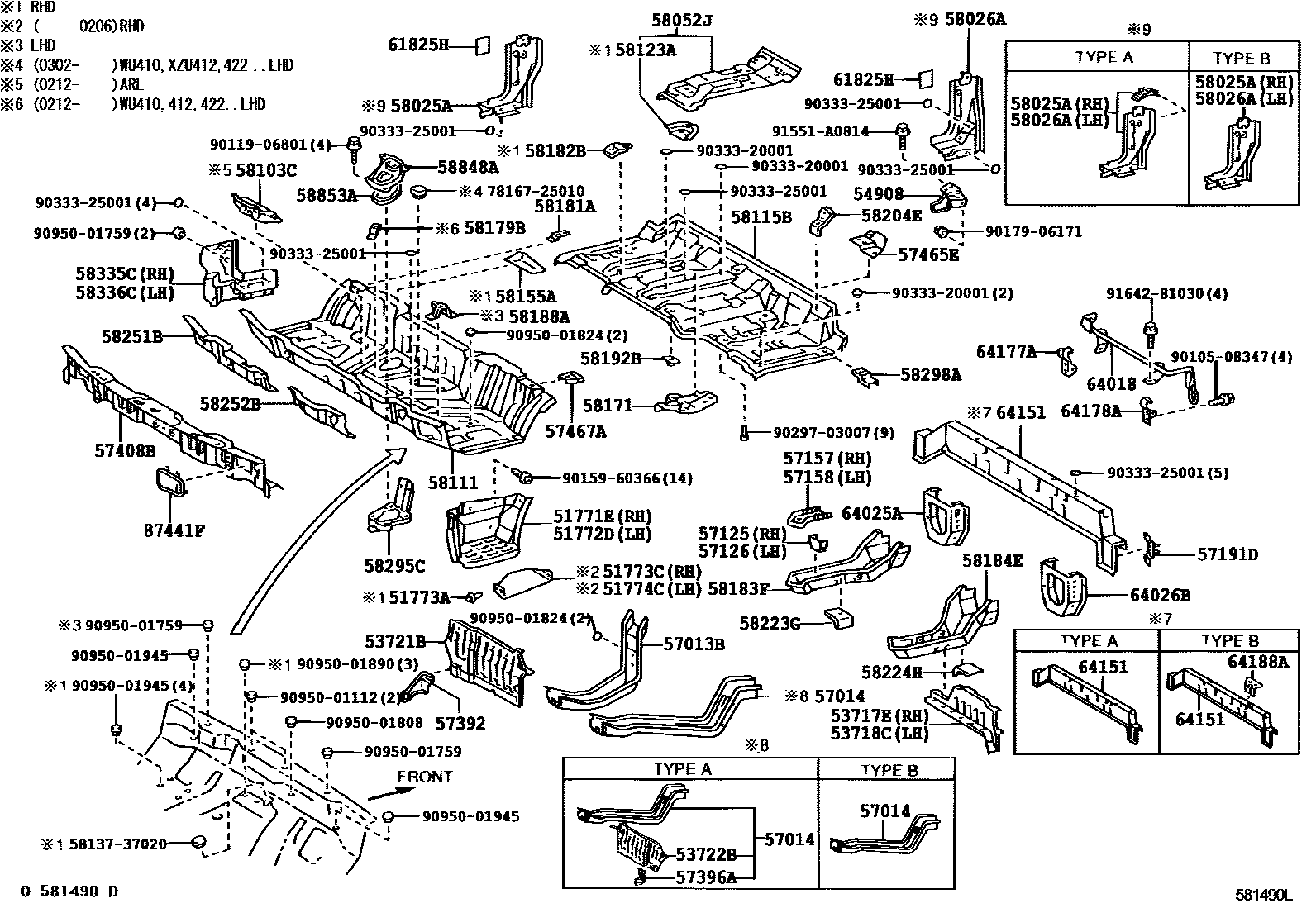

Toyota DYNA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0003 1CKD PACKAGE 0005 1 0007 1 0008 1

51771EPLATE, STEP, RH

main51771-37110iWU410,420,XZU404,41#,42#,43#200110-200312

main51771-37220iXZU414,424,434..EUR200312-200609

main51771-37240iWU410..75T..SA;XZU412,420,422,430200610-201208

51772DPLATE, STEP, LH

main51772-37090iWU410,420,XZU404,41#,42#,43#200110-200312

main51772-37140iXZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW200312-200609

main51772-37160iBU410,420200610-201208

51773ACLIP, STEP PLATE COVER

main90467-06133-C0iXZU404,414,424..GEN200110-200206

BLACK,TRIM1#

main90467-06133-C0iXZU419,429,439200908-201208

BLACK

51773CCOVER, STEP PLATE, RH

main51773-37030iXZU404,414,424..GEN200110-201208

51774CCOVER, STEP PLATE, LH

main51773-37030iXZU419,429,439200110-201208

53717EAPRON, FRONT FENDER, NO.2 RH

main53717-37180iXZU414,424,434..EUR200110-201208

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37140iBU410,420200110-201208

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37070iXZU414,424,434..EUR200110-201208

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37050iXZU414,424,434..EUR200110-201208

54908BRACKET SUB-ASSY, TILT CAB GRIP

main54908-37020iXZU414,424,434..EUR200110-201208

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-37150iWU410,420,XZU404,41#,42#,43#200110-200312

main57013-37240iBU410,420200312-201208

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-37070iXZU414,424,434..EUR200110-200802

TYPE B:REFER TO ILLUSTRATION

main57014-37070iBU410,420200304-201208

main57014-37090iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL200306-200610

TYPE A:REFER TO ILLUSTRATION

main57014-37090iWU410,XZU412,422..RHD..GEN..IV3200212-200310

CKD PACKAGE

57125BRACKET, FRONT SIDE MEMBER, RH

main57125-37010iXZU414,424,434..EUR200110-201208

57126BRACKET, FRONT SIDE MEMBER, LH

main57126-37020iXZU414,424,434..EUR200110-201208

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-37030iXZU414,424,434..EUR200110-201208

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-37030iBU410,420200110-201208

57191DBRACKET, FLOOR NO.1 CROSSMEMBER

main57191-37010iXZU414,424,434..EUR200110-201208

57392PLATE, FRONT STEP, NO.2 RH

main57392-37020iXZU414,424,434..EUR200110-201208

57396APLATE, FRONT STEP, NO.2 LH

main57396-37020iXZU414,424,434..EUR200110-201208

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-37301iXZU414,424,434..EUR200110-200307

main57408-37302iXZU412,422..6F200307-201106

main57408-37311iXZU404,414,424..GEN200110-200206

main57408-37312iWU410,420,XZU404,41#,42#,43#..RHD200306-200307

main57408-37313iWU410,XZU412,422..RHD..GEN..IV3200306-200307

CKD PACKAGE

main57408-37313iWU420;WU410..65T..SA200212-200802

main57408-37430iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

main57408-37510iXZU419,429,43#200903-201208

main57408-37510iWU41#,422,XZU413,423..LHD..GEN..IV3200903-201106

CKD PACKAGE

57465ERETAINER, BELT ANCHOR, NO.2

main57405-37060iWU420;WU410..65T..SA200110-201106

main57405-37080iXZU415,425,435200110-201208

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-37010iWU410,420,XZU404,41#,42#,43#200110-200312

main57467-37011iXZU414,424,434..EUR200312-201208

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58043-37070iXZU414,424,434..EUR200110-200802

TYPE A:REFER TO ILLUSTRATION

main58043-37070iWU410,XZU412,422..RHD..GEN..IV3200306-201106

main58043-37090iWU410,XZU412,414,422,424..LHD..5F200306-200708

TYPE B:REFER TO ILLUSTRATION

main58043-37090iXZU414,424,434..EUR200206-200802

CKD

main58043-37090iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58044-37080iBU410,420200110-201106

TYPE A:REFER TO ILLUSTRATION

main58044-37080iXZU413,415,417,419,423,425,427,429,435,439..LHD..6F..DCRTK200701-201208

main58044-37100iXZU404,414,424,434..ARL200306-201106

TYPE B:REFER TO ILLUSTRATION

main58044-37100iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200212-200610

CKD

main58044-37100iWU410,420,XZU423,433..SA200802-200812

58052JREINFORCEMENT SUB-ASSY, ENGINE SUB COVER

main58052-37010iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200306-201106

main58052-37030iXZU415,425,435200110-201208

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-37040iXZU404,414,424,434..ARL200212-200610

58111PAN, FRONT FLOOR

main58111-37330iXZU412,422..LHD..5F;BU410,420,WU410,XZU414,424..LHD..(GCC,GEN,TAIW)200110-200608

W(TACHOGRAPH)

main58111-37331iBU410,420200605-200701

W(TACHOGRAPH)

main58111-37331iXZU415,425,435200608-201208

main58111-37341iWU410,420,XZU404,41#,42#,43#..RHD200110-200604

main58111-37342iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200605-201106

main58111-37361iXZU404,414,424,434..ARL200212-200604

W(AIR BAG)

main58111-37362iXZU404,414,424,434..ARL200605-200610

W(AIR BAG)

main58111-37440iBU410,420,WU410,XZU41#,422,424..LHD..(GCC,GEN,TAIW)200306-200604

main58111-37441iWU41#,422,XZU413,417,423,427..LHD200605-201106

main58111-37550iXZU423,433..SA200802-200812

58115BPANEL, FRONT FLOOR, REAR

main58115-37041iXZU404,414,424..RHD..GEN200212-200310

main58115-37042iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200310-201106

main58115-37080iWU410,XZU41#,422,424..LHD..5F200110-200310

main58115-37081iWU410,XZU412,414,422,424..LHD..5F200310-200805

main58115-37150iWU41#,422,XZU41#,42#,435..LHD200805-200806

main58115-37151iWU41#,422,XZU41#,42#,435,439..LHD200807-201208

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-37010iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200306-201106

58155AINSULATOR, FRONT FLOOR HEAT, NO.3

main58155-37010iXZU404,414,424,434..RHD200110-200306

main58155-37030iXZU404,414,424,434..RHD200306-200610

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-37030iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200306-201106

main58107-37050iWU410,XZU412,414,422,424..LHD..5F200110-201208

58179BBRACKET, ACCELERATOR CABLE CLAMP

main58179-37010iWU410,XZU412,422..LHD..5F200306-201106

58181ARETAINER, SEAT RAIL, FRONT

main58181-37070iXZU414,424,434..EUR200110-201208

58182BRETAINER, SEAT RAIL, FRONT LH

main58182-37010iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200306-201106

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-37080iXZU404,414,424,434200110-200211

main58183-37081iXZU414,424,434..EUR200211-201208

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-37100iXZU404,414,424,434200110-200211

main58184-37101iXZU414,424,434..EUR200211-201208

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-37030iXZU414,424,434..EUR200110-201208

58192BPLATE, FRONT FLOOR, REAR

main58192-37020iXZU414,424,434..EUR200110-201208

58204EBRACKET SUB-ASSY, FRONT SEAT

main58204-37020iWU410,420,XZU420,430..SA200306-201106

main58204-37030iBU410,420200110-201208

58223GREINFORCEMENT, SEAT SET, NO.1

main58223-37030iWU410,XZU420,430..(75T,85T)..SA200110-201106

main58223-37040iXZU412,422..6F200110-201208

58224HREINFORCEMENT, SEAT SET, NO.2

main58224-37010iWU420;WU410..65T..SA200110-201106

main58224-37020iXZU415,425,435200110-201208

58251BBRACE, FLOOR PANEL, FRONT

main58251-37040iWU410,420,XZU404,41#,42#,43#..RHD200110-200604

main58251-37041iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200605-201106

main58251-37060iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200110-201208

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37040iBU410,420200110-201208

main58252-37050iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201106

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-37060iWU410,XZU420,430..(75T,85T)..SA200110-201106

main58295-37070iBU410,420200110-201208

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37010iXZU415,425,435200110-201208

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37040iXZU422..LHD..5F;XZU422..RHD..CBU;WU410,XZU412..CBU;WU410,XZU412..LHD..5F..IV3;XZU404,414,424,434..ARL,GEN200110-200807

main58335-37041iWU41#,42#,XZU41#,42#,43#200808-201208

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-25010iWU410,XZU412,422..RHD..GEN..IV3200310-200610

CKD PACKAGE

main58336-37031iWU410,XZU420,430..(75T,85T)..SA200110-201208

58848ACOVER, SHIFT LEVER HOLE

main58840-37010iWU410,XZU420,430..(75T,85T)..SA200110-201106

main58840-37020iXZU412,422..6F200110-201208

58853APACKING, SHIFT LEVER HOLE

main58853-37020iXZU414,424,434..EUR200110-201208

61825HPAD, NOISE SHUTTER, NO.2

main61825-34010iXZU415,425,435200110-201208

64018BAR SUB-ASSY, BODY

main64018-37100iWU410,XZU420,430..(75T,85T)..SA200110-201106

main64018-37110iWU410,XZU41#,422,424,434..LHD200110-200410

main64018-37111iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200411-201208

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64171-37010iXZU404,414,424,434200110-200212

main64171-37011iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200212-201208

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64172-37020iXZU404,414,424,434200110-200111

main64172-37021iWU410,420,XZU404,41#,42#,43#..RHD200111-200305

main64172-37022iWU420;WU410..65T..SA200212-201208

64151FRAME, BACK

main64151-37270iWU410,420,XZU404,412,414,420,422,424,430,434..RHD200110-200609

TYPE A:REFER TO ILLUSTRATION

main64151-37370iXZU414,424,434..EUR200110-200609

TYPE A:REFER TO ILLUSTRATION

main64151-37390iXZU404,414,424..ARL;WU410,420,XZU412,420,422,430,434..RHD200306-200609

TYPE B:REFER TO ILLUSTRATION

main64151-37410iWU410,XZU412,414,422,424..LHD..(GCC,GEN)200306-200609

TYPE B:REFER TO ILLUSTRATION

main64151-37440iBU410,420200610-201208

main64151-37470iWU41#,422,XZU413,423..LHD200610-201106

main64151-37490iWU410,420,XZU423,433..SA200802-200812

main64151-37490iWU410,XZU420,430..(75T,85T)..SA200610-201106

CKD PACKAGE

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-37030iBU410,420,WU410,420,XZU404,41#,42#,43#200110-200603

main64177-37031iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200604-201208

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-37030iBU410,420,WU410,420,XZU404,41#,42#,43#200110-200603

main64178-37031iXZU414,424,434..EUR200604-201208

64188ABRACKET, SEAT SET FRAME

main64188-37050iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)200306-201106

87441FFILTER, HEATER AIR

main87441-37010iWU420;WU410..65T..SA200110-201106

main87441-37020iXZU412,422..6F200110-201208

5813737020BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4

main58137-37020

7816725010PACKING, ACCELERATOR PEDAL HINGE

main78167-25010

9010508347

main90105-08347

9011906801

main90119-06801

9015960366

main90159-60366

9017906171

main90179-06171

9029703007

main90297-03007

9033320001

main90333-20001

9033325001

main90333-25001

9095001112

main90950-01112

9095001759

main90950-01759

9095001808

main90950-01808

9095001824

main90950-01824

9095001890

main90950-01890

9095001945

main90950-01945

91551A0814

main91551-A0814

9164281030

main91642-81030

75 parts on this diagram · 5 diagrams in section
