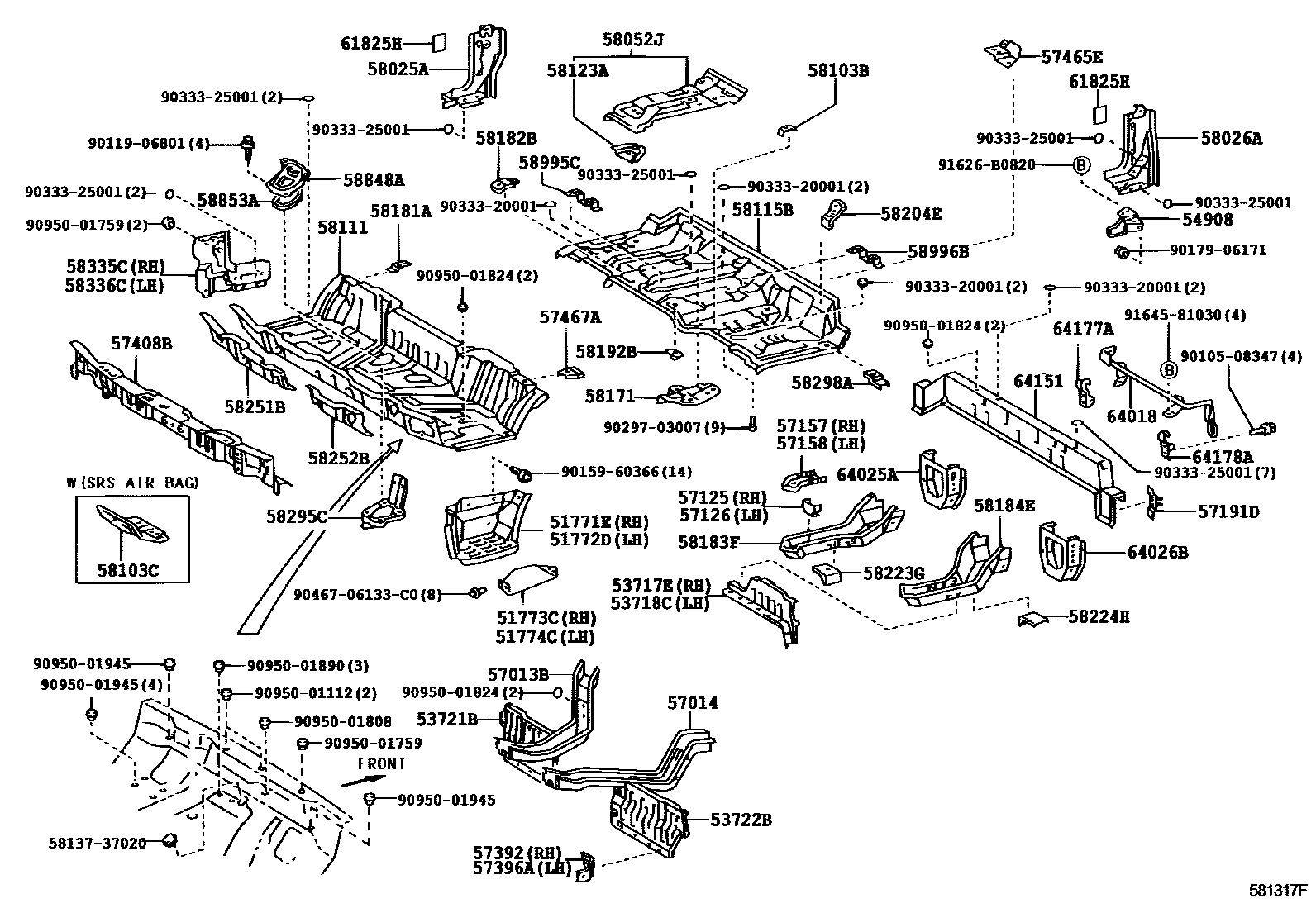

Toyota DYNA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51771EPLATE, STEP, RH
sub51771-37111
51772DPLATE, STEP, LH
sub51772-37091
51773CCOVER, STEP PLATE, RH
51774CCOVER, STEP PLATE, LH
53717EAPRON, FRONT FENDER, NO.2 RH
53718CAPRON, FRONT FENDER, NO.2 LH
53721BAPRON SUB-ASSY, FENDER SIDE, RH
53722BAPRON SUB-ASSY, FENDER SIDE, LH
54908BRACKET SUB-ASSY, TILT CAB GRIP
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
57125BRACKET, FRONT SIDE MEMBER, RH
57126BRACKET, FRONT SIDE MEMBER, LH
57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57191DBRACKET, FLOOR NO.1 CROSSMEMBER
57392PLATE, FRONT STEP, NO.2 RH
57396APLATE, FRONT STEP, NO.2 LH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
sub57408-37312
57465ERETAINER, BELT ANCHOR, NO.2
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
sub57467-37011
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58052JREINFORCEMENT SUB-ASSY, ENGINE SUB COVER
58103BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH
58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT
58111PAN, FRONT FLOOR
W(SRS AIR BAG)
58115BPANEL, FRONT FLOOR, REAR
W(FRONT SEAT=02S)
W(FRONT SEAT=03S)
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58181ARETAINER, SEAT RAIL, FRONT
58182BRETAINER, SEAT RAIL, FRONT LH
58183FREINFORCEMENT, REAR MOUNTING, RH
sub58183-37081
58184EREINFORCEMENT, REAR MOUNTING, LH
sub58184-37101
58192BPLATE, FRONT FLOOR, REAR
58204EBRACKET SUB-ASSY, FRONT SEAT
58223GREINFORCEMENT, SEAT SET, NO.1
58224HREINFORCEMENT, SEAT SET, NO.2
58251BBRACE, FLOOR PANEL, FRONT
sub58251-37041
58252BBRACE, FLOOR PANEL, FRONT LH
58295CBRACKET, FLOOR SHIFT LEVER, NO.1
58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58335CPLATE, FLOOR SIDE, FRONT RH
sub58335-37041
58848ACOVER, SHIFT LEVER HOLE
58853APACKING, SHIFT LEVER HOLE
58995CBRACKET, CONSOLE BOX MOUNTING, NO.1
58996BBRACKET, CONSOLE BOX MOUNTING, NO.2
61825HPAD, NOISE SHUTTER, NO.2
64018BAR SUB-ASSY, BODY
64025ABRACKET SUB-ASSY, REAR MOUNTING, RH
sub64171-37011
64151FRAME, BACK
64177ASTOPPER, REAR MOUNTING BRACKET, RH
sub64177-37031
64178ASTOPPER, REAR MOUNTING BRACKET, LH
sub64178-37031
5813737020BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4
main58137-37020
9010508347
main90105-08347
9011906801
main90119-06801
9015960366
main90159-60366
9017906171
main90179-06171
9029703007
main90297-03007
9033320001
main90333-20001
9033325001
main90333-25001
9046706133C0
main90467-06133C0
9095001112
main90950-01112
9095001759
main90950-01759
9095001808
main90950-01808
9095001824
main90950-01824
9095001890
main90950-01890
9095001945
main90950-01945
91626B0820
main91626-B0820
9164581030
main91645-81030
72 parts on this diagram · 2 diagrams in section
