Toyota DYNA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

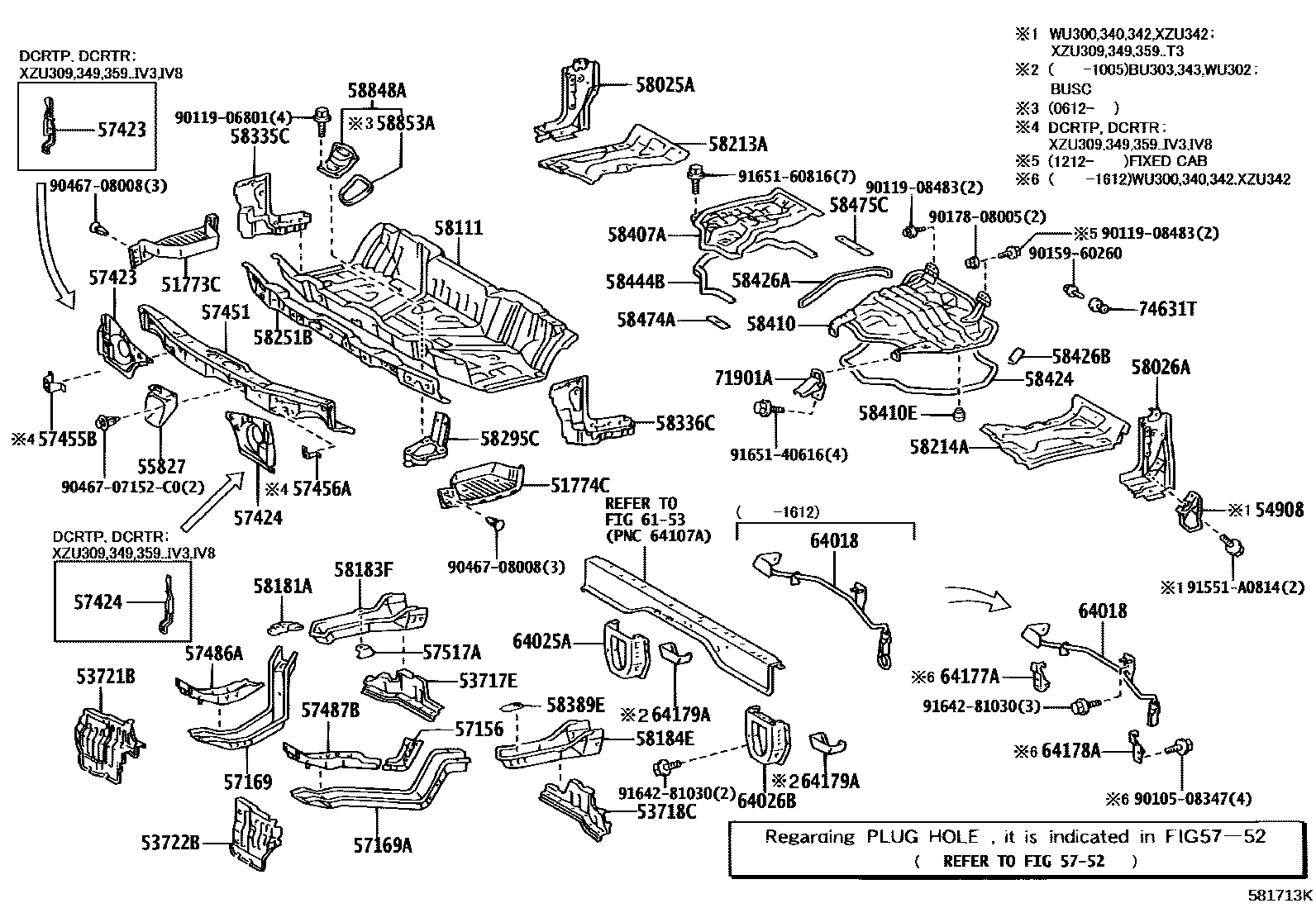

Parts diagram
51773CCOVER, STEP PLATE, RH
main51773-0W020i200209-202310
NO PAINT REQ.
51774CCOVER, STEP PLATE, LH
main51774-0W020i200209-202310
NO PAINT REQ.
53717EAPRON, FRONT FENDER, NO.2 RH
main53717-0W020i200903-202310
main53717-37130i200306-201106
main53717-37170i200209-200902
53718CAPRON, FRONT FENDER, NO.2 LH
main53718-0W030i200903-202310
main53718-37110i200306-201106
main53718-37130i200209-200902
53721BAPRON SUB-ASSY, FENDER SIDE, RH
main53721-0W010i200912-202310
main53721-37052i200212-200901
TYPE A:REFER TO ILLUSTRATION
main53721-37090i200209-201005
53722BAPRON SUB-ASSY, FENDER SIDE, LH
main53702-37031i200306-201007
main53702-37032i201008-201106
main53722-37031i200306-201007
main53722-37032i201008-201106
main53722-37060i200209-202310
54908BRACKET SUB-ASSY, TILT CAB GRIP
main54908-0W020i200512-202310
main54908-37010i200209-201106
55827DUCT, VENTILATOR AIR GUIDE
main55827-0W010i200209-201104
main55827-0W020i201105
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
main57156-0W020i201010-202310
main57156-37020i200209-201010
main57156-37021i201009-201106
57169MEMBER, FRONT FLOOR, FRONT RH
main57169-0W010i200604-202310
main57169-37080i200209-200308
main57169-37081i200307-201106
57169AMEMBER, FRONT FLOOR, FRONT LH
main57179-0W010i200604-202310
main57179-37070i200209-201106
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
main57423-0W100i200912-202310
main57423-37030i200209-201005
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
main57424-0W010i200912-202310
main57424-37030i200209-201005
57451MEMBER, FRONT FLOOR CROSS
main57451-0W010i200912-202012
main57451-0W011i202101
main57451-37250i200209-200604
main57451-37251i200605-200911
main57451-37252i200912-201005
main57451-F1010i202203-202310
57455BGUSSET, FRONT FLOOR CROSSMEMBER, RH
main57455-0W010i200912-202310
57456AGUSSET, FRONT FLOOR CROSSMEMBER, LH
main57456-0W011i200912-202310
57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
main57486-0W010i200604-202310
main57486-37011i200209-200603
main57486-37050i200312-201106
57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
main57487-0W010i200604-200908
main57487-0W011i200909-202310
main57487-37011i200209-201106
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
main57517-0W010i200503-202310
main57517-37010i200209-200312
main57517-37011i200310-201106
main57517-37020i200306-200312
main57517-37021i200312-201106
5752HOLE PLUG
→ Go to FIG 57-52
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
main58043-0W010i200904-202310
main58043-37040i200209-200903
main58043-37060i200212-201106
TYPE A:REFER TO ILLUSTRATION
main58043-37060i200212-200812
main58043-37080i200306-201106
TYPE B:REFER TO ILLUSTRATION
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
main58044-0W010i200904-202310
main58044-37050i200209-200903
main58044-37070i200610-200901
main58044-37070i200212-201106
TYPE A:REFER TO ILLUSTRATION
main58044-37090i200306-201106
TYPE B:REFER TO ILLUSTRATION
58111PAN, FRONT FLOOR
main58111-0W010i200912-202012
main58111-0W011i202101
main58111-37171i200306-200307
W(SRS AIR BAG)
main58111-37172i200307-200409
W(SRS AIR BAG)
main58111-37173i200410-200604
W(SRS AIR BAG)
main58111-37174i200605-200610
W(SRS AIR BAG)
main58111-37262i200306-200307
main58111-37263i200307-200604
main58111-37264i200605-201007
main58111-37265i201008-201011
main58111-37266i201012-201106
main58111-37301i200306-200307
main58111-37302i200307-200409
main58111-37303i200410-200604
main58111-37304i200605-200705
main58111-37305i200706-201007
main58111-37306i201008-201011
main58111-37307i201012-201106
main58111-37430i200209-200911
main58111-37431i200912-201005
main58111-F1010i202203-202310
58181ARETAINER, SEAT RAIL, FRONT
main58181-0W010i200503-202310
main58181-37030i200209-201106
main58181-37050i200306-201106
58183FREINFORCEMENT, REAR MOUNTING, RH
main58183-0W010i200408-202310
main58183-0W020i200408-202310
main58183-25021i200209-200212
main58183-37060i200209-200212
main58183-37061i200212-201011
main58183-37062i201011-201106
main58183-37071i200212-200408
58184EREINFORCEMENT, REAR MOUNTING, LH
main58184-0W010i200408-200612
main58184-0W011i200612-202310
main58184-0W020i200408-200612
main58184-0W021i200612-202310
main58184-37072i200209-200212
main58184-37073i200212-201106
main58184-37092i200209-200212
main58184-37093i200212-200408
58213APANEL, SEAT FLOOR, RH
main58201-37100i200306-200901
main58201-37160i200209-202310
main58201-37170i200812-201106
58214APANEL, SEAT FLOOR, LH
main58202-37080i200306-201106
main58202-37110i200209-202310
58251BBRACE, FLOOR PANEL, FRONT
main58251-0W010i200912-201008
main58251-0W011i201009-202012
main58251-0W012i202101
main58251-37031i200306-200604
main58251-37032i200605-201106
main58251-37080i200209-200911
main58251-37081i200912-201005
main58251-37090i200306-201106
main58251-F1010i202203-202310
58295CBRACKET, FLOOR SHIFT LEVER, NO.1
main58295-37060i200209-202310
main58295-37070i200306-201106
58335CPLATE, FLOOR SIDE, FRONT RH
main58335-0W010i200912-201006
main58335-0W011i201007-202310
main58335-37040i200306-200807
main58335-37041i200808-201106
main58335-37050i200209-200911
58336CPLATE, FLOOR SIDE, FRONT LH
main58012-37110i200209-202310
main58336-37031i200306-201106
58389EBRACKET, HEATER HOSE CLAMP, NO.2
main58389-95A00i200209-200612
58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB
main58407-0W010i200901-201005
main58407-37110i200212-200604
main58407-37111i200605-201004
main58407-37112i201005-201106
main58407-37140i200209-200812
main58407-F1010i202203-202310
58410COVER, ENGINE SERVICE HOLE
main59208-37171i200212-201004
main59208-37172i201005-201106
main59208-37270i200209-201005
main59208-F1010i202203-202310
58410ECUSHION, NO.3
main90541-09046i200209-202310
58424PACKING, ENGINE SERVICE HOLE COVER, NO.1
main58424-0W010i200912-202310
main58424-37020i200212-200309
main58424-37021i200309-201106
main58424-37030i200209-201005
58426APROTECTOR, ENGINE SERVICE HOLE
main58426-0W010i200209-202310
58426BPROTECTOR, ENGINE SUB COVER
main58426-0W020i200209-202310
main58426-95405i200212-201106
58444BPACKING, ENGINE SUB COVER
main58444-37030i200209-202310
58474APACKING, ENGINE SUB COVER, NO.2
main58474-0W010i200209-202310
main58474-37010i200212-201106
58475CPACKING, ENGIN SUB COVER, NO.3
main58475-0W010i200209-202310
main58475-37030i200212-201106
58848ACOVER, SHIFT LEVER HOLE
main58840-0W010i200904-202310
main58840-37010i200209-201106
main58840-37020i200212-201106
58853APACKING, SHIFT LEVER HOLE
main58853-0W010i200904-202310
main58853-37020i200212-201106
6153ROOF PANEL & BACK PANEL
→ Go to FIG 61-53
64018BAR SUB-ASSY, BODY
main64018-0W010i200209-201005
main64018-0W020i200209-201005
main64018-0W021i200912-201612
main64018-37070i200212-200811
main64018-37071i200811-201106
main64018-37080i200212-200605
main64018-37081i200606-201106
main64018-F1010i201612-202310
64025ABRACKET SUB-ASSY, REAR MOUNTING, RH
main64025-37100i200209-200408
main64025-37150i200408-202310
main64171-37010i200209-200212
main64171-37011i200212-201106
main64171-37100i200408-202310
64026BBRACKET SUB-ASSY, REAR MOUNTING, LH
main64026-0W010i200912-202310
main64026-37090i200306-201106
main64026-37170i200209-201005
main64026-37180i200209-201005
main64026-F1010i201708-202310
main64172-37022i200312-200610
64177ASTOPPER, REAR MOUNTING BRACKET, RH
main64177-0W010i200209-201612
main64177-37030i200212-200603
main64177-37031i200604-201106
64178ASTOPPER, REAR MOUNTING BRACKET, LH
main64178-0W010i200209-201612
main64178-37030i200212-200603
main64178-37031i200604-201106
64179APATCH, REAR MOUNTING BRACKET
main64179-0W010i200209-202310
LH
main64179-0W020i200503-202310
RH
main64179-37030i200209-200502
RH
71901ACATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT
main71902-0W010i200612-202310
main71902-37010i200209-201106
74631THOOK, COAT
main74631-12060-B5i200209-201005
MD.CHARCOAL,TRIM1#
main74631-12060-B5i202203-202310
MD.CHARCOAL,TRIM4#
9010508347
main90105-08347
9011906801
main90119-06801
9011908483
main90119-08483
9015960260
main90159-60260
9017808005
main90178-08005
9046707152C0
main90467-07152C0
9046708008
main90467-08008
91551A0814
main91551-A0814
9164281030
main91642-81030
9165140616
main91651-40616
9165160816
main91651-60816

64 parts on this diagram · 7 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA

This section contains 132 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA. Key components include: PLATE, STEP, RH, PLATE, STEP, LH, COVER, STEP PLATE, RH, COVER, STEP PLATE, LH, MUDGUARD SUB-ASSY, FRONT.
