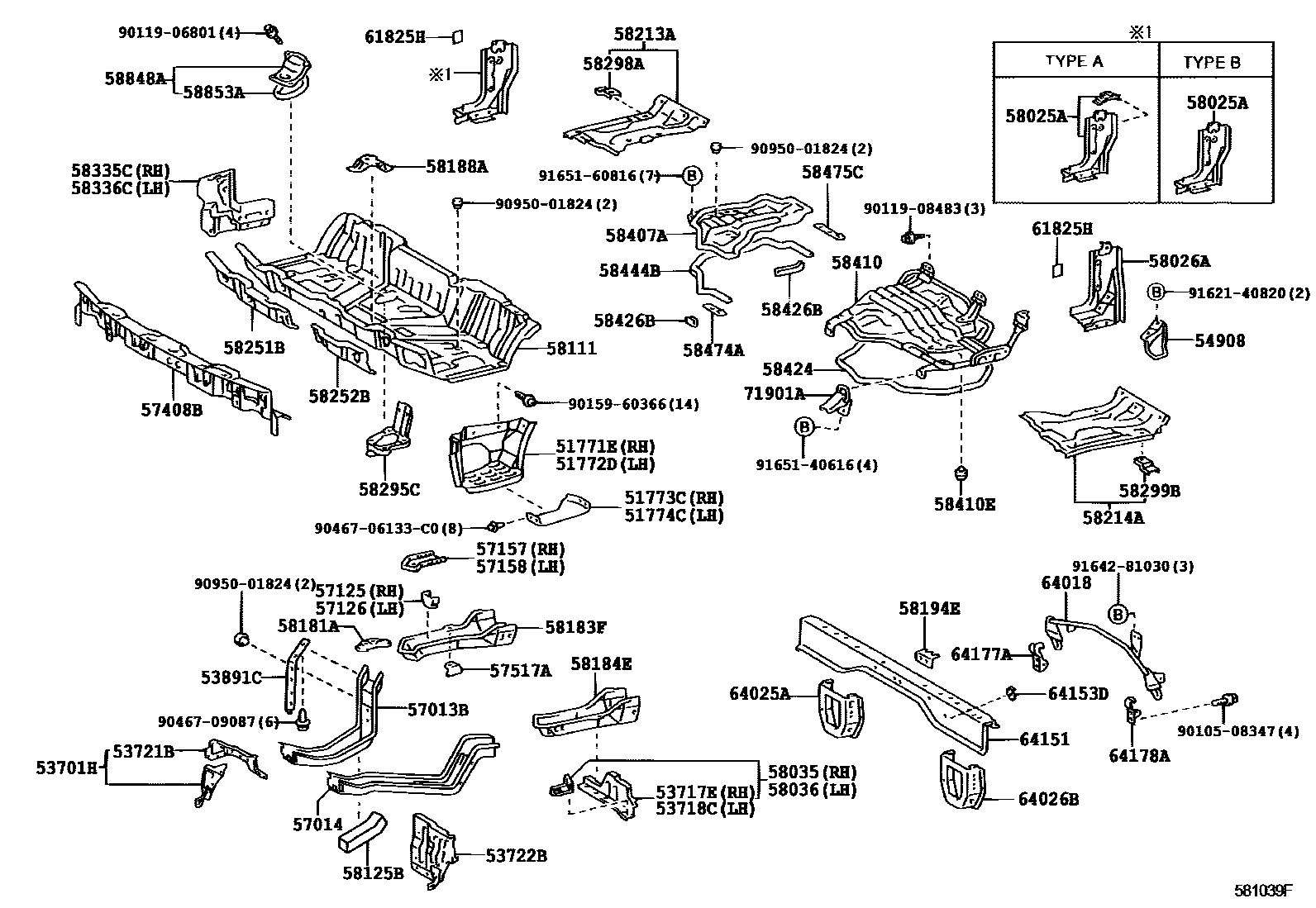

Toyota DYNA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51771EPLATE, STEP, RH
51772DPLATE, STEP, LH
51773CCOVER, STEP PLATE, RH
51774CCOVER, STEP PLATE, LH
53701HAPRON SUB-ASSY, FRONT FENDER, RH
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER ILLUST.
53717EAPRON, FRONT FENDER, NO.2 RH
53718CAPRON, FRONT FENDER, NO.2 LH
53721BAPRON SUB-ASSY, FENDER SIDE, RH
53722BAPRON SUB-ASSY, FENDER SIDE, LH
53891CSEAL, FRONT FENDER SPLASH SHEILD, FRONT
54908BRACKET SUB-ASSY, TILT CAB GRIP
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
57125BRACKET, FRONT SIDE MEMBER, RH
57126BRACKET, FRONT SIDE MEMBER, LH
57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58035PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58036PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58111PAN, FRONT FLOOR
W(SRS AIR BAG)
58125BSEAL, FRONT FLOOR TO FRAME
58181ARETAINER, SEAT RAIL, FRONT
58183FREINFORCEMENT, REAR MOUNTING, RH
58184EREINFORCEMENT, REAR MOUNTING, LH
58188ABRACKET, ACCELERATOR PEDAL STOPPER
58194ERETAINER, ENGINE COVER HINGE
58213APANEL, SEAT FLOOR, RH
58214APANEL, SEAT FLOOR, LH
58251BBRACE, FLOOR PANEL, FRONT
58252BBRACE, FLOOR PANEL, FRONT LH
58295CBRACKET, FLOOR SHIFT LEVER, NO.1
58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH
58335CPLATE, FLOOR SIDE, FRONT RH
58336CPLATE, FLOOR SIDE, FRONT LH
58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB
58410COVER, ENGINE SERVICE HOLE
58410ECUSHION, NO.3
58424PACKING, ENGINE SERVICE HOLE COVER, NO.1
58426BPROTECTOR, ENGINE SUB COVER
58444BPACKING, ENGINE SUB COVER
58474APACKING, ENGINE SUB COVER, NO.2
58475CPACKING, ENGIN SUB COVER, NO.3
58848ACOVER, SHIFT LEVER HOLE
58853APACKING, SHIFT LEVER HOLE
61825HPAD, NOISE SHUTTER, NO.2
64018BAR SUB-ASSY, BODY
64025ABRACKET SUB-ASSY, REAR MOUNTING, RH
64026BBRACKET SUB-ASSY, REAR MOUNTING, LH
W(CONSOLE BOX = FOR 02S)
64151FRAME, BACK
64153DREINFORCEMENT, BACK FRAME
64177ASTOPPER, REAR MOUNTING BRACKET, RH
64178ASTOPPER, REAR MOUNTING BRACKET, LH
71901ACATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT
9010508347
main90105-08347
9011906801
main90119-06801
9011908483
main90119-08483
9015960366
main90159-60366
9046706133C0
main90467-06133C0
9046709087
main90467-09087
9095001824
main90950-01824
9162140820
main91621-40820
9164281030
main91642-81030
9165140616
main91651-40616
9165160816
main91651-60816
69 parts on this diagram · 4 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA
This section contains 111 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA. Key components include: PLATE, STEP, RH, PLATE, STEP, LH, COVER, STEP PLATE, RH, COVER, STEP PLATE, LH, MUDGUARD SUB-ASSY, FRONT.
