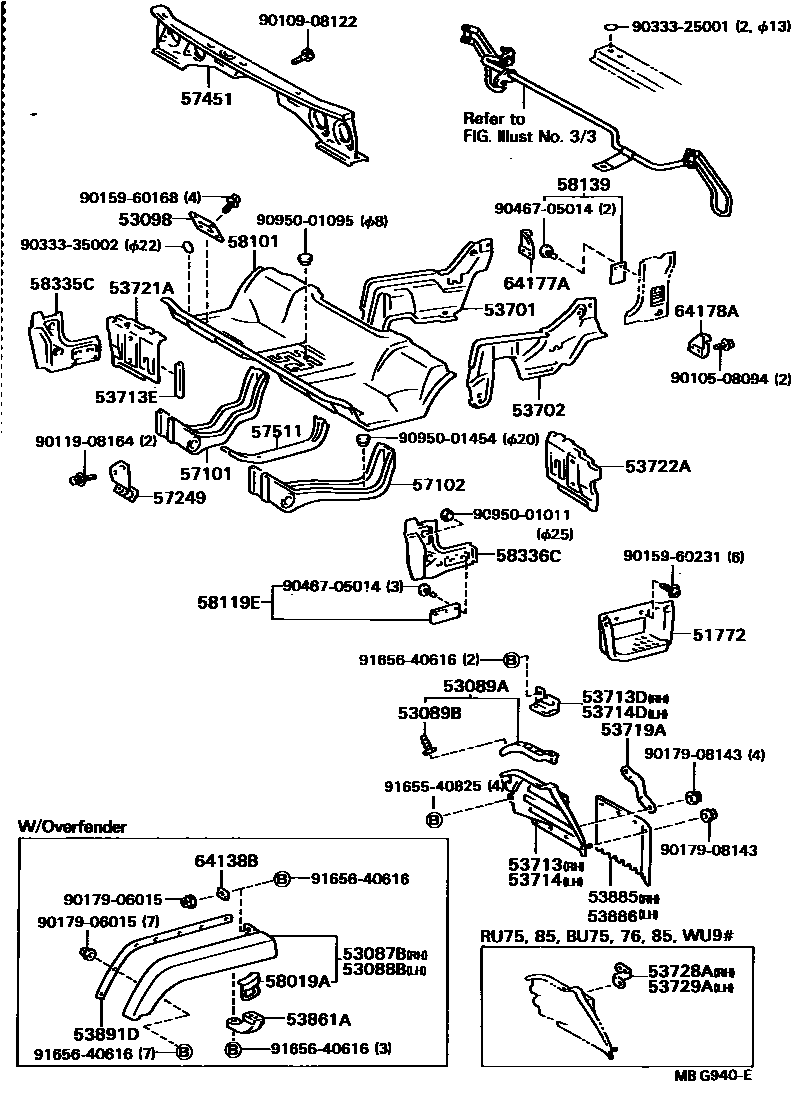

Toyota DYNA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51772PLATE, STEP

main51771-95406iBU6#,7#,8#198409-198708

RH

main51772-95406iBU6#,7#,8#198409-198708

LH

53087BEXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH

53088BEXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH

53089AMUDGUARD SUB-ASSY, FRONT

main53089-95400×2iBU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82198409-198708

53089BCLIP, FRONT MUDGUARD

main67868-95401×12iBU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82198409-198708

53098COVER SUB-ASSY, AIR CLEANER INLET HOLE

main53098-95402iBU60,61,62,80,81,82..T3198409-198508

53701APRON SUB-ASSY, FRONT FENDER, RH

main53711-95410iBU6#,70,80,81,82198409-198708

main53711-95411iBU75,76,85,86198409-198708

53702APRON SUB-ASSY, FRONT FENDER, LH

main53712-95414iBU60,61,62,80,81..LHD..(T1,T3)198409-198708

W/TILT CAB

sub90333-40001

main53712-95415iBU75,76,85,86198409-198708

main53712-95416iBU60,61,62,70,80,81..LHD198409-198708

53713APRON, FENDER SIDE, RH

main53707-92601iBU60..TW1198409-198608

main53707-92602iBU85,86..TW1198510-198708

main53707-92603iBU70198409-198708

sub53707-92607

main53715-92600iBU60..TW1198608-198708

main53715-95402iBU60..T1,T2,T3;BU61,62,63,65,80,81,82198409-198708

main53715-95403iBU75,76,85..T3..(CBU,IV3)198409-198708

main53715-95404iBU85..RHD..GEN..(IV1,IV3)198409-198708

W/O TILT CAB

53713DEXTENSION, FRONT FENDER APRON, RH

main53713-95406iBU6#,80,81,82198409-198708

sub53713-37010

53713EPROTECTOR(FOR FENDER SIDE APRON)

main58426-95700iBU61,81,82..RHD198409-198505

53714APRON, FENDER SIDE, LH

main53708-92601iBU60..TW1198409-198608

main53708-92602iBU85,86..TW1198510-198708

main53708-92603iBU70198409-198708

sub53708-92607

main53716-92600iBU60..TW1198608-198708

main53716-95402iBU60..T1,T2,T3;BU61,62,63,65,80,81,82198409-198708

main53716-95403iBU75,76,85..T3198409-198708

53714DEXTENSION, FRONT FENDER APRON, LH

main53714-95406iBU6#,80,81,82198409-198708

sub53714-37010

53719ABRACE, FENDER APRON

main53719-92600×2iBU70;BU60..TW1198409-198708

main53719-92603×2iBU85,86..TW1198510-198708

main53719-95403iBU60,61,62,63,80,81,82..GEN,GHD,SA198409-198708

W/O TILT CAB

53721AAPRON, FRONT FENDER, NO.2 RH

main53707-95400iBU75,76,85,86198409-198708

sub53707-37030

main53721-95402iBU6#,80,81,82..RHD198409-198708

sub53721-37010

main53721-95403iBU60,61,62,65,70,80,81..LHD198409-198708

sub53721-37030

53722AAPRON, FRONT FENDER, NO.2 LH

main53708-95400iBU75,76,85,86198409-198708

sub53708-37040

main53722-95403iBU6#,80,81,82..RHD198409-198708

sub53722-37020

main53722-95404iBU60,61,62,65,70,80,81..LHD198409-198708

sub53722-37010

53728ABRACKET, FENDER APRON, RH

main53728-95400iBU75,76,85..T3..(CBU,IV3)198409-198708

53729ABRACKET, FENDER APRON, LH

main53729-95400iBU75,76,85..T3..(CBU,IV3)198409-198708

53861ABRACKET, FRONT WHEEL OPENING, NO.1

53885MUDGUARD, FRONT RH

main53881-92601iBU85,86..TW1198510-198708

main53881-92604iBU70;BU60..TW1198409-198708

main53881-95400iBU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82198409-198701

main53881-95402iBU75,76,85..T3198701-198708

53886MUDGUARD, FRONT LH

main53881-92601iBU85,86..TW1198510-198708

main53881-92604iBU70;BU60..TW1198409-198708

main53881-95400iBU60..T1,T2,T3;BU61,62,63,65,80,81,82198701-198708

main53881-95402iBU75,76,85..T3198701-198708

53891DPACKING, FRONT WHEEL OPENING TRIM

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57011-95400iBU6#,70,80,81,82198409-198708

main57011-95401iBU75,76,85,86198409-198708

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57012-92602iBU70..V;BU60..TW1198409-198708

main57012-92603iBU85,86..TW1198510-198708

main57012-95400iBU65..CBU198508-198708

main57012-95401iBU75,76,85..T3198409-198708

main57012-95402iBU65..IV3198508-198708

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95400iBU6#,75,76,8#..RHD198409-198708

main57249-95401iBU60,61,62,65,7#,80,81,85..LHD198409-198708

57451MEMBER, FRONT FLOOR CROSS

main57408-95405iBU6#,80,81,82..RHD198409-198708

sub57408-95421

main57408-95406iBU60,61,62,65,70,80,81..LHD198409-198708

sub57408-95418

main57408-95407iBU75,76,85,86..RHD..(CBU,IV3)198409-198708

main57408-95408iBU75,76,85..LHD198409-198708

main57408-95409iBU60,61,63,80,81,82..RHD..(GEN,GHD,SA)198409-198708

W/AIR CONDITIONER

sub57408-95420

main57408-95410iBU60,61,62,70,80,81..LHD198409-198708

W/AIR CONDITIONER

sub57408-95416

main57408-95411iBU75,76,85,86..RHD..GEN198409-198708

W/AIR CONDITIONER

main57408-95412iBU75,76,85..LHD..GEN198409-198708

W/AIR CONDITIONER

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-95406iBU85..ARL198508-198708

main57511-95407iBU75,85..EUR198508-198708

58019ABRACKET SUB-ASSY, CAB TILT GRIP

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95434iBU60,61,63,80,81,82..RHD198409-198708

sub58101-95448

main58101-95435iBU60,61,62,65,70,80,81..LHD198409-198708

sub58101-95447

main58101-95436iBU62..ARL198510-198708

main58101-95438iBU75,76,85..LHD198409-198708

W/PTO

main58101-95439iBU75,85..EUR198409-198708

W/CTR HEAD LAMP & PTO

main58101-95441iBU75,76,85,86..RHD198409-198708

sub58101-95449

main58101-95442iBU75,76,85..LHD198409-198708

sub58101-95454

main58101-95445iBU75,85..EUR198409-198708

W/CTR HEADLAMP

sub58101-95453

main58101-95446iBU75,76,85,86..RHD..(CBU,IV3)198409-198708

W/PTO

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400×2iBU6#,7#,8#198409-198708

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iBU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82198409-198708

LH

main58139-95401iBU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82198409-198708

RH

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95401iBU6#,7#,8#198409-198708

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95401iBU6#,7#,8#198409-198708

64138BSEAL, FRONT WHEEL OPENING

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-95400iBU60,80..LHD..WT198510-198708

main64177-95401iBU85..LHD198409-198708

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-95402iBU60..ARL..IV3;BU61,62,63,65..ARL198409-198708

main64178-95403iBU85..LHD198409-198708

9010508094

main90105-08094

9010908122

main90109-08122

9011908164

main90119-08164

9015960168

main90159-60168

9015960231

main90159-60231

9017906015

main90179-06015

9017908143

main90179-08143

9033325001

main90333-25001

9033335002

main90333-35002

9046705014

main90467-05014

9095001011

main90950-01011

9095001095

main90950-01095

9095001454

main90950-01454

9165540825

main91655-40825

9165640616

main91656-40616

51 parts on this diagram · 4 diagrams in section
